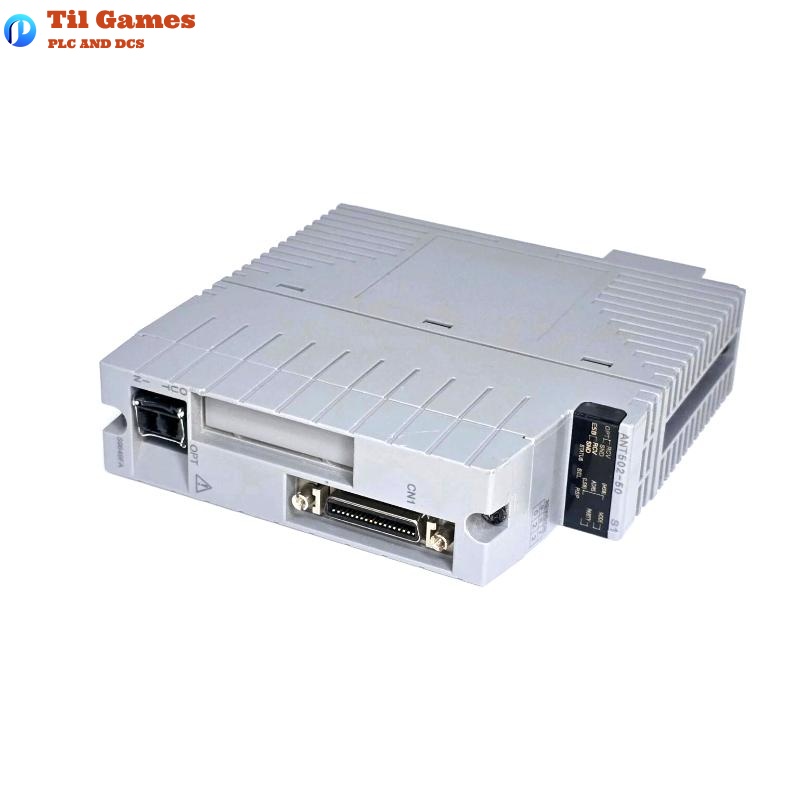

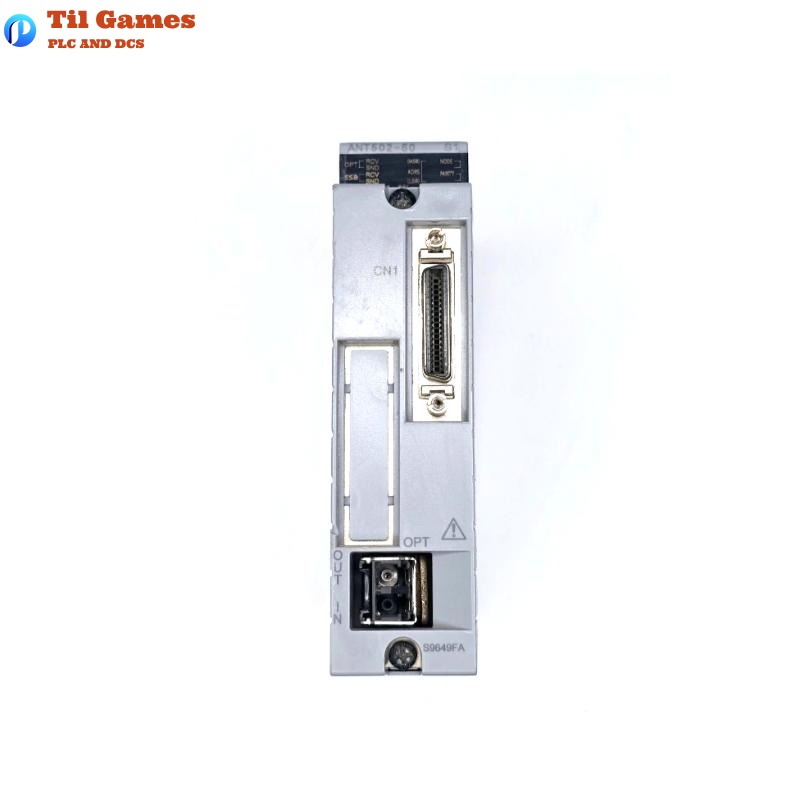

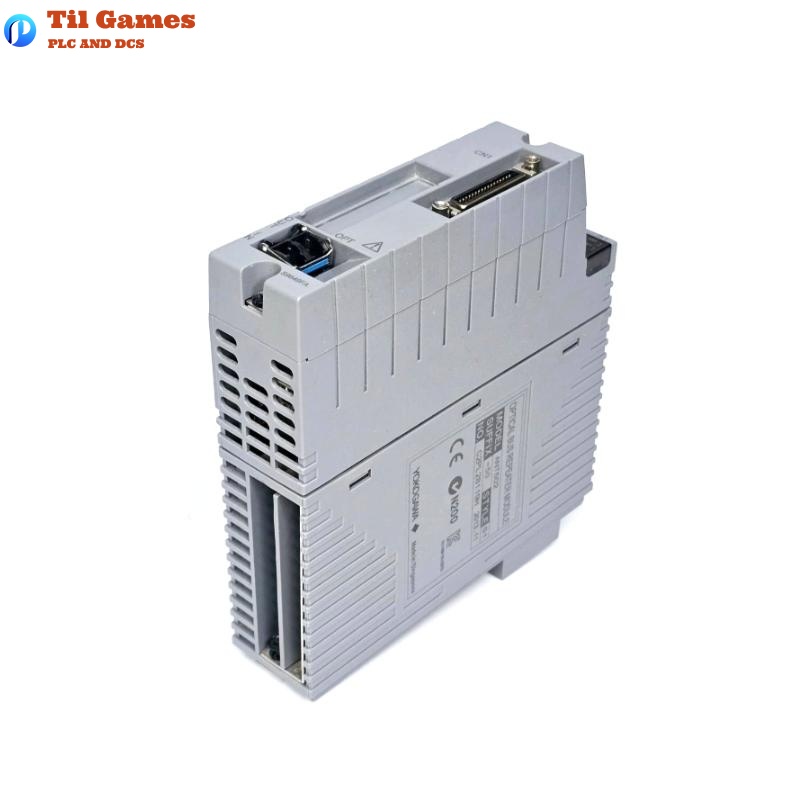

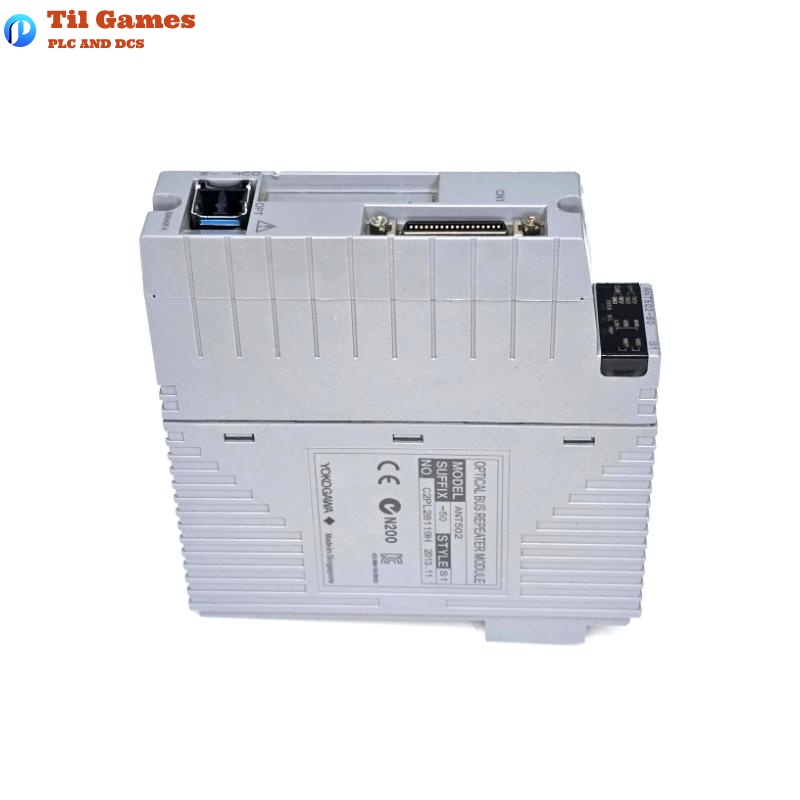

Technical Specifications
| Item | Description |
|---|---|
| Function | Optical transmission of ESB bus signals |
| Connection Type | Chain and star configuration |
| Max Connectable Stages | 2 (in chain connection) |
| Max Connections | 8 pairs (ANT401 to ANT502) |
| Max Transmission Distance | 5 km (with ANT401 and ANT502 used together) |
| Optical Connector Type | LC type (IEC 61754-20 compliant) |
| Permissible Optical Loss | 0 to 10 dB @ 1.3 μm |
| Optical Fiber Type | Quartz single-mode (JIS C 6835 SSMA-9.3/125 or IEC 60793-2-50 B1.1) |
| Required Fiber Cores | 2 |
| Max Fiber Length | 5 km |
| Current Consumption | 0.5 A (for ANT502) |
| Installation (Single) | ANB11: B1; ANT10U: IO1, 3, 5, 7, B1 |
| Installation (Redundant) | ANB11: B1, 2; ANT10U: IO1 to 8, B1, 2 |
| Dimensions (W x D x H) | 155.9 × 32.8 × 130 mm |
| Weight | 0.25 kg (module only) |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the primary function of the ANT502 module?
A1: It converts ESB bus signals into optical signals for long-distance transmission (up to 5 km).
Q2: Can ANT502 operate standalone?
A2: No, it must be used in conjunction with the ANT401 master module.
Q3: How many optical fiber cores are needed for ANT502?
A3: It requires two-core quartz single-mode fiber with LC connectors.
Q4: In which units can ANT502 be installed?
A4: It can be installed in ANB11 or ANT10U units following designated slot configurations.
Q5: What is the current consumption of the module?
A5: The ANT502 consumes up to 0.5 A.
Q6: Which option codes allow ESB bus connection on ANT502?
A6: Use option codes /BU1A or /HU1A for ESB bus connection.
Q7: Does the module support environmental monitoring?
A7: Yes, when specified with /HU1A or /HU1B, it supports HKU interface for environment info.
Q8: How many types of connection topologies does ANT502 support?
A8: It supports both chain and star types, with a maximum of 8 pairs.
