Technical Specifications
| Parameter | Description |
|---|---|

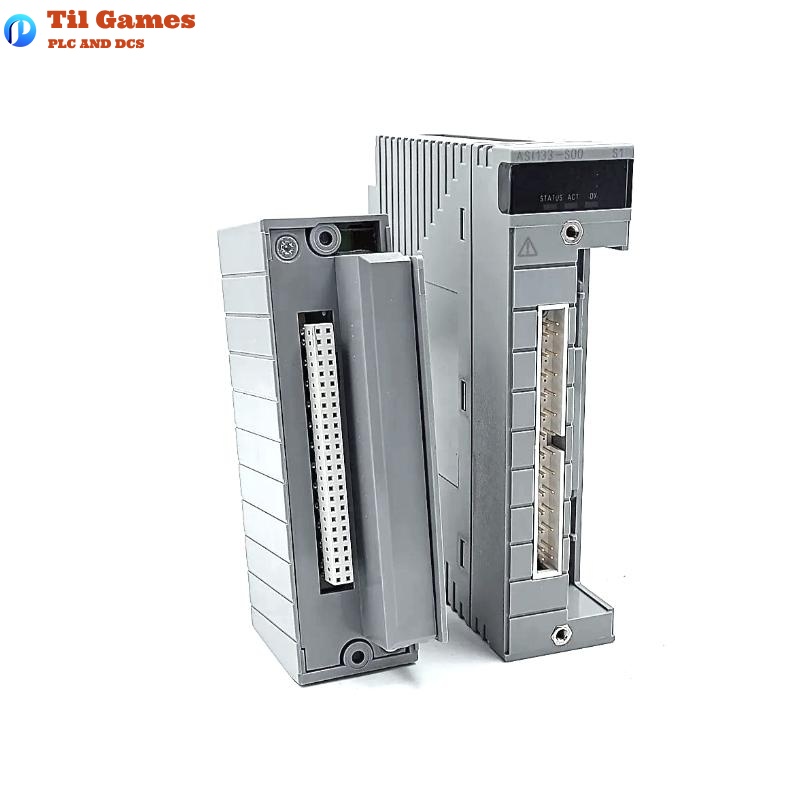

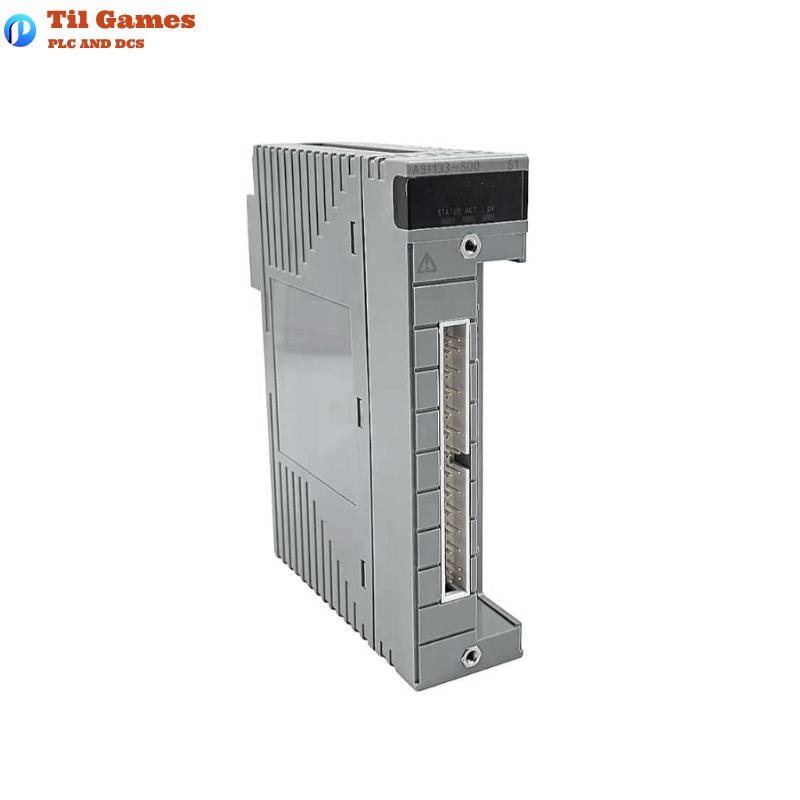

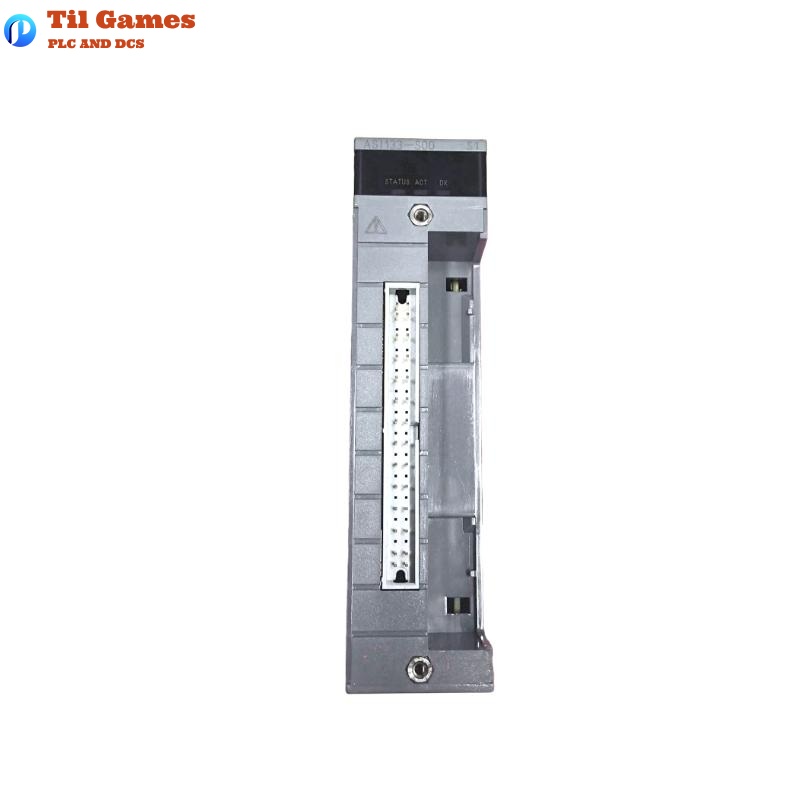

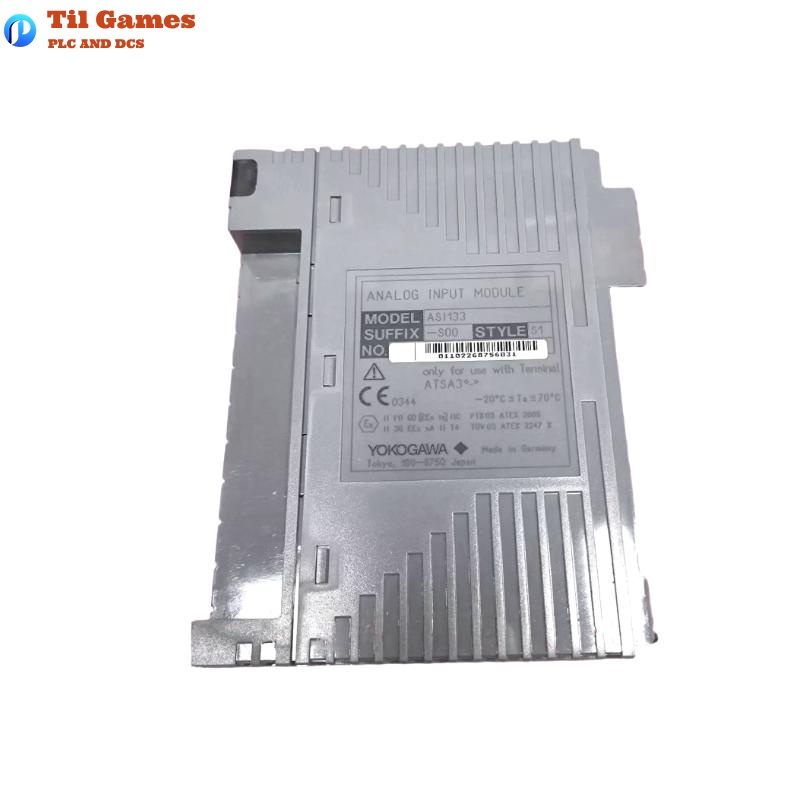

| Model | ASI133-S00 |
| Module Type | Analog Input Module (4-20 mA) |
| Number of Channels | 8 Channels |
| Isolation | Isolated per channel |
| Input Signal Type | 2-wire transmitter input (4-20 mA) |
| Wiring Method | Pressure clamp terminal |
| Supported Configurations | Single and Dual-Redundant |
| Terminal Block Model | ATSA3S (Single), ATSA3D (Dual-redundant) |
| Mounting | DIN Rail Mounting |
| Explosion Protection | Supports intrinsic safety with certified circuit |
| Dimensions | 130 x 107.5 x 32.8 mm |
| Weight | 0.3 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: How many analog input channels does the ASI133-S00 support?
A1: The module supports 8 analog input channels, each with channel-to-channel isolation.
Q2: Does the module support redundancy?
A2: Yes, it supports redundant wiring using the ATSA3D dual-redundant terminal block.
Q3: What is the standard input signal?
A3: The input signal is 4 to 20 mA, designed for use with 2-wire transmitters.
Q4: What type of wiring method is used?
A4: Pressure clamp terminal wiring is used for straightforward and secure connections.
Q5: How is the module connected to field instruments?
A5: It connects through dedicated terminal blocks (ATSA3S/ATSA3D), suitable for intrinsic safety loops.
Q6: Is the module explosion-proof?
A6: The module itself is not explosion-proof but supports use in intrinsically safe applications compliant with ATEX certification.
Q7: Which systems is this module compatible with?
A7: It is compatible with Yokogawa CENTUM VP and ProSafe-RS systems.
Q8: Which terminal block types are supported?
A8: ATSA3S for single modules, and ATSA3D for dual-redundant configurations.
