Technical Specifications
| Parameter | Description |
|---|---|

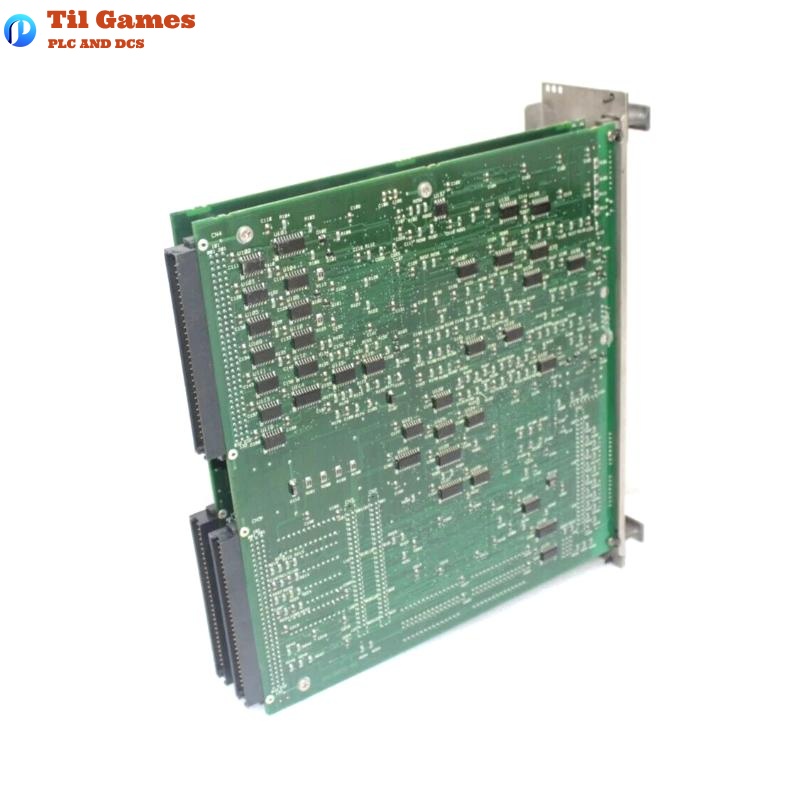

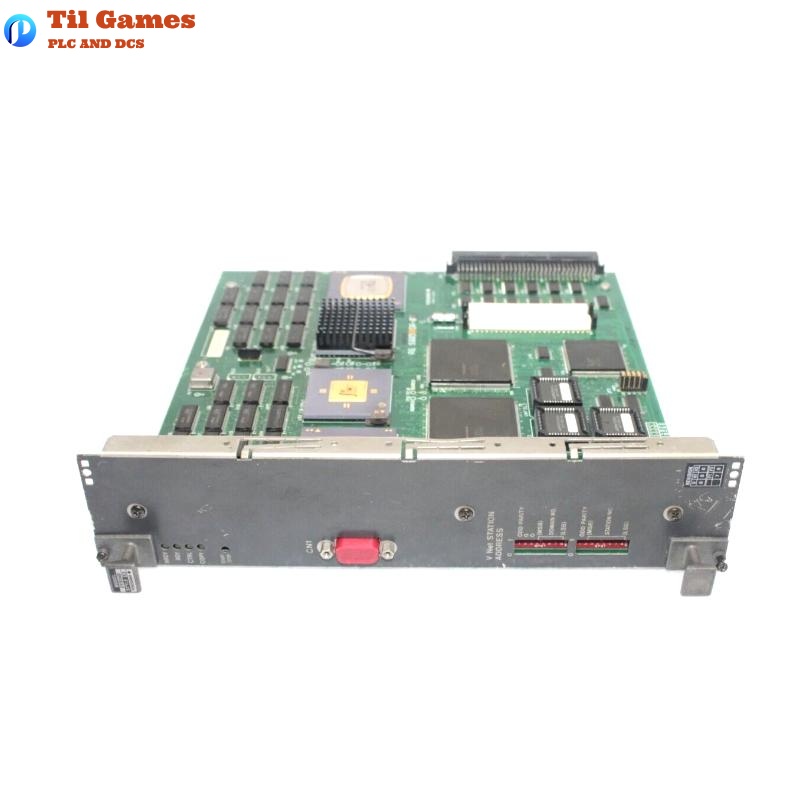

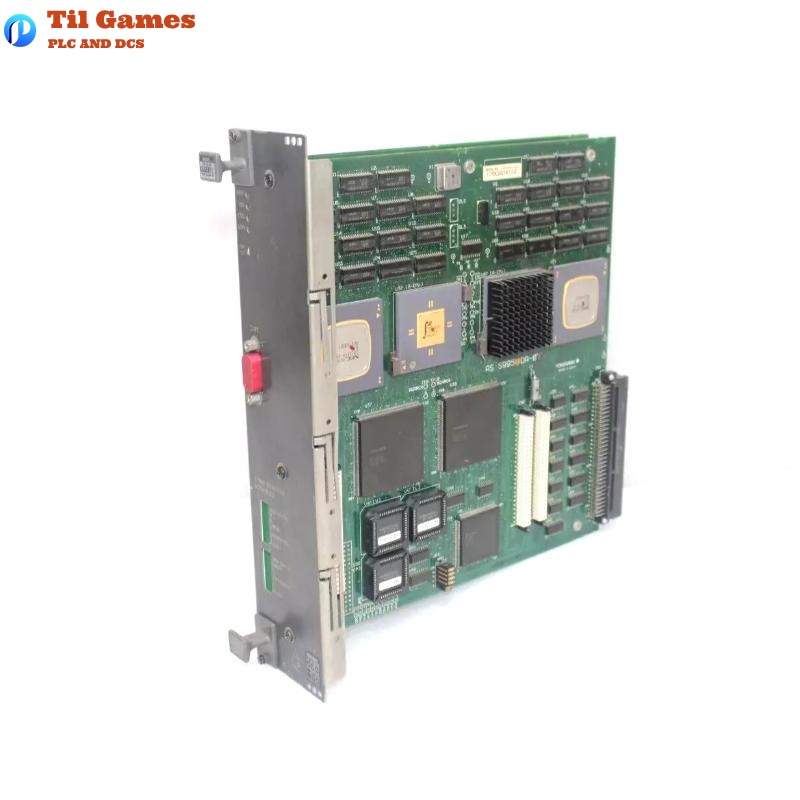

| Model | CP334D S3 Processor Card |
| System Platform | Yokogawa CENTUM CS3000 System |
| Memory Capacity | 12 MB RAM |
| Application | Processor card for Field Control Station |
| Redundancy Support | Supports dual redundant configuration |
| Communication | V-net interface, RIO bus interface |

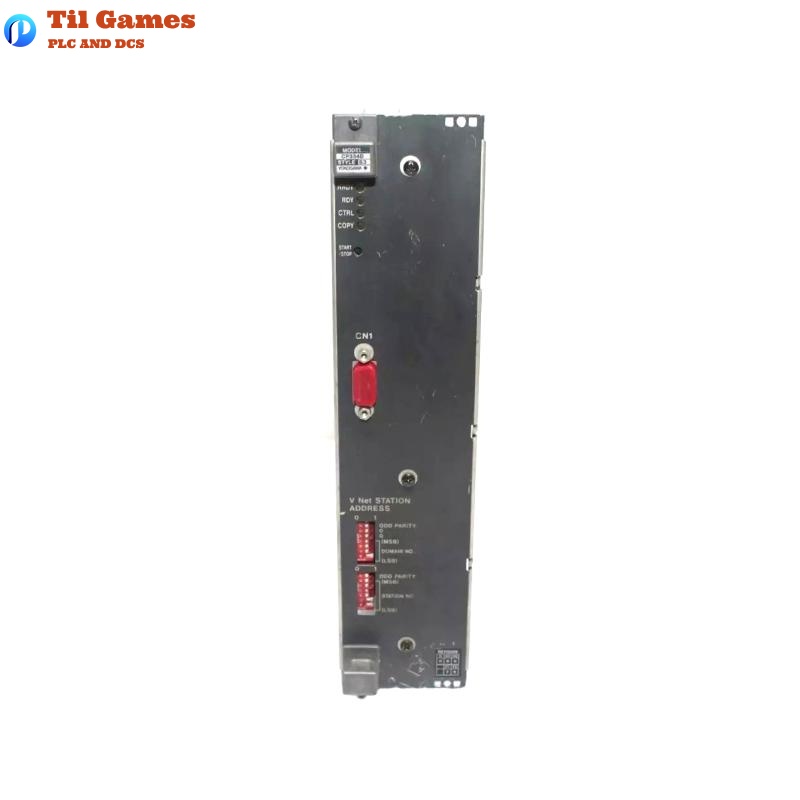

| Status Indicators | HRDY, RDY, CTRL, COPY, START/STOP |
| Maintenance Port | CN1 connector (for maintenance use only) |
| Safety Features | Self-diagnostic, hot standby, watchdog timer |
| Dimensions | 150 x 100 x 35 mm |
| Weight | 0.5 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the main function of the CP334D?
A1: The CP334D is a processor card used in the CS3000 system for executing control logic and managing I/O data.
Q2: Does this processor support redundancy?
A2: Yes, the CP334D supports dual redundancy. It can be paired with another identical processor card to achieve hot standby.
Q3: What does the “HRDY” indicator mean?
A3: HRDY indicates the result of a hardware self-check. A green light means the hardware is functioning correctly.
Q4: How to identify whether the card is active or standby?
A4: The CTRL indicator is on if the card is the control-side processor. It is off if the card is in standby.
Q5: Will control be interrupted during processor switchover?
A5: No, switchover occurs seamlessly without interrupting control operations.
Q6: What is the CN1 connector used for?
A6: CN1 is for maintenance use only. It should not be used during normal operations.
Q7: Does the CP334D support automatic program copying?
A7: Yes, when a processor card is replaced or restarted, the active card’s program is automatically copied to the standby card.
Q8: Will a power supply failure affect the processor?
A8: No, the dual power supply design ensures continued operation even if one side fails.
