Technical Specifications
| Parameter | Description |
|---|---|

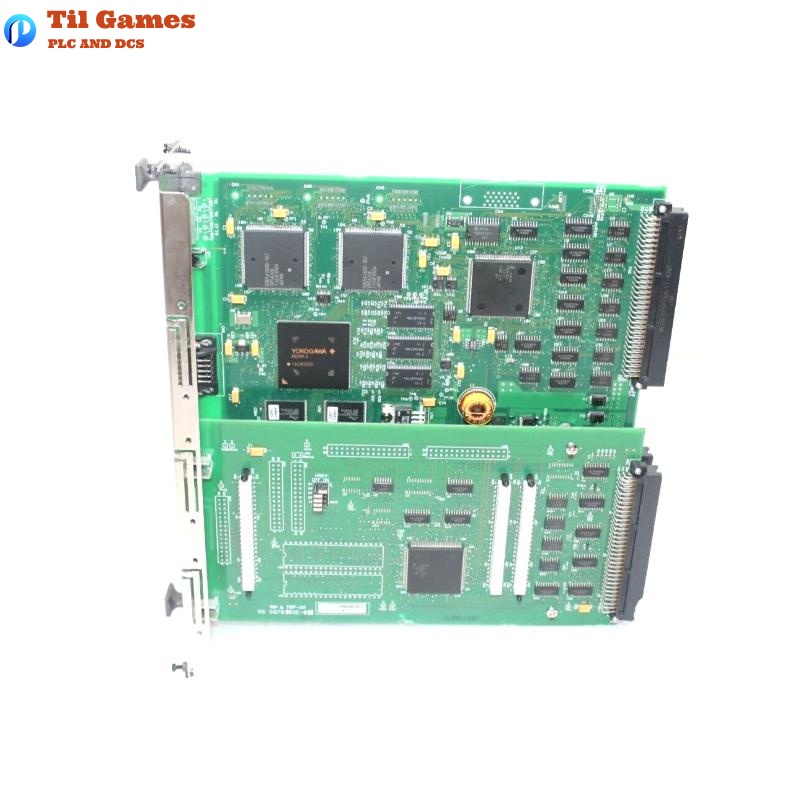

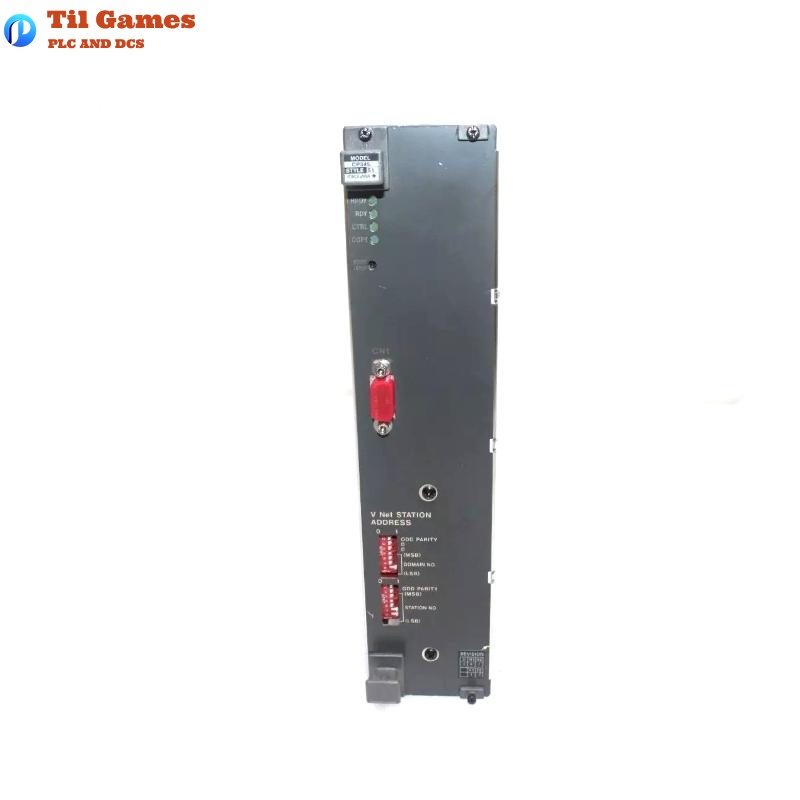

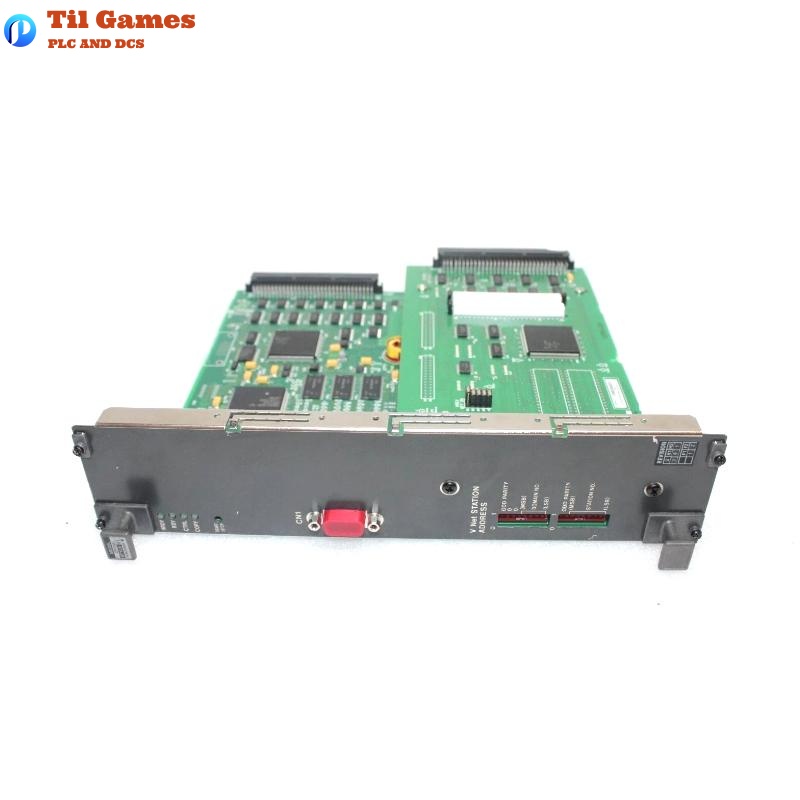

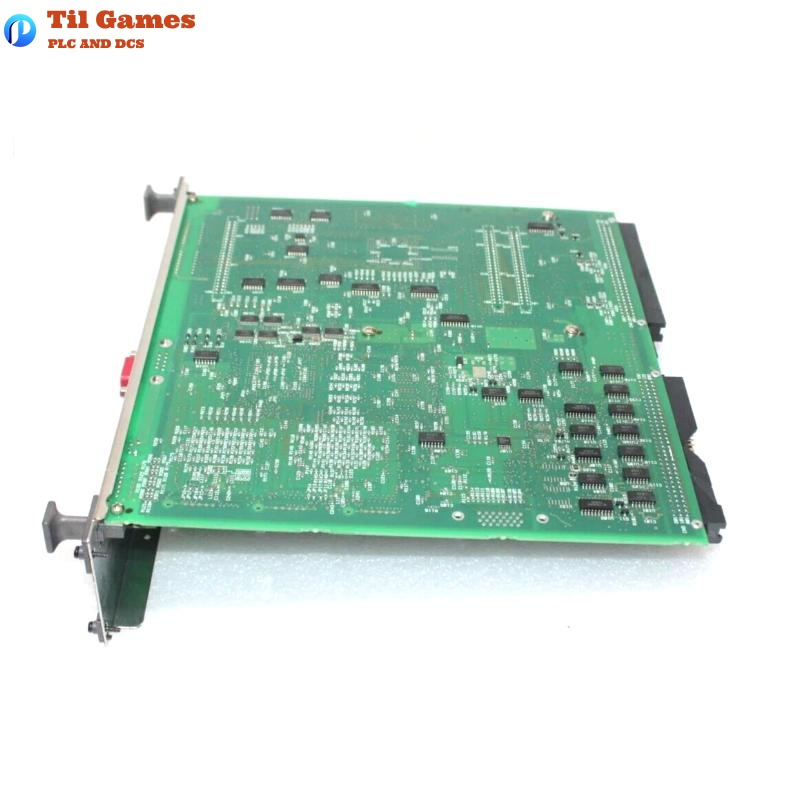

| Product Name | CP345 S1 Processor Card |
| System Compatibility | CENTUM CS3000 R3 FFCS |
| Processor Type | Dual MPU (Pair & Spare method) |
| Error Detection | Cross-checking by collators, ECC memory |
| Control Bus | V-net |
| Inter-module Communication | SEN bus (Serial, LVDS, CRC-CCITT, 384 Mbps) |
| Data Simultaneity | Within frame (1 to 256 bytes per frame) |
| Mounting Format | Modular encapsulated housing |
| Power Backup | NiMH Battery Pack |
| Supported Redundancy | Dual-redundant processor module configuration |
| Dimensions (W x H x D) | 150 x 100 x 35 mm |
| Weight | 0.5 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What system is the CP345 S1 compatible with?
A1: The CP345 S1 is compatible with Yokogawa CENTUM CS3000 R3 FFCS systems.
Q2: What is the main feature of the CP345 S1 processor card?
A2: It uses the Pair & Spare method with dual MPUs for high reliability and fault tolerance.
Q3: Is the CP345 S1 processor card redundant?
A3: Yes, it supports dual-redundant configuration for uninterrupted operation.
Q4: What type of communication bus is used between redundant processors?
A4: The SEN bus, a high-speed LVDS-based serial transmission bus, is used.
Q5: Can the CP345 S1 be used in small- to large-scale systems?
A5: Yes, it supports scalable applications using the same system software.
Q6: How is memory integrity ensured in CP345 S1?
A6: It uses ECC (Error Correcting Code) memory and collators to validate data.
Q7: What kind of battery is used in CP345 S1?
A7: It uses a nickel-hydrogen (NiMH) battery pack for memory backup.
Q8: Does CP345 S1 require a new system design for integration?
A8: No, it maintains software compatibility with existing CENTUM CS systems.
