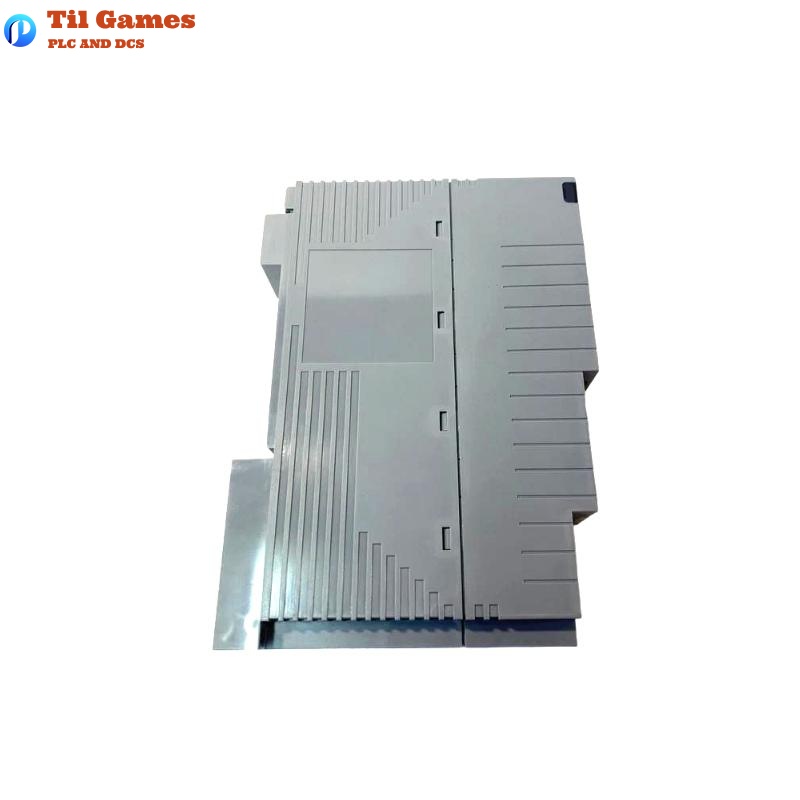

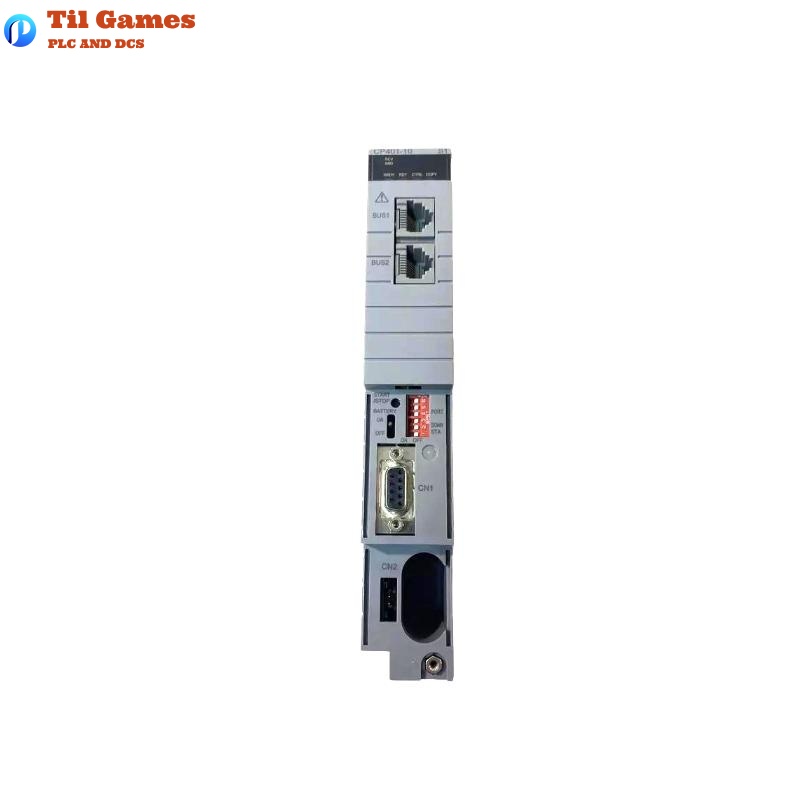

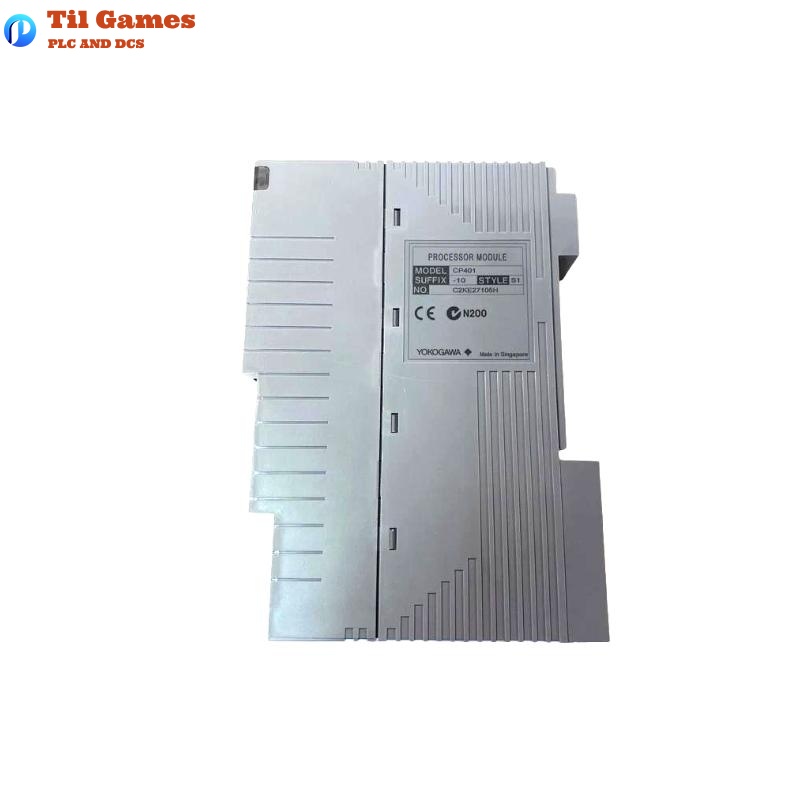

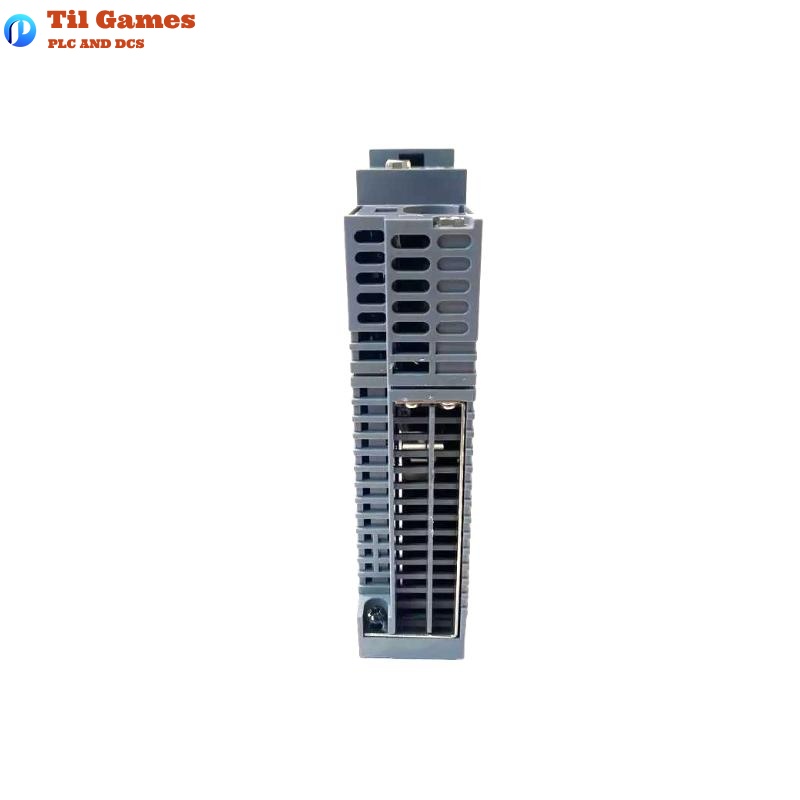

Yokogawa CP401-10 Processor Module
Technical Specifications
| Parameter | Description |
|---|---|
| Model Number | CP401-10 Processor Module |
| System Platform | Yokogawa CENTUM CS3000 R3 FFCS |
| Architecture | Dual redundancy (Pair & Spare with dual MPUs) |
| Main Memory | ECC-protected memory |
| Communication | Control bus, SEN bus, ESB bus, V-net |
| Transmission Rate | 384 Mbps (SEN bus) |
| Bus Type | LVDS synchronous serial, hot-pluggable supported |
| Form Factor | Modular enclosed design (non-card style) |
| Internal Hardware | Integrated CP345 processor and SB301 bus interface |
| Battery Type | Nickel-metal hydride (for backup during power failure) |
| Dimensions | 23.5 × 104 × 110 mm |
| Weight | 0.2 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What system architecture is CP401-10 compatible with?
A1: The CP401-10 is compatible with Yokogawa’s CENTUM CS3000 R3 system under the FFCS architecture for small- to mid-scale control environments.
Q2: How does CP401-10 achieve redundancy?
A2: It uses Pair & Spare architecture with two MPUs performing the same control logic and cross-verification to ensure reliability.
Q3: What is the advantage of the main memory?
A3: The memory includes ECC (Error-Correcting Code) to detect and correct errors automatically during operation.
Q4: Is the module hot-pluggable?
A4: Yes, it supports hot plugging, especially via the SEN bus, allowing maintenance without system shutdown.
Q5: Is CP401-10 physically compatible with legacy systems?
A5: Yes, it matches the dimensions of uXL systems and can replace older units without altering the control cabinet.
Q6: What is the function of the SEN bus?
A6: The SEN bus handles high-speed data synchronization and program copying between redundant processor modules.
Q7: What is the role of the battery pack?
A7: The nickel-metal hydride battery backs up memory content in the event of power failure.
Q8: Can CP401-10 be used in large-scale systems?
A8: Yes, although compact, it shares software architecture with large-scale systems, enabling flexible scalability.
