Technical Specifications
| Parameter | Value |
|---|---|

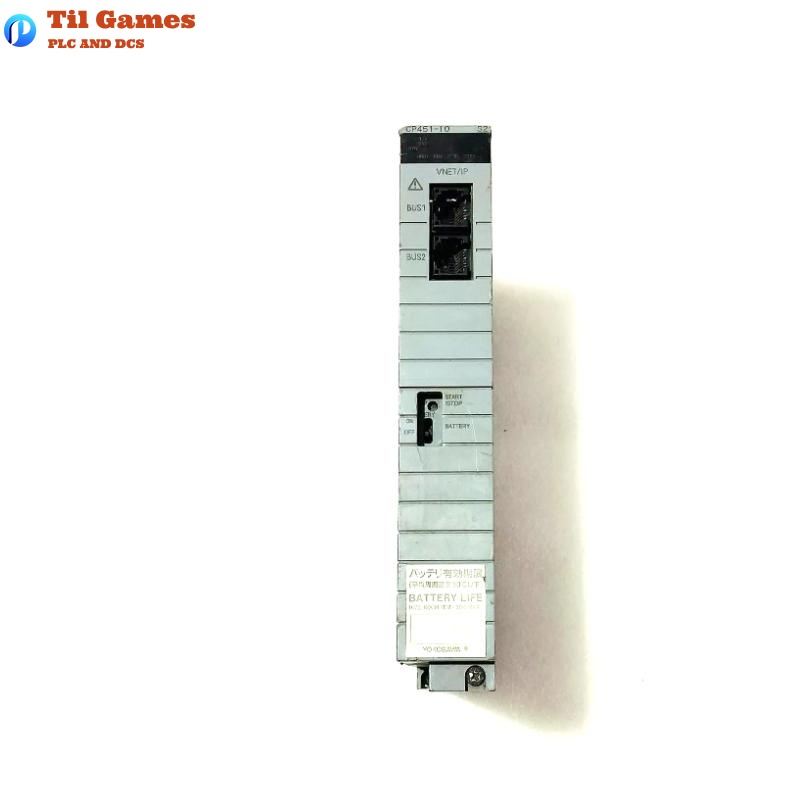

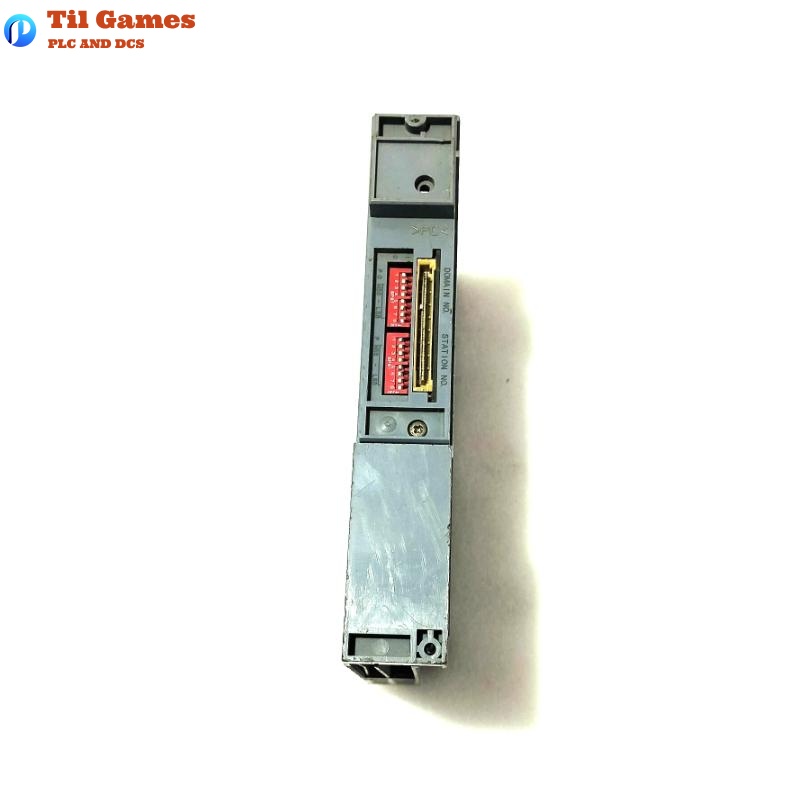

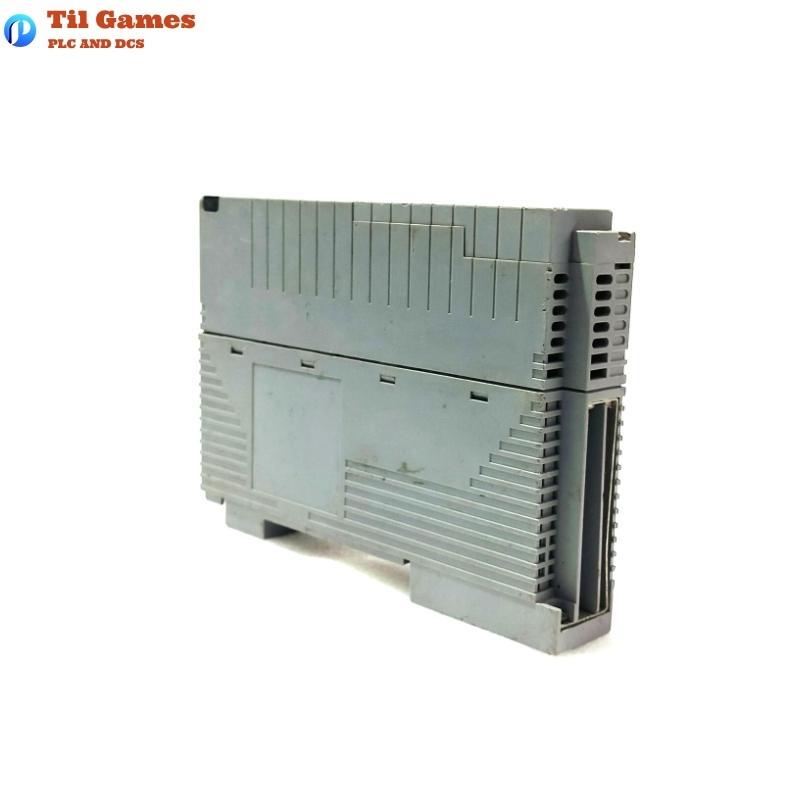

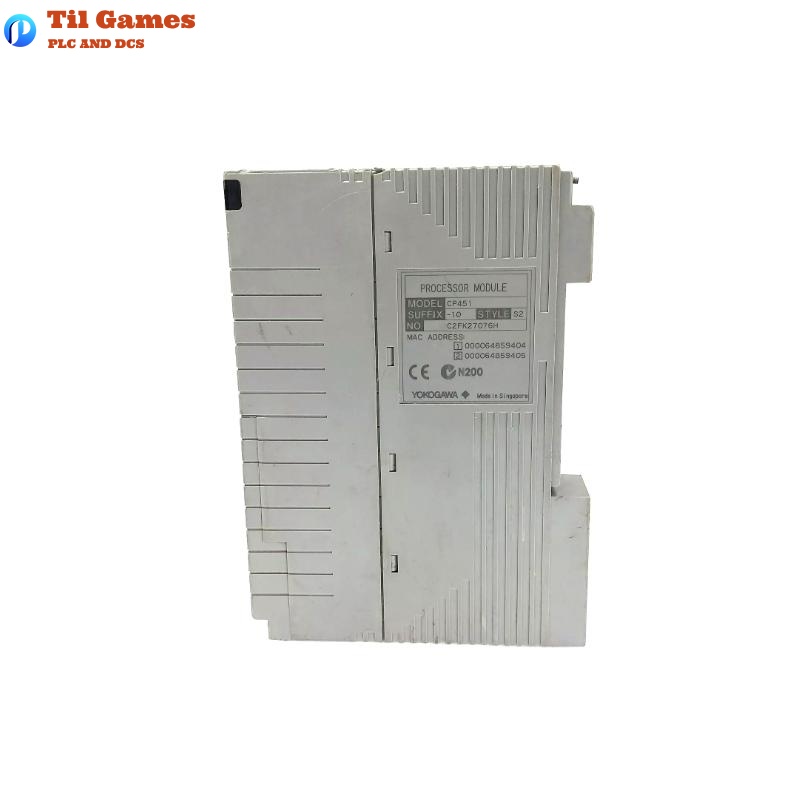

| Model Number | CP451-10 S2 |
| Installation Type | Plug-in module |
| Communication Network | Vnet/IP |
| System Compatibility | CENTUM VP, ProSafe-RS |
| Max Supported Nodes | Up to 13 nodes (with expansion package) |
| Communication Speed | 128 Mbps |
| Processor | High-speed dual CPU architecture |
| Redundancy Support | Supports dual redundant processor setup |
| Power Supply | Supplied via system backplane |
| Operating Temperature | 0 to 50°C |
| Storage Temperature | -20 to 60°C |
| Relative Humidity | 5% to 95% (non-condensing) |
| Vibration Resistance | ≤ 2.0 m/s² (14 to 100 Hz) |
| Shock Resistance | 49.0 m/s² (horizontal), 98.0 m/s² (vertical) |
| EMC Immunity | Electric field ≤ 3 V/m, Magnetic field ≤ 30 A/m |
| Altitude Limit | ≤ 2000 m |
| Dimensions (mm) | 140 x 140 x 300 |
| Weight | 0.45 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What communication network does the CP451-10 S2 support?
A1: It supports Vnet/IP, compatible with CENTUM VP and ProSafe-RS systems.
Q2: Does it support redundancy configuration?
A2: Yes, the CP451-10 S2 supports dual redundant processor configurations for high reliability.
Q3: What is the maximum number of nodes it supports?
A3: It supports up to 13 nodes when using the node expansion package.
Q4: What is the operating temperature range?
A4: The module operates within a temperature range of 0 to 50°C.
Q5: How is the module powered?
A5: It is powered via the system backplane.
Q6: Is it suitable for use in harsh environments?
A6: Yes, it is G3-rated, ensuring resistance to vibration and electromagnetic interference.
Q7: What redundancy features are supported?
A7: It supports both communication path redundancy and processor redundancy.
Q8: What are the dimensions and weight of the module?
A8: Dimensions are 140 x 140 x 300 mm and weight is 0.45 kg.
