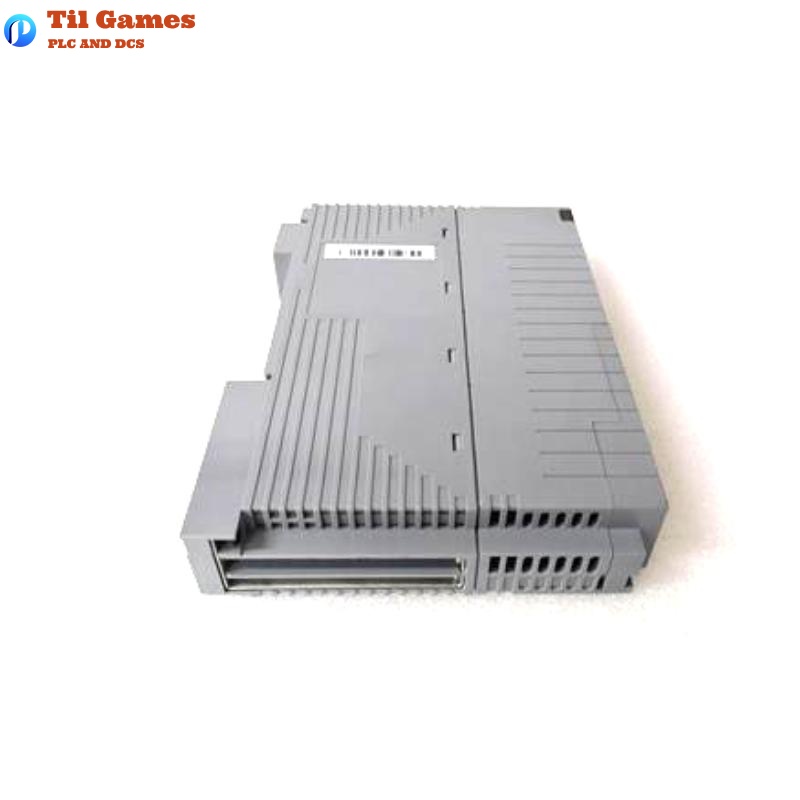

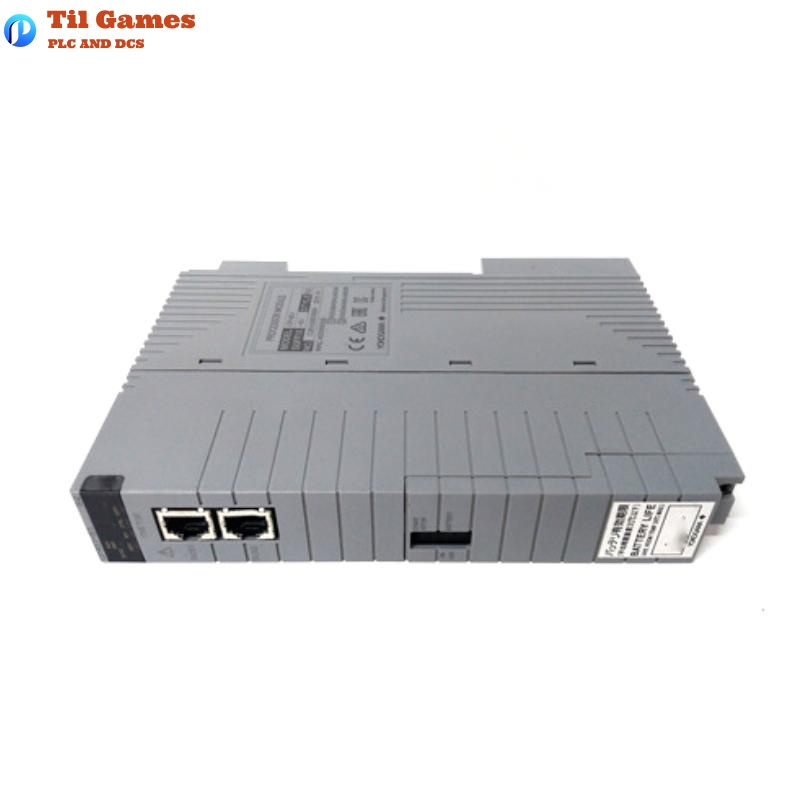

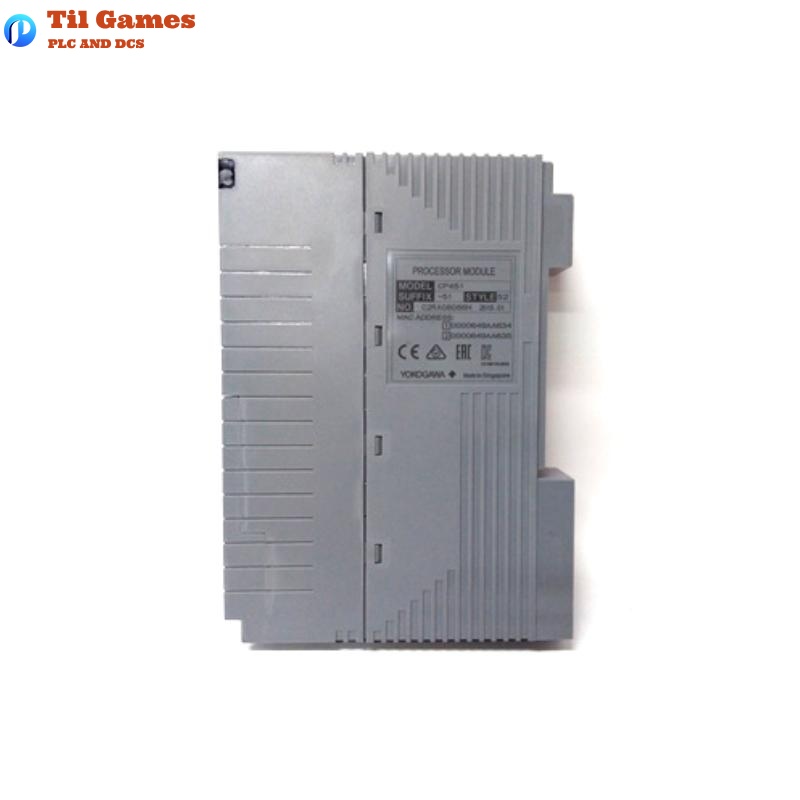

Yokogawa CP451-51 Processor Module
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | CP451-51 |
| Module Type | Processor Module |
| Communication Method | Vnet/IP supported |
| Mounting | Installed in FCU of FIO system |
| Power Supply Voltage | 24 V DC (typical) |
| Power Consumption | Approx. 10 W |
| Operating Temperature | 0 to 50°C |
| Storage Temperature | -20 to 60°C |
| Humidity Range | 5% to 95% RH (non-condensing) |
| Vibration Resistance | 2.0 m/s² (14–100 Hz) continuous |
| Shock Resistance | 49.0 m/s² horizontal, 98.0 m/s² vertical |
| EMC Compliance | Meets CE, KC, EAC standards |
| Dimensions (W x H x D) | 66 x 49 x 125 mm |
| Weight | 0.45 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What communication protocol does CP451-51 support?
A1: It supports the Vnet/IP protocol for integration with the CENTUM VP FIO system.
Q2: What is the operating temperature range of the CP451-51?
A2: The operating range is 0 to 50°C, suitable for standard industrial environments.
Q3: Does the CP451-51 support redundancy?
A3: Yes, it can be configured in a dual-redundant setup for high system reliability.
Q4: What are the power requirements for CP451-51?
A4: It typically operates at 24V DC with a ±10% voltage tolerance.
Q5: Is the module compliant with EMC standards?
A5: Yes, it complies with CE, EAC, and KC electromagnetic compatibility standards.
Q6: Which Field Control Units are compatible with CP451-51?
A6: It is compatible with the AFV30, AFV40, and AFV10 series FCUs.
Q7: Can the processor module support remote I/O?
A7: Yes, it can connect to remote I/O nodes via the ESB or ER bus.
Q8: What is the typical installation method for CP451-51?
A8: It is typically mounted in a rack within the FIO system and connected through Node Units.
