Technical Specifications
| Item | Description |
|---|---|

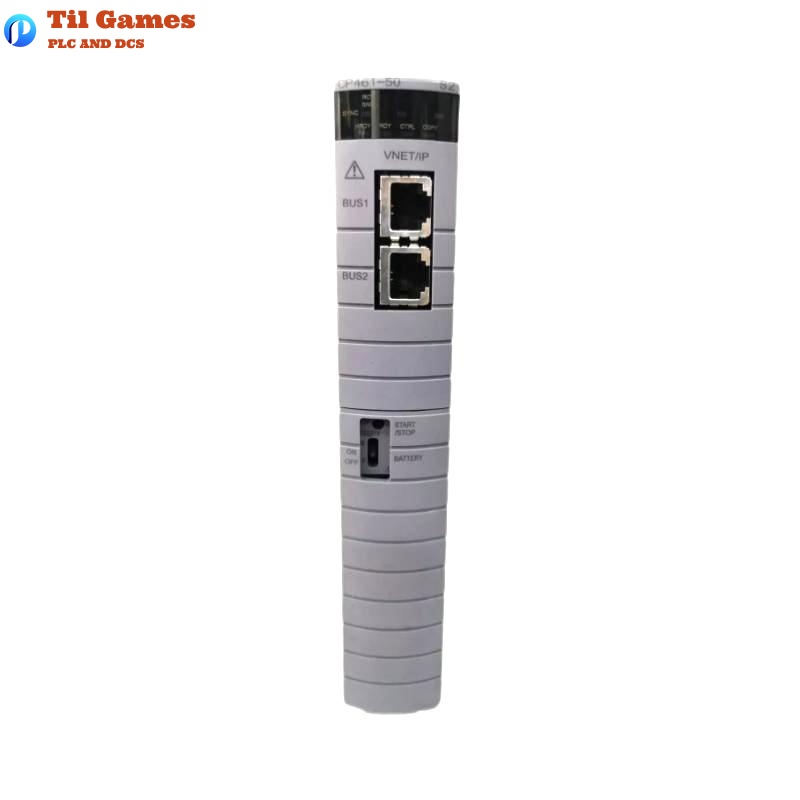

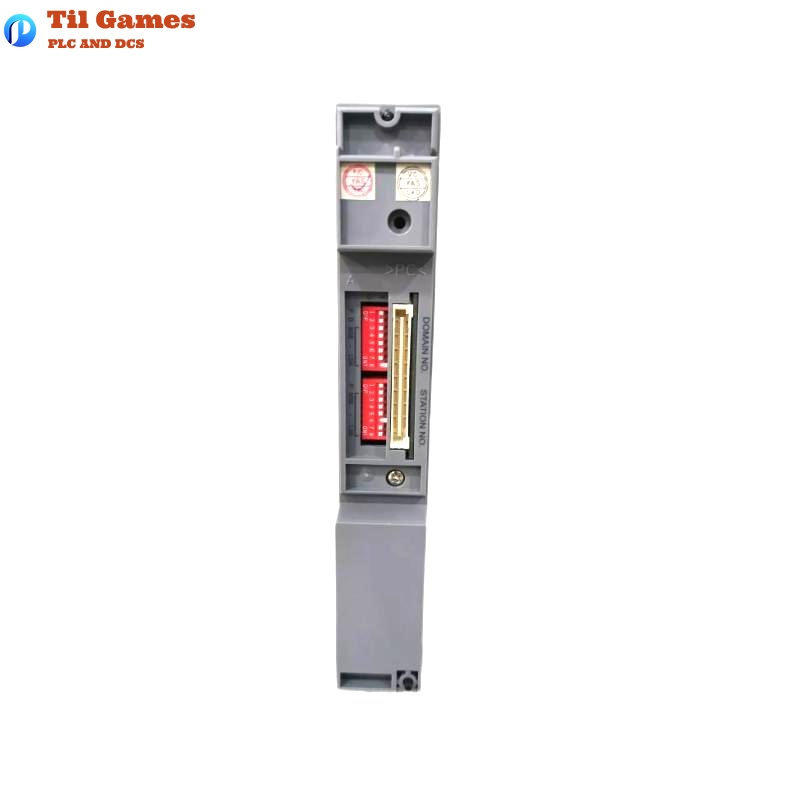

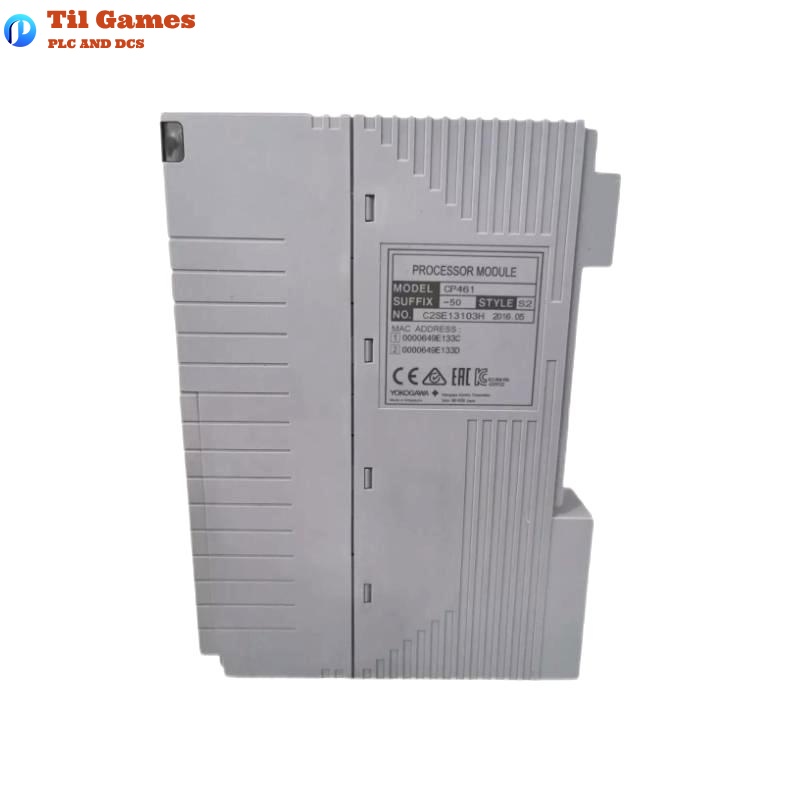

| Product Name | Yokogawa CP461-50 Processor Module |
| Compatible System | CENTUM VP R6.01 or later |
| Communication Interface | Dual-redundant Vnet/IP |
| Max Node Units | Up to 13 ESB/Optical ESB bus node units |
| Power Module Support | Supports redundant configuration (PW481/PW482/PW484) |
| Mounting | 19-inch rack mount (with M5x8 screws) |
| Network Connection | Connect with UTP cable (CAT5e or higher) |
| Memory Backup | Up to 72 hours with battery, recharge ≥ 48 hours |
| Installation Limits | Must use EC401/EC402 in slots 7 and 8 |
| Dimensions (W×H×D) | 32.8 × 149 × 199.5 mm |
| Weight | 0.7 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: Can CP461-50 be replaced with CP471?
A1: No. Replacement from CP461 to CP471 must be carried out by a Yokogawa-certified service engineer and is not user-permitted.
Q2: What type of network does CP461-50 support?
A2: It supports dual-redundant Vnet/IP connections via CAT5e or higher UTP cables.
Q3: Does the module retain memory during power failure?
A3: Yes. The main memory is backed up by a battery for up to 72 hours.
Q4: How many I/O node units can be connected to CP461-50?
A4: Up to 13 ESB or Optical ESB bus node units can be connected.
Q5: Which power modules are compatible with CP461-50?
A5: It supports PW481, PW482, and PW484 power modules in redundant configurations.
Q6: Are there installation restrictions for this module?
A6: Yes. EC401 or EC402 modules must be installed in slots 7 and 8 for ESB bus connection.
Q7: Is a separate software license required for CP461-50?
A7: Yes. A VP6F1700 control function software license must be obtained separately.
Q8: What is the primary function of the CP461-50 module?
A8: It serves as the core processing unit for the CENTUM VP control system, handling I/O signal processing and system communications.
