Technical Specifications
| Item | Specification |
|---|---|

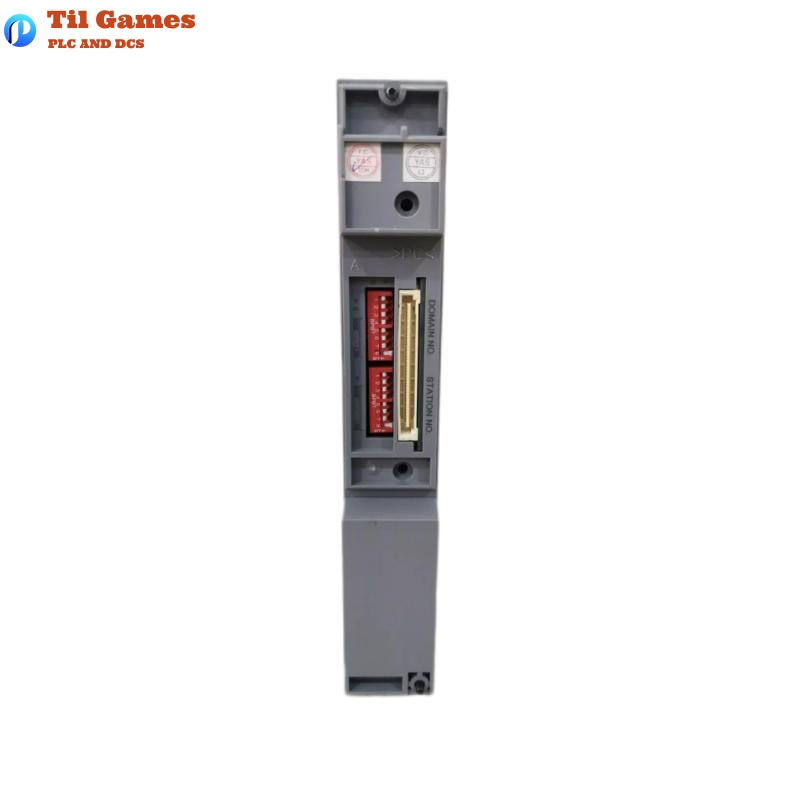

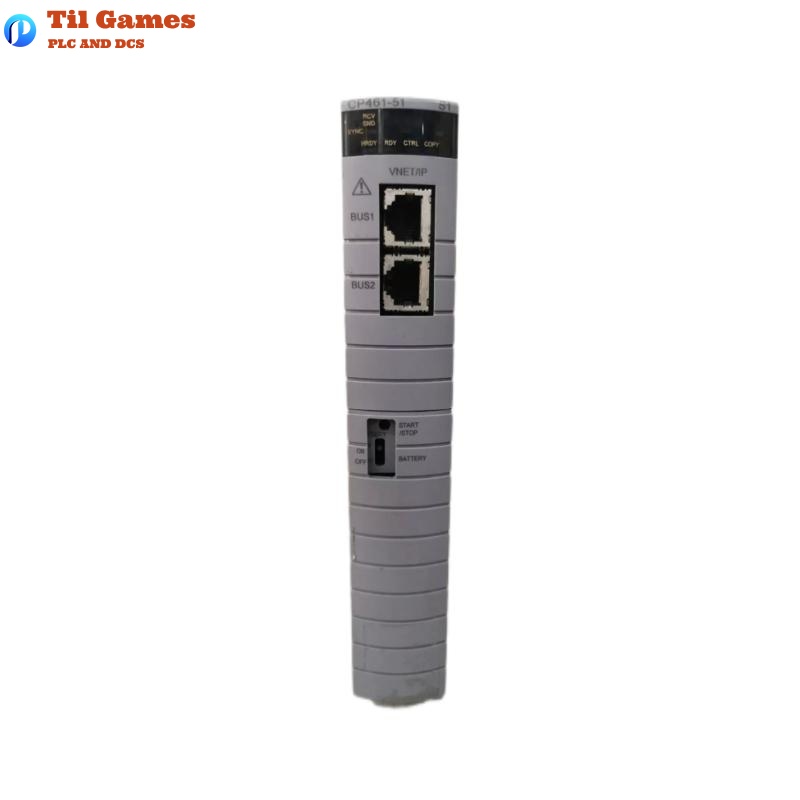

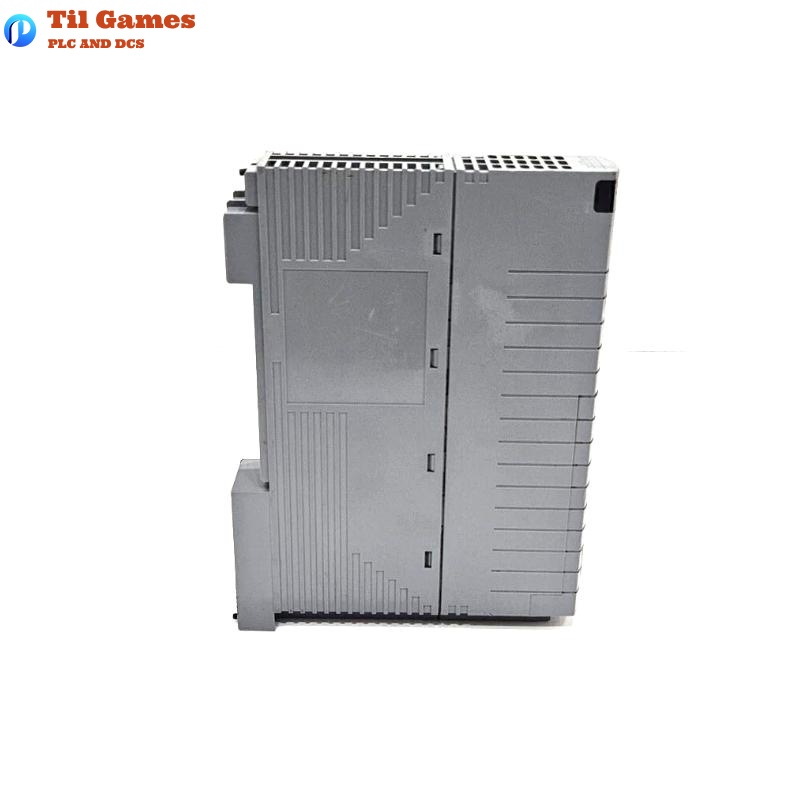

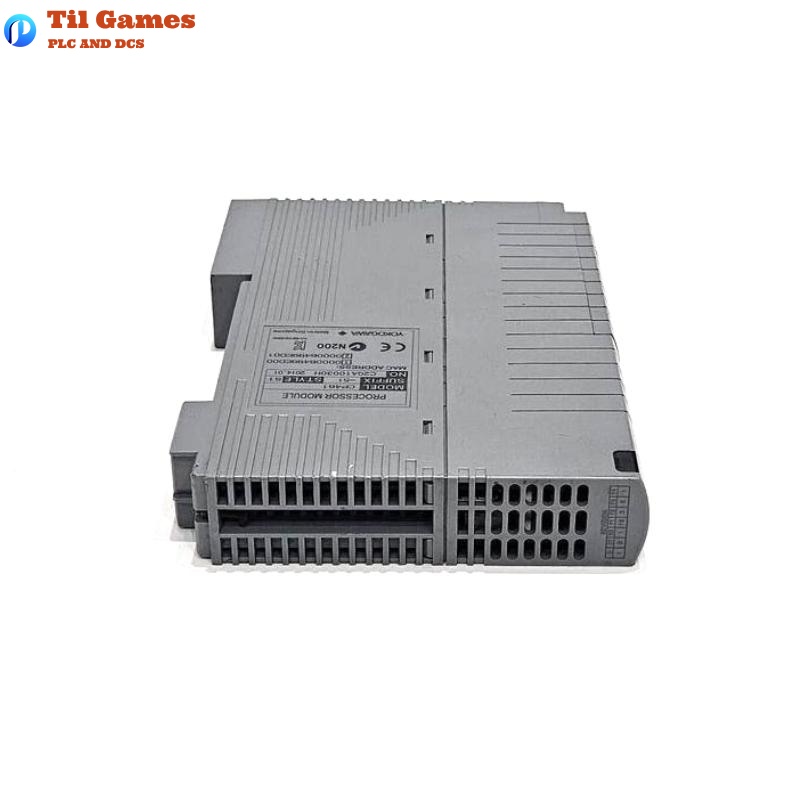

| Module Name | CP461-51 Processor Module |
| Applicable System | Yokogawa CENTUM VP AFV30S/AFV30D |
| Configuration | Dual-redundant supported (identical module pair) |
| Communication Interface | Vnet/IP Dual-Redundant Interface |
| Max Node Units Supported | Up to 13 ESB/Optical ESB Bus Node Units |
| Memory Backup | Battery backup for up to 72 hours |
| Battery Recharge Time | Minimum 48 hours |
| External Output | READY contact (opens upon FCU failure) |
| Contact Rating | 30 V DC, max. 0.3 A |
| Dimensions (W×H×D) | 32.8 × 149 × 199.5 mm |
| Weight | 0.7 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: Does the CP461-51 support dual-redundant configuration?
A1: Yes, CP461-51 can be configured with an identical module to form a dual-redundant setup.
Q2: Can CP461 be replaced with CP471?
A2: No, users are not permitted to replace CP461 with CP471. Replacement must be performed by an authorized Yokogawa engineer.
Q3: Will data be lost during power failure?
A3: No, the main memory has battery backup support for up to 72 hours.
Q4: How many I/O modules can be connected to the CP461-51?
A4: Up to 8 I/O modules can be connected per FCU depending on system configuration.
Q5: What is the communication interface of this module?
A5: It uses a dual-redundant Vnet/IP interface to ensure stable and reliable communication.
Q6: What is the purpose of the READY contact output?
A6: It opens when the FCU fails, typically used for external alarms or interlocks.
Q7: Are there any special installation requirements for the module?
A7: Yes, it must be rack-mounted in a 19-inch cabinet and insulated with the provided bushings.
Q8: Are there environmental restrictions for using CP461-51?
A8: Yes, it must be installed in an environment compliant with the FIO system standards for temperature, humidity, and EMC.
