Technical Specifications
| Parameter | Description |
|---|---|

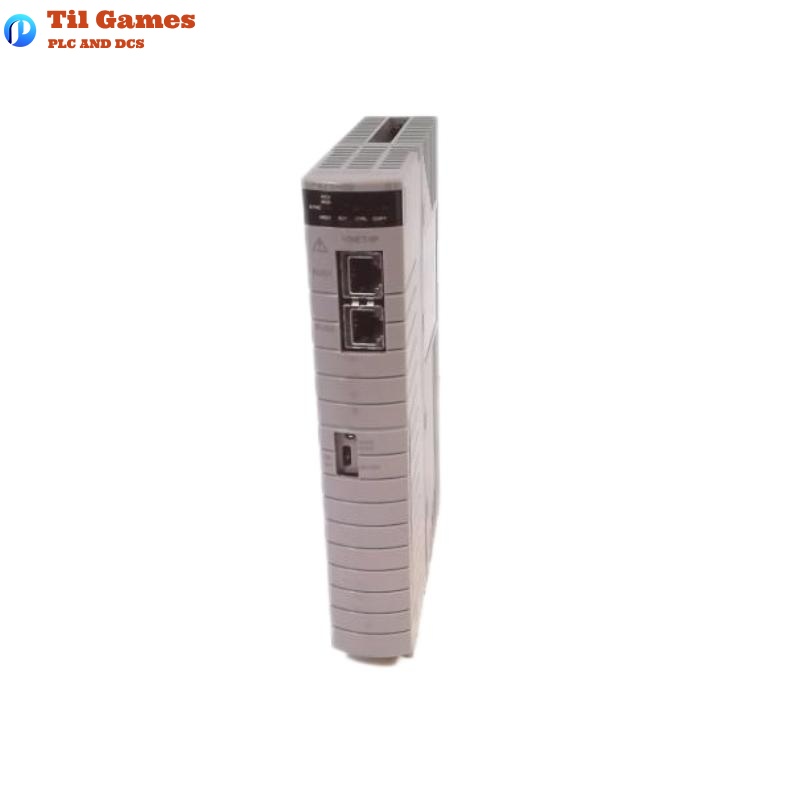

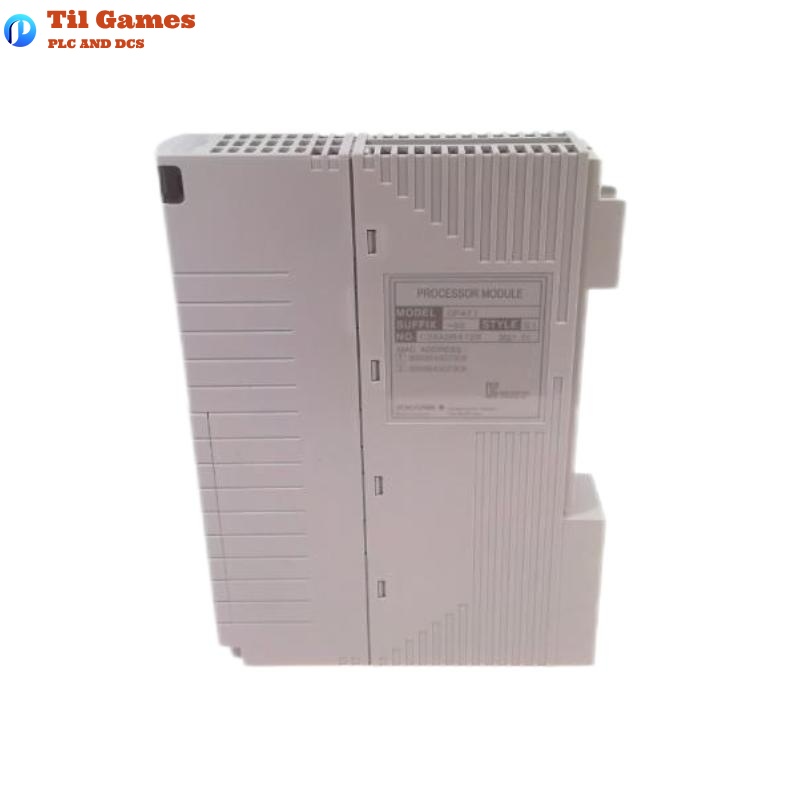

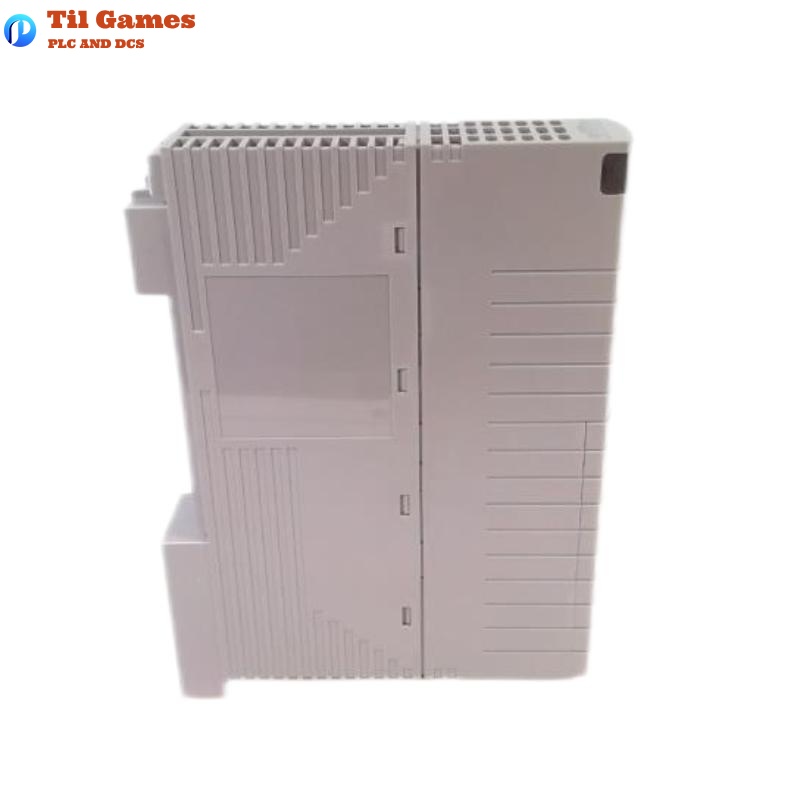

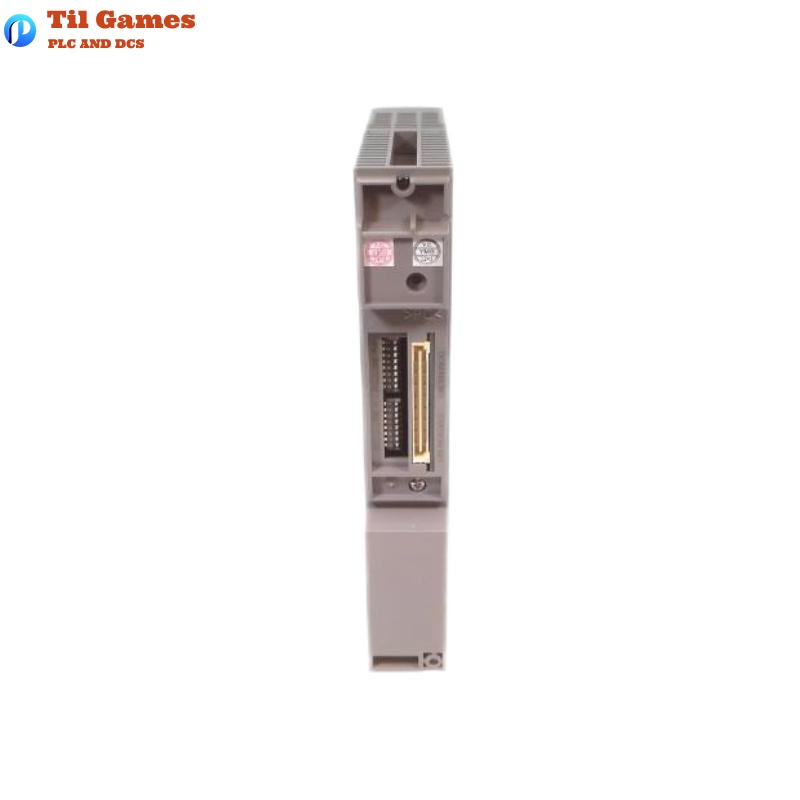

| Model | CP471-00 |
| Applicable System | CENTUM VP R6.05 or later |
| Applicable Units | AFV30, AFV40, A2FV50, A2FV70 series |
| Mounting | Supports dual-redundant configuration |
| Dimensions | 199.5 x 149 x 32.8 mm |
| Weight | 0.7 kg |
| Compatible ESB Module | EC401 (S3 or later) |
| Explosion Protection | Optional (distinguished by suffix codes) |
| Operating Conditions | Refer to system overview documentation |
| Standard Accessory | Processor Module Modification History Label (T9044AR) x1 |
| Manufacturer | Yokogawa Electric Corporation |
FAQ
Frequently Asked Questions (FAQ)
Q1: Which control units are compatible with CP471-00?
A1: CP471-00 is compatible with CENTUM VP AFV30, AFV40, A2FV50, and A2FV70 series field control units.
Q2: What are the dimensions and weight of CP471-00?
A2: The dimensions are 199.5 x 149 x 32.8 mm, and the weight is approximately 0.7 kg.
Q3: Which system versions are supported by CP471-00?
A3: CENTUM VP R6.05 or later versions are required.
Q4: Is online replacement supported?
A4: Online replacement can be performed by the user in a dual-redundant configuration.
Q5: Which ESB bus coupler modules can be used with CP471-00?
A5: The EC401 (S3 or later) ESB bus coupler module is required.
Q6: Does CP471-00 have explosion protection versions?
A6: Yes, explosion protection is available and is specified by suffix codes.
Q7: Can an existing CP461 be replaced by CP471?
A7: Yes, but the replacement must be performed by a service engineer authorized by Yokogawa. Users are not permitted to replace it themselves.
Q8: Can CP471 and CP461 be used together in redundancy?
A8: No, CP471 and CP461 cannot be mixed in the same dual-redundant configuration, but a full pair of CP461 can be replaced with a pair of CP471.
