Technical Specifications
| Item | Description |
|---|---|

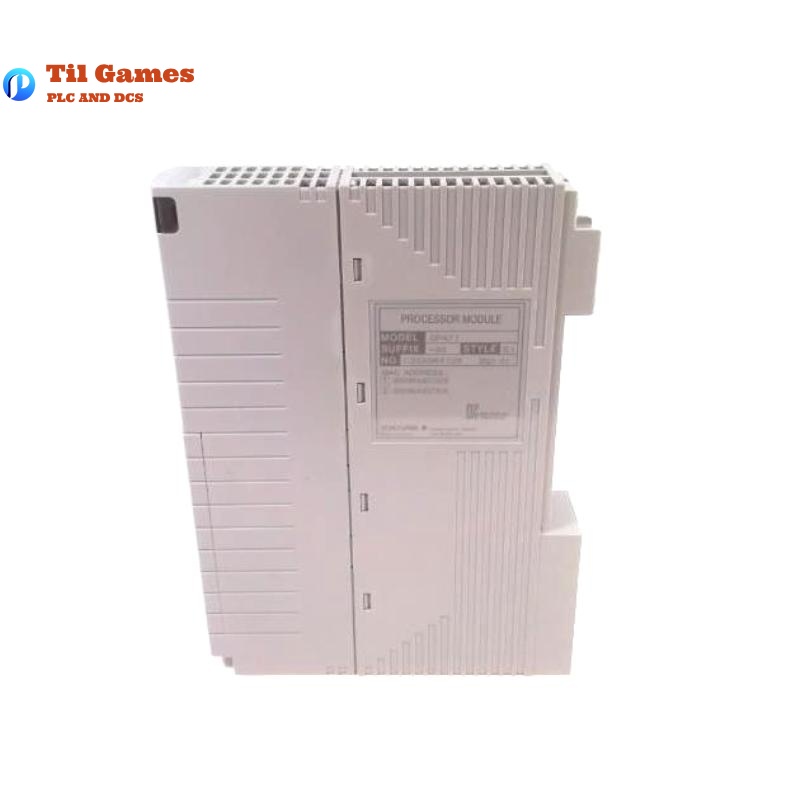

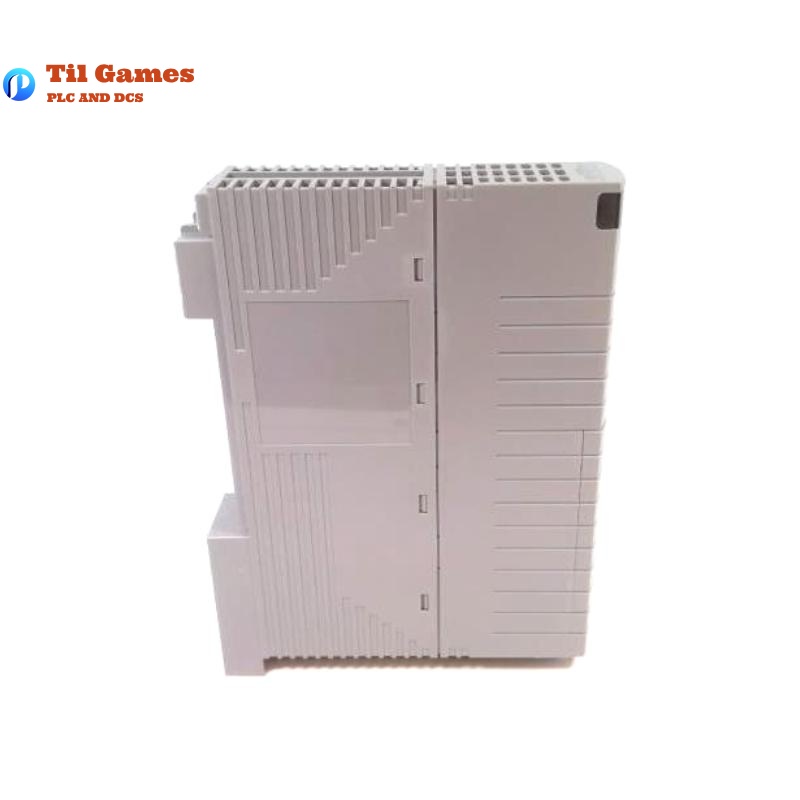

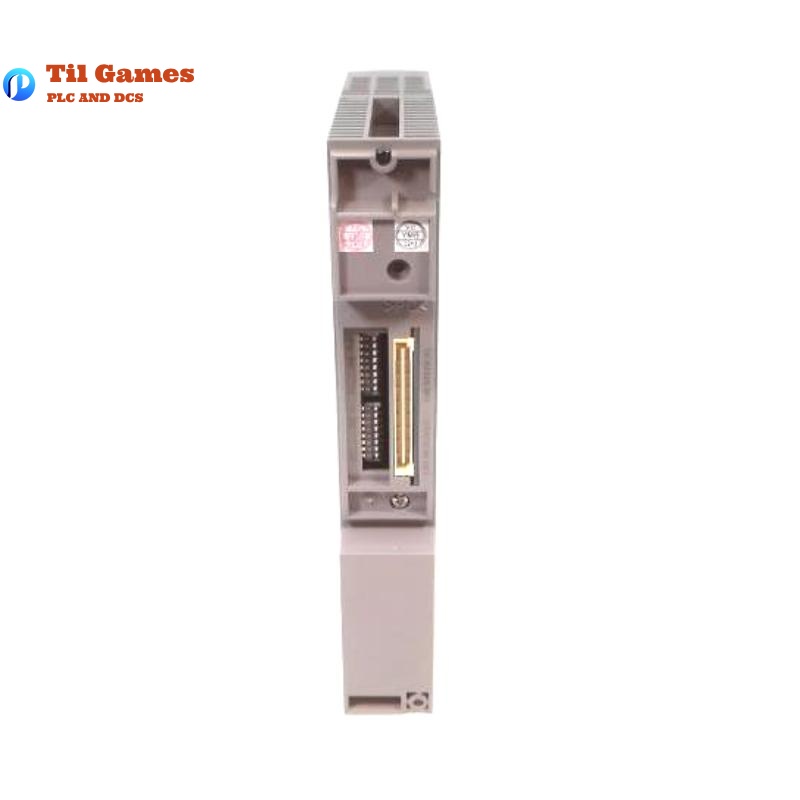

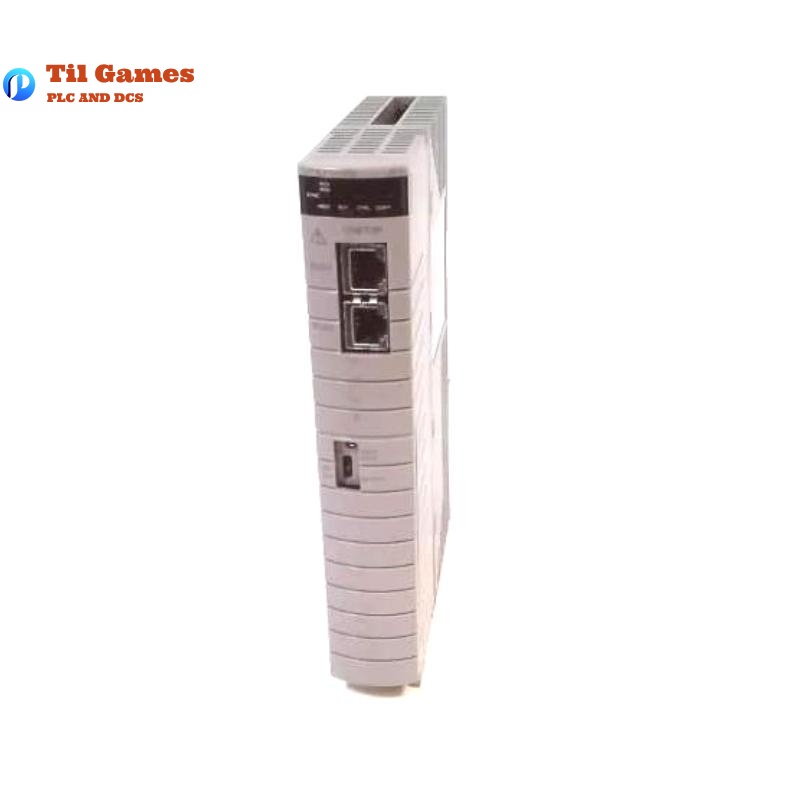

| Model | CP471-50 |
| Applicable System | CENTUM VP R6.05 or later (AFV30, AFV40, A2FV50, A2FV70) |
| Redundancy Support | Supported (dual-redundant configuration) |
| Installation | Mounted on CENTUM VP field control units |
| Environmental Req. | Refer to GS 33J01A10-01EN for system environmental standards |
| Dimensions (mm) | 32.8 x 149 x 199.5 mm |
| Weight | 0.7 kg (700 g) |
| Explosion Protection | Optional (with or without) |
| Compatible Units | Must be used with EC401 bus coupler module (Style S3 or later) |
| Hot Swapping | Supported under redundant configuration |
| Replacement Note | CP461 can be replaced with CP471, but only by authorized engineer |
FAQ
Frequently Asked Questions (FAQ)
Q1: Does CP471-50 support redundant configuration?
A1: Yes, CP471-50 supports dual-redundant configuration to enhance system reliability.
Q2: Can CP471-50 replace CP461 directly?
A2: It can replace CP461, but the replacement must be carried out by a Yokogawa authorized service engineer.
Q3: Is hot swapping available for CP471-50?
A3: Yes, hot swapping is supported in a dual-redundant setup by the user.
Q4: Is CP471-50 compatible with older EC401 modules?
A4: Only compatible with EC401 modules of Style S3 or later.
Q5: What are the physical dimensions of CP471-50?
A5: The module measures 32.8 x 149 x 199.5 mm.
Q6: What is the weight of the module?
A6: The weight is approximately 0.7 kg.
Q7: Which control unit models are compatible with CP471-50?
A7: Compatible models include AFV30, AFV40, A2FV50, and A2FV70.
Q8: Does CP471-50 offer explosion protection options?
A8: Yes, versions with and without explosion protection are available.
