Technical Specifications
| Parameter | Specification |
|---|---|

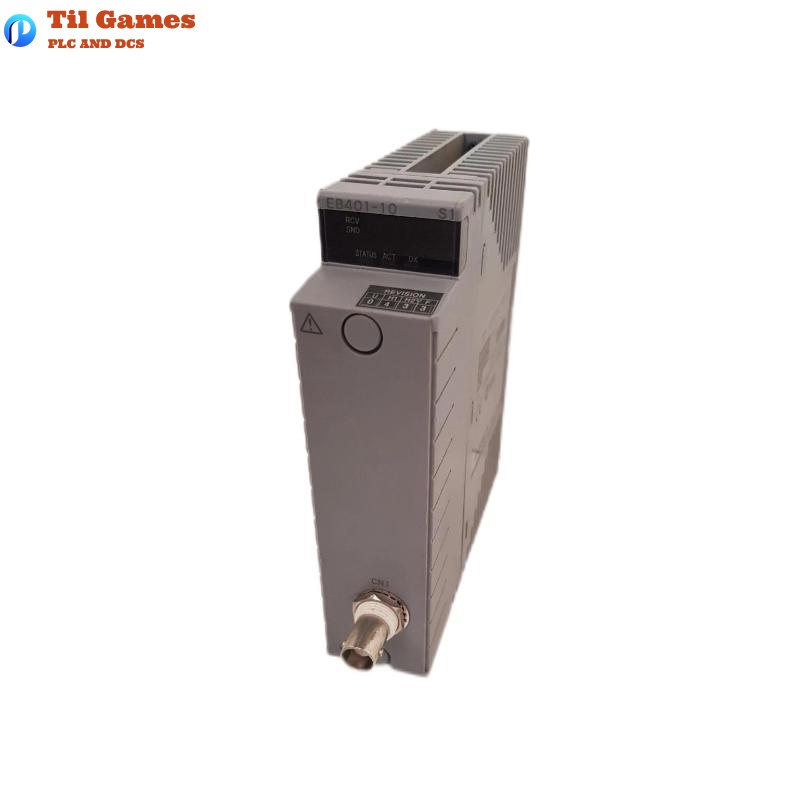

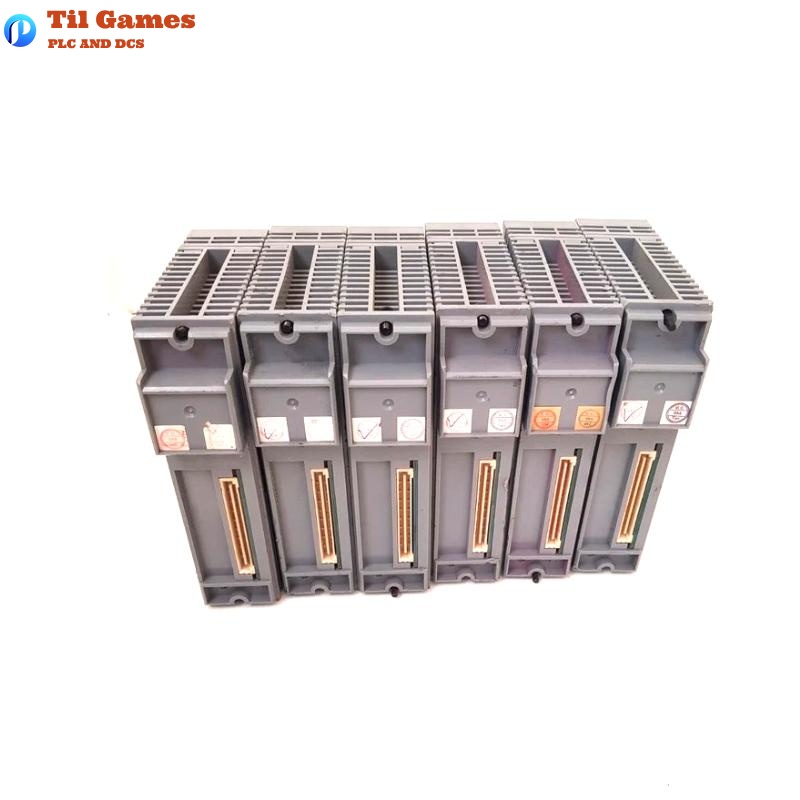

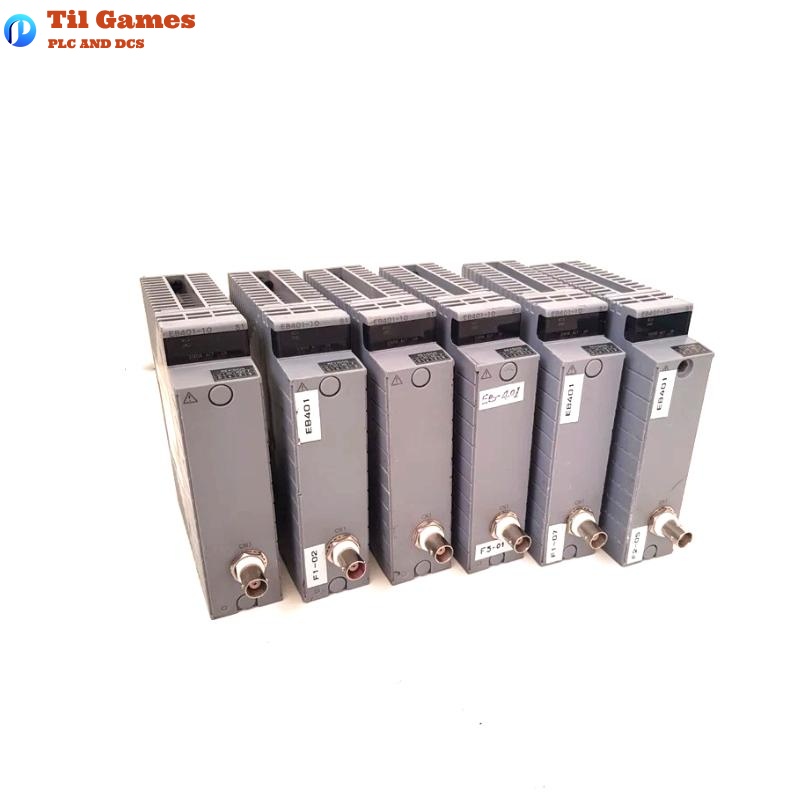

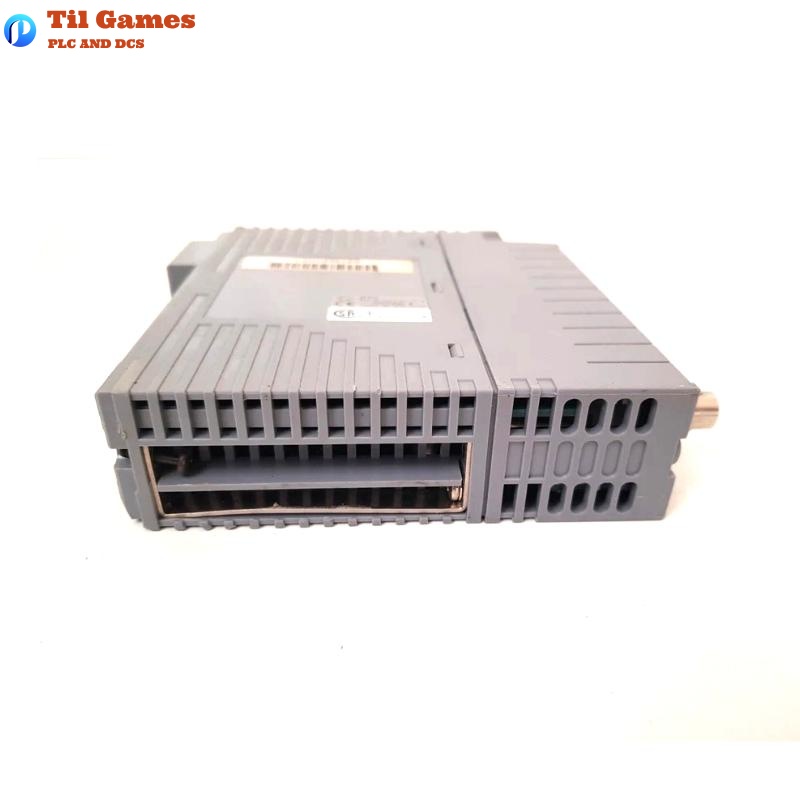

| Model | EB401-10 S1 |
| Function | ER Bus Interface Master Module |
| Interface Type | IEEE802.3 10BASE2 (1 port) |
| Connector | BNC |
| Communication Speed | 10 Mbps |
| Maximum Transmission Distance | 185 m (with YCB141 cable) |
| Installed In | ESB Bus Node Unit (ANB10S, ANB10D), Compact Field Control Unit (AFF50S, AFF50D, AFV10S, AFV10D) |
| Dual Redundancy | Supported (dual modules required) |
| Current Consumption | 0.7 A |
| Dimensions (W x H x D) | 144.65 x 130 x 32.8 mm |
| Weight | 0.3 kg |
| Standard Type Options | -5 (Standard, no explosion protection) -E (Explosion protection) 0 (Always 0) 1 (ISA Standard G3 option) |
| Supplied Accessories | 1× T-type Connector (YCB146), 2× Terminator (YCB148) |
FAQ
FAQ
Q1: What is the main function of the EB401-10 S1 ER Bus Interface Master Module?
A1: The EB401-10 S1 acts as a communication bridge between the ESB Bus Node Unit or Compact Field Control Unit and remote ER Bus Node Units using the ER bus.
Q2: What type of physical interface does the EB401-10 S1 use?
A2: It uses IEEE802.3 10BASE2 (coaxial) with a BNC connector.
Q3: What is the maximum transmission distance supported by the module?
A3: The module supports a maximum transmission distance of 185 meters when using YCB141 cable.
Q4: Is dual-redundant configuration possible with this module?
A4: Yes, dual redundancy can be achieved by installing two EB401 modules.
Q5: In which units can the EB401-10 S1 module be installed?
A5: It can be installed in ESB Bus Node Units (ANB10S, ANB10D) and Compact Field Control Units (AFF50S, AFF50D, AFV10S, AFV10D).
Q6: What accessories are included with the EB401-10 S1?
A6: One T-type Connector (YCB146) and two Terminators (YCB148) are supplied with each module.
Q7: What is the current consumption of the module?
A7: The current consumption is 0.7 A.
Q8: What are the dimensions and weight of the EB401-10 S1?
A8: The dimensions are 144.65 x 130 x 32.8 mm, and the weight is 0.3 kg.
