Technical Specifications
| Parameter | Specification |
|---|---|

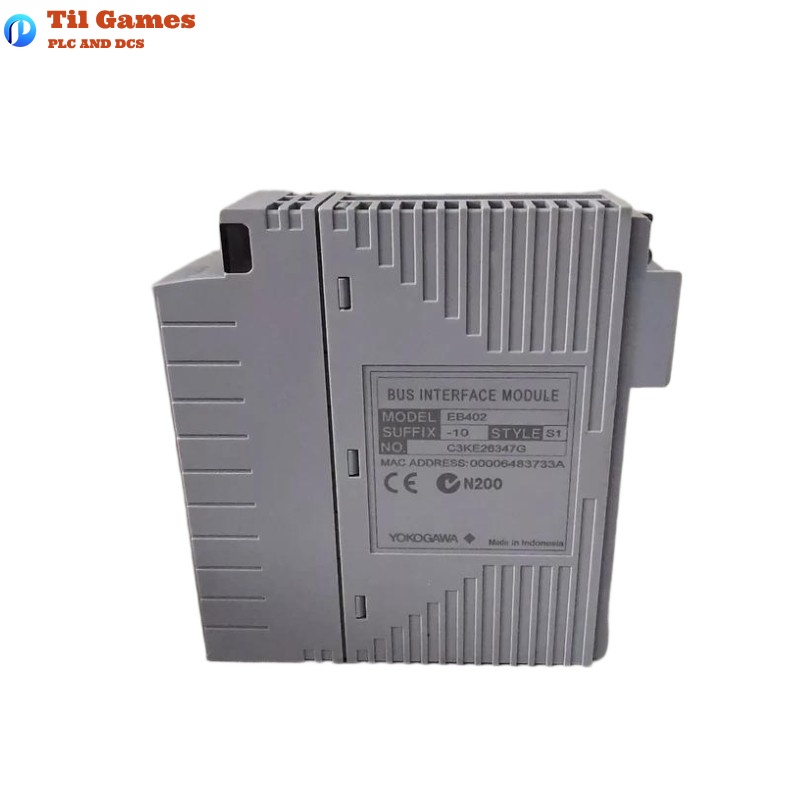

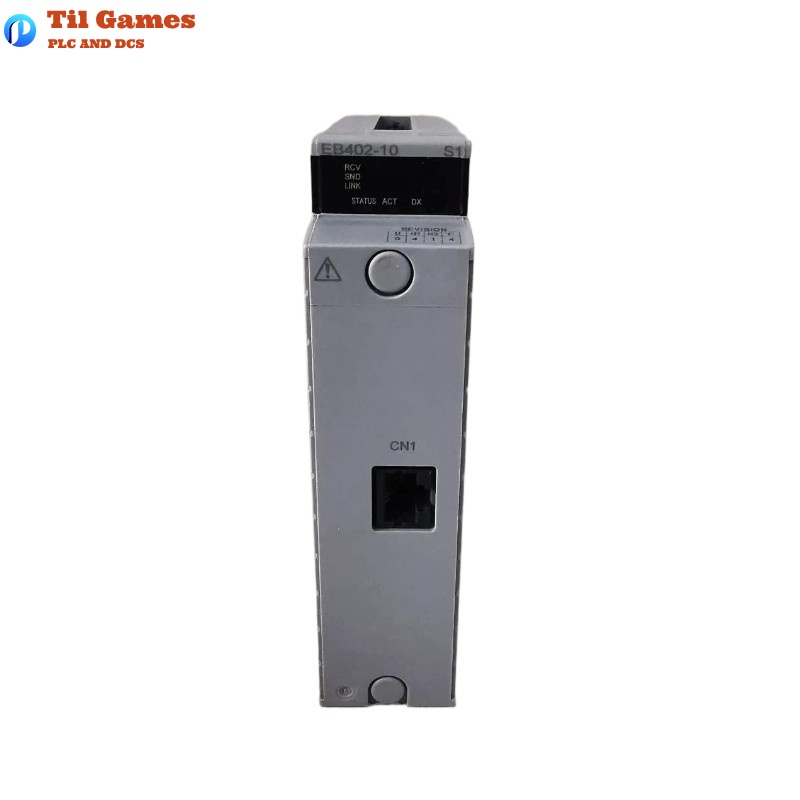

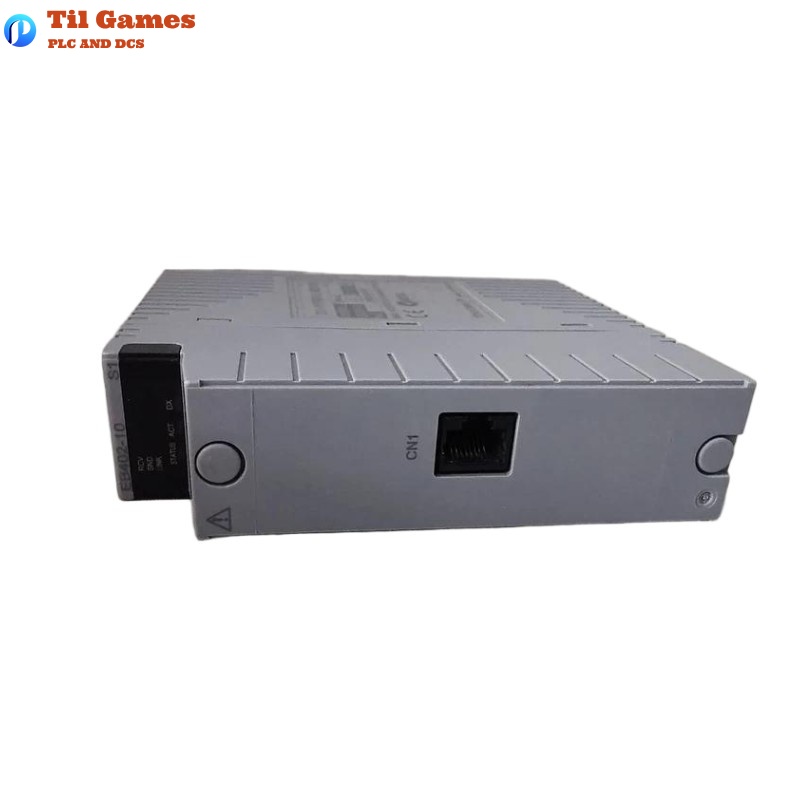

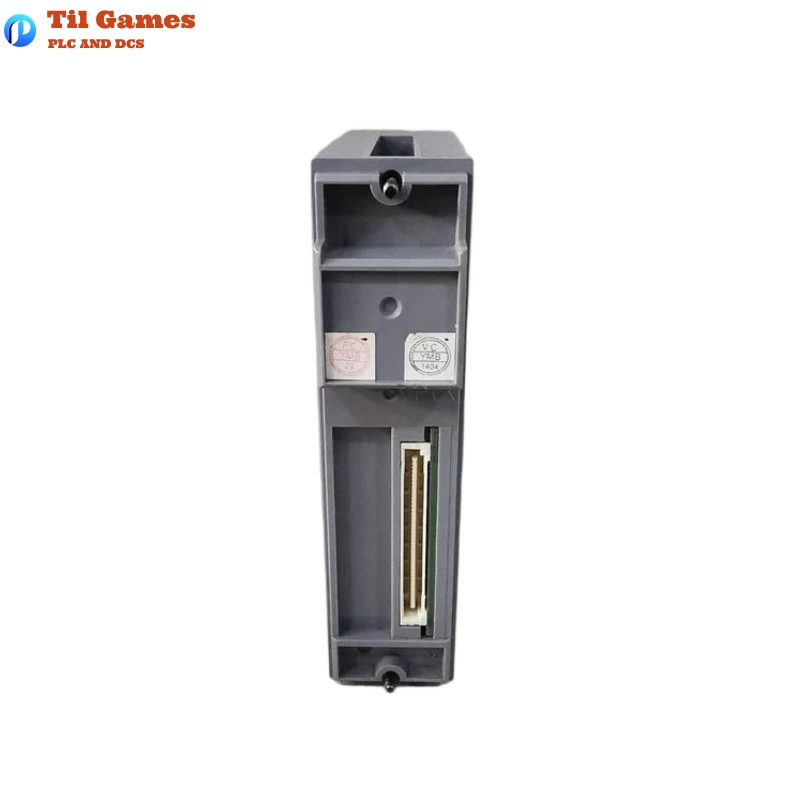

| Product Model | EB402-10 |
| Product Type | ESB Bus Coupler Module |
| Dimensions | 144.65 x 130 x 32.8 mm |
| Weight | 0.3 kg |
| Installation | Rack Mounting |
| Operating Voltage | 5 V DC (supplied from the main system) |
| Power Consumption | Approx. 2.5 W |
| Operating Temperature | 0 to 50°C |
| Storage Temperature | -20 to 70°C |
| Relative Humidity | 5% to 95% RH (non-condensing) |
| Certification | CE, ATEX, IECEx (for hazardous locations) |
| Communication Bus | ESB Bus |
| Material | Flame-resistant resin |
| Application | Industrial control system, DCS network |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the primary function of the EB402-10 ESB Bus Coupler Module?
A1: The EB402-10 is used to connect and communicate between ESB bus networks within a Yokogawa CENTUM series control system.
Q2: What are the installation requirements for this module?
A2: The module is designed for rack mounting and must be installed in a control cabinet with proper grounding and ventilation.
Q3: What certifications does this module have for use in hazardous areas?
A3: It complies with CE, ATEX, and IECEx certifications, supporting safe use in hazardous environments.
Q4: What is the power supply requirement for the EB402-10?
A4: The module operates on 5 V DC supplied from the system rack, with a typical power consumption of around 2.5 W.
Q5: What is the recommended operating temperature range?
A5: The module operates reliably between 0 and 50°C.
Q6: What materials are used in the construction of the EB402-10?
A6: The body is made from flame-resistant resin suitable for industrial environments.
Q7: What is the typical application scenario for this module?
A7: It is mainly used in distributed control systems (DCS) for process automation and network coupling.
Q8: How should the module be maintained?
A8: Maintenance should be performed by qualified personnel, with periodic inspection and cleaning using a vacuum cleaner and soft cloth. Electrostatic precautions must be taken during handling.
