Technical Specifications
| Parameter | Specification |
|---|---|

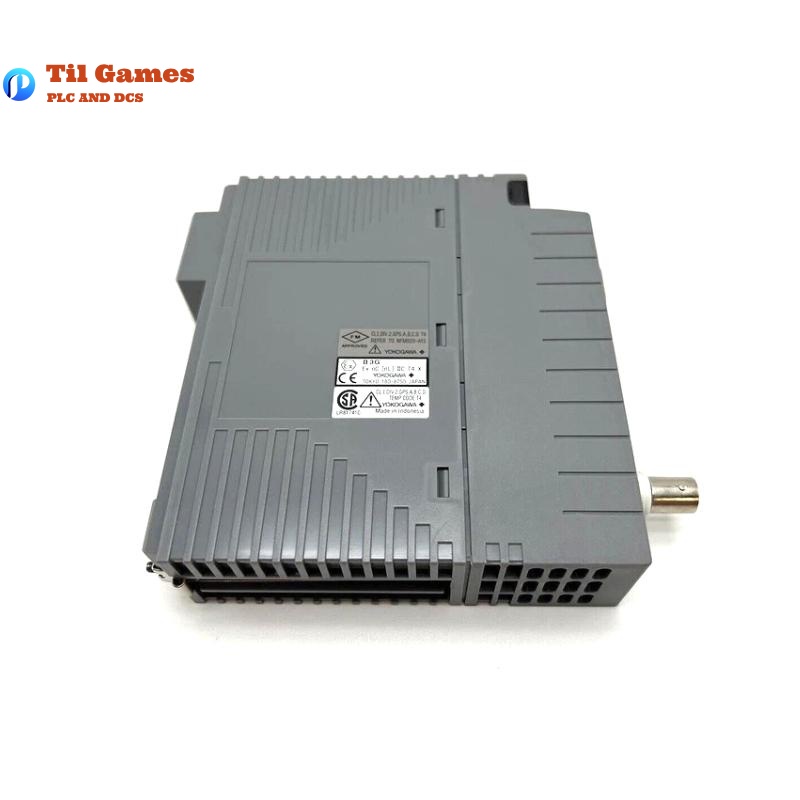

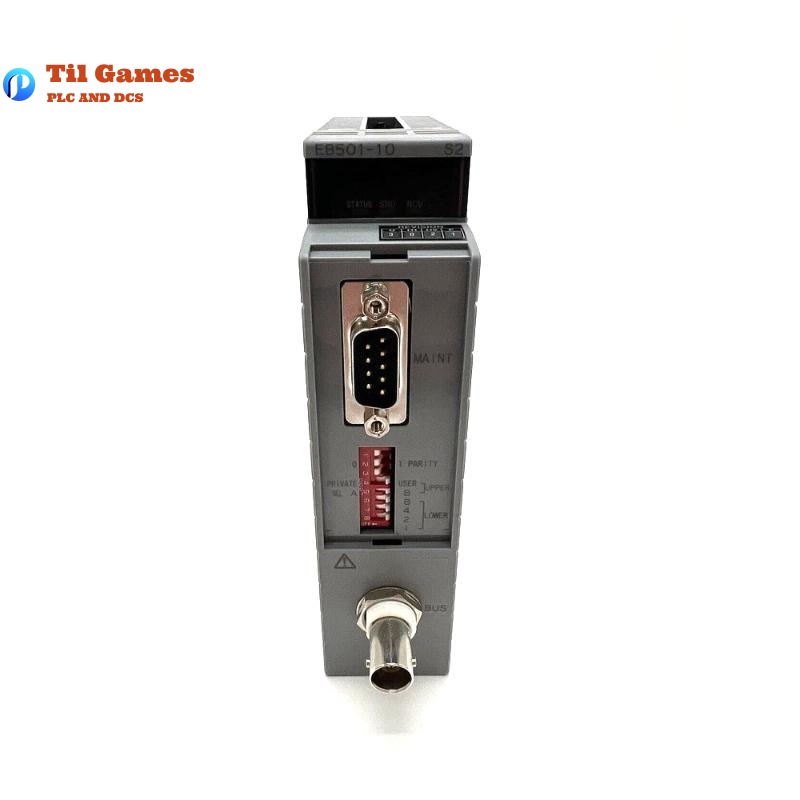

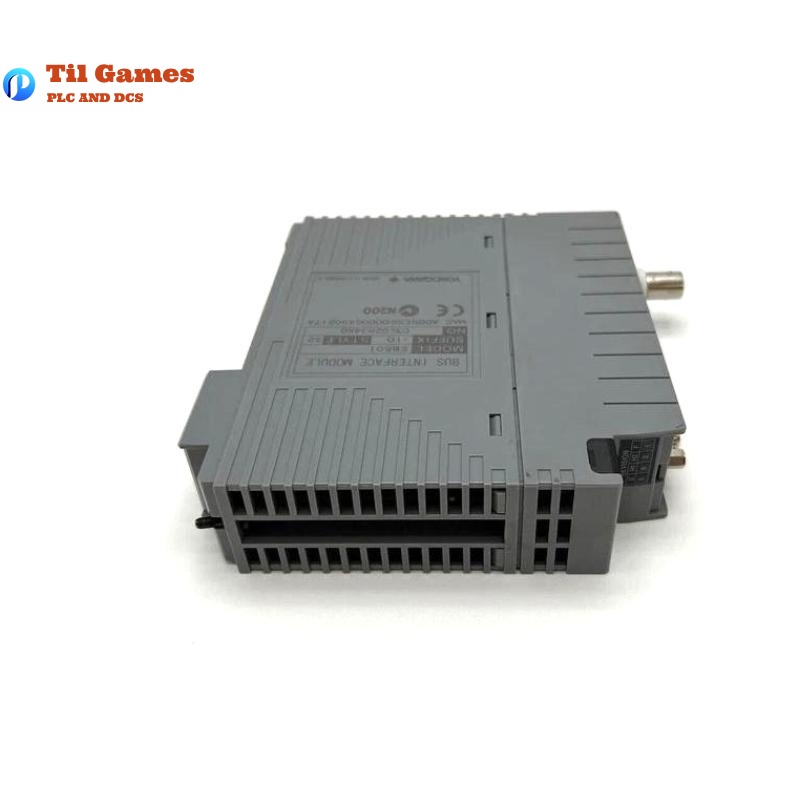

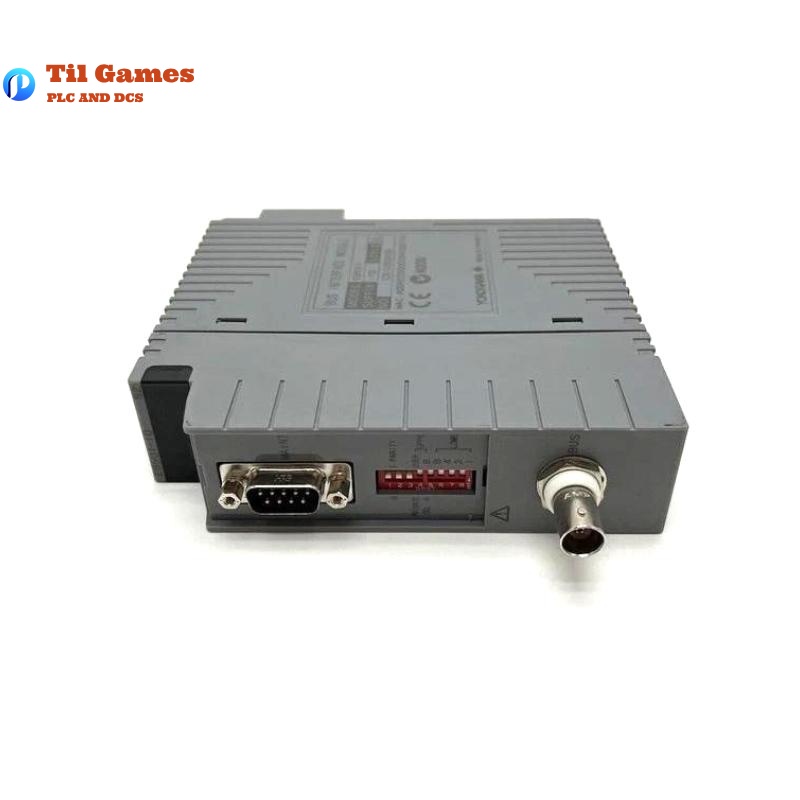

| Product Name | EB501-10 S2 Bus Interface Module |
| Application | Interface module for ESB Bus Node Unit |
| Bus Type | ESB Bus (Dual-redundant supported) |
| Power Supply Voltage | 5 V DC |
| Max Current Consumption | 500 mA (5 V DC) |
| Bus Transmission Speed | 128 Mbps |
| Transmission Path Redundancy | Supported |
| Transmission Topology | Bus topology |
| Transmission Distance | Max. 10 m (copper), up to 50 km (optical, with repeater) |
| Operating Temperature | 0 to 60 °C |
| Storage Temperature | -20 to 60 °C |
| Humidity Range | 5% to 95% RH, non-condensing |
| Mounting | Installed in ESB/Optical ESB Node Unit |
| Dimensions | 144.65 x 130 x 32.8 mm |
| Weight | 0.3 kg |
FAQ
FAQ
Q1: What is the function of the EB501-10 S2 module?
A1: It functions as a bus interface module in the ESB bus communication system, enabling communication between the Field Control Unit and Node Units.
Q2: Is the EB501-10 S2 module compatible with dual-redundant ESB systems?
A2: Yes, it supports dual-redundant ESB bus configurations for high availability.
Q3: What is the maximum transmission speed supported by the module?
A3: It supports a maximum transmission speed of 128 Mbps.
Q4: What is the operating temperature range for the EB501-10 S2 module?
A4: The module operates reliably within 0 to 60°C.
Q5: Can the EB501-10 S2 be used in systems with optical fiber transmission?
A5: Yes, when used with optical repeater modules such as ANT411 or ANT512, it supports optical connections up to 50 km.
Q6: What is the module’s power requirement?
A6: The EB501-10 S2 requires 5 V DC and consumes a maximum of 500 mA.
Q7: Where is the module installed?
A7: It is installed in ESB Bus Node Units, either ANB10 or ANB11.
Q8: What environmental protection standards does this module conform to?
A8: It meets CE Marking, CSA, and applicable EMC standards for industrial use.
