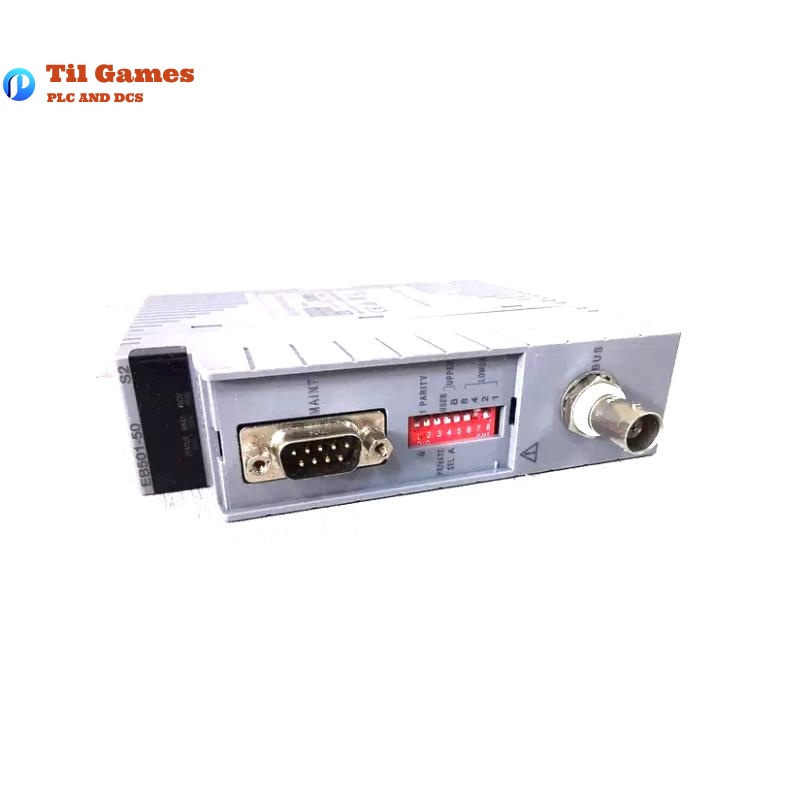

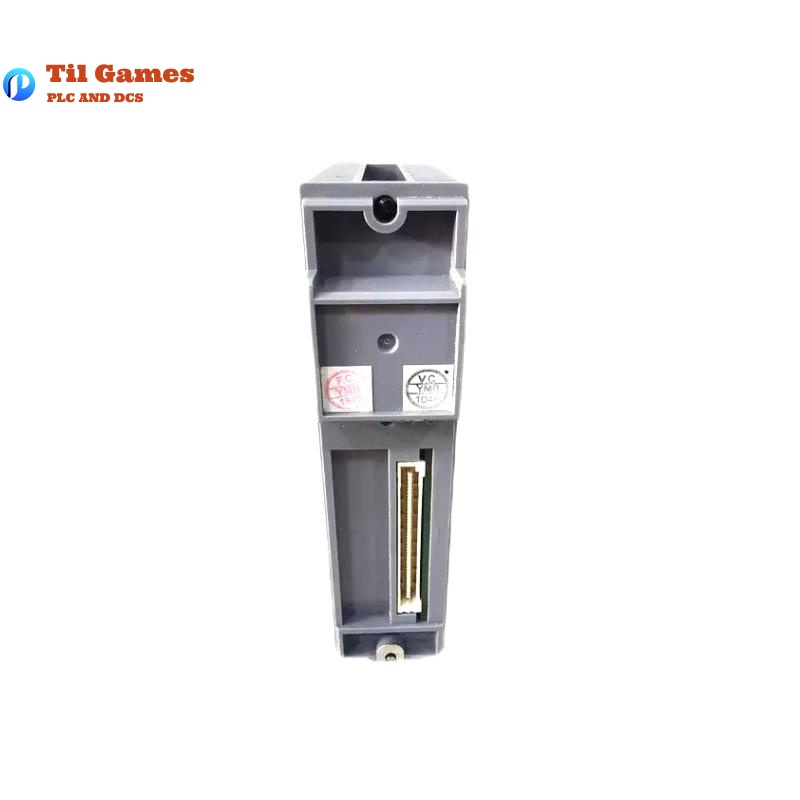

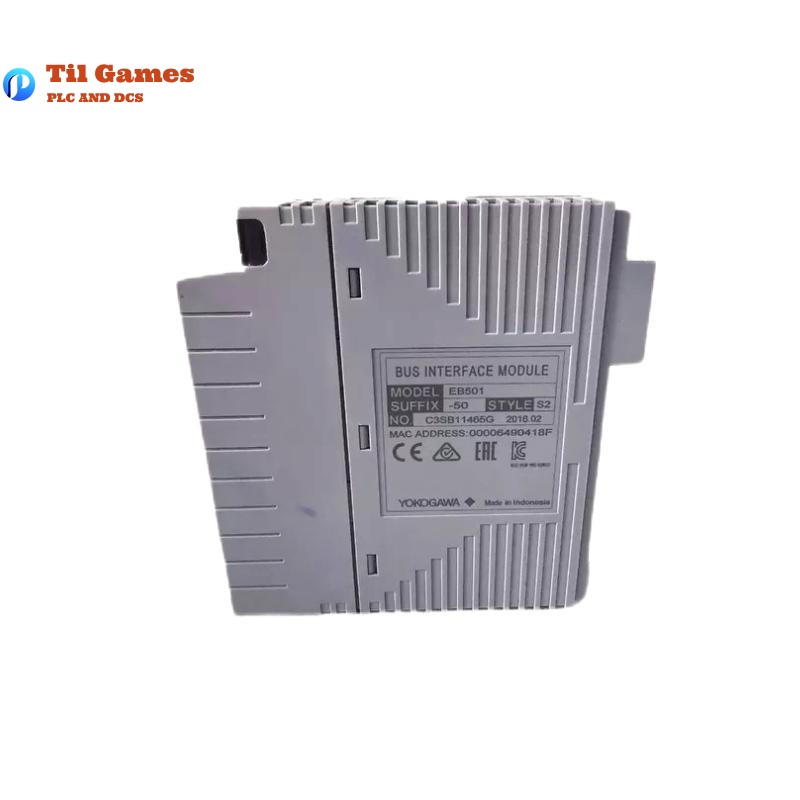

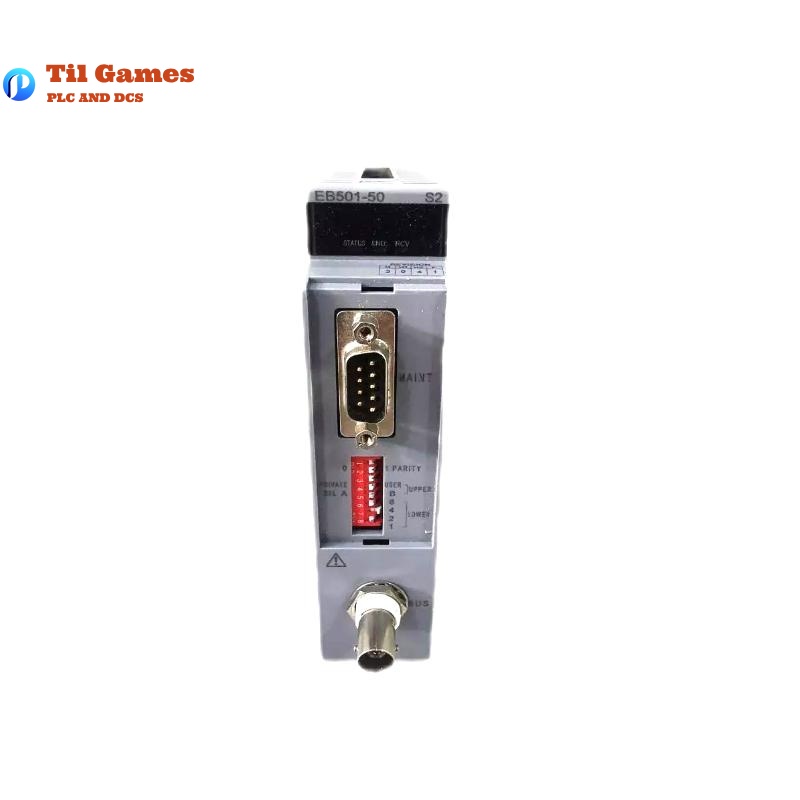

Yokogawa EB501-50 Bus Interface Module Technical Specifications
| Parameter | Specification Description |
|---|---|
| Model | EB501-50 |
| Function | Bus interface module for connecting ESB/ER buses |
| Supply Voltage | 5 V DC |
| Max Current Consumption | 700 mA |
| Communication Speed | 128 Mbps (ESB bus), 10 Mbps (ER bus) |
| Communication Method | Redundant bus transmission (Bus topology) |
| Installation | To be installed in ANB10, ANB11, or ANR10 units |
| Operating Temp. Range | 0 to 60°C |
| Storage Temp. Range | -20 to 60°C |
| Humidity Range | 5 to 95% RH, non-condensing |
| Vibration Resistance | Continuous vibration ≤ 2.0 m/s²; Transport shock ≤ 98.0 m/s² |
| EMC Immunity | Electric field ≤ 3 V/m, static discharge ≤ 8 kV |
| Communication Distance | Max. 10 m (standard), up to 50 km (optical fiber) |
| Dimensions (mm) | 144.65 x 130 x 32.8 mm |
| Weight | 0.3 kg |
FAQ
Frequently Asked Questions
Q1: What is the main function of the EB501-50?
A1: It serves as a bus interface module to connect ESB or ER buses in the Yokogawa FIO system.
Q2: Does it support redundant bus communication?
A2: Yes, it supports redundant communication on ESB or ER buses for high system reliability.
Q3: Which units can this module be installed in?
A3: It can be installed in ANB10, ANB11, and ANR10 node units.
Q4: What type of communication cable is used?
A4: It uses dedicated YCB301 cable or LC-type optical fiber cable compliant with IEC standards.
Q5: What is the operating temperature range?
A5: 0 to 60°C during operation, -20 to 60°C for storage.
Q6: What is the maximum communication distance?
A6: Up to 10 meters with standard cable, up to 50 km with optical repeater.
Q7: Is it EMC-compliant?
A7: Yes, it complies with industrial EMC standards, with electric field immunity up to 3 V/m and static discharge up to 8 kV.
Q8: Does it support hot-swapping?
A8: No, the system must be powered down before replacing the module.
