Technical Specifications
| Parameter | Specification |
|---|---|

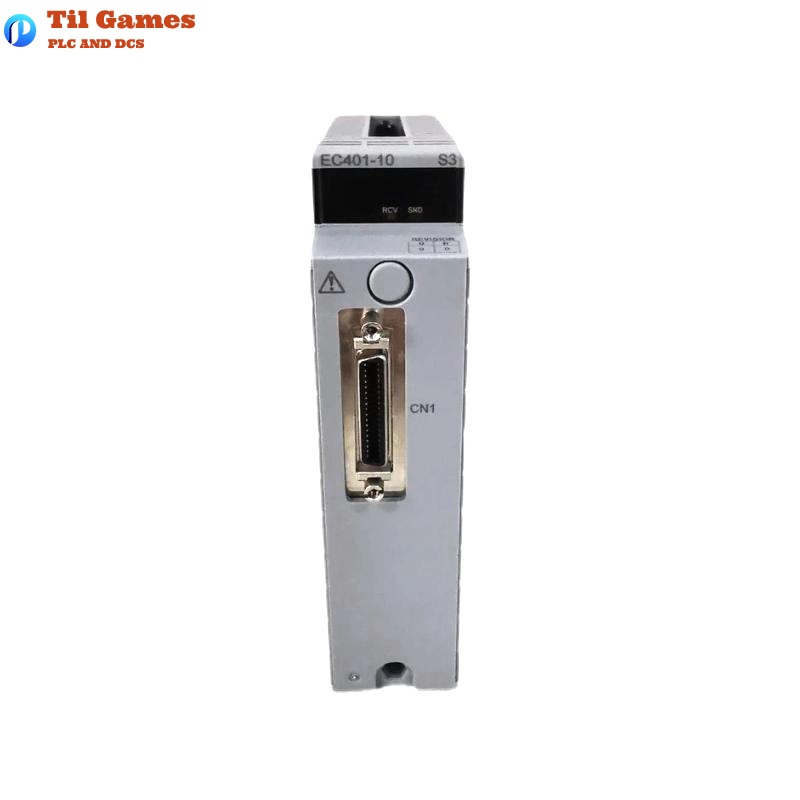

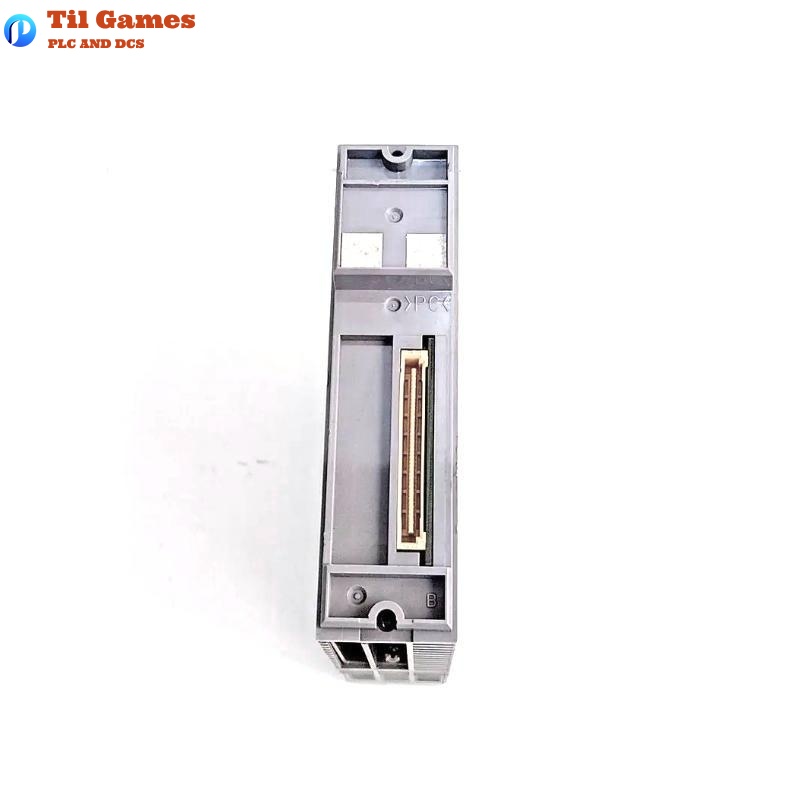

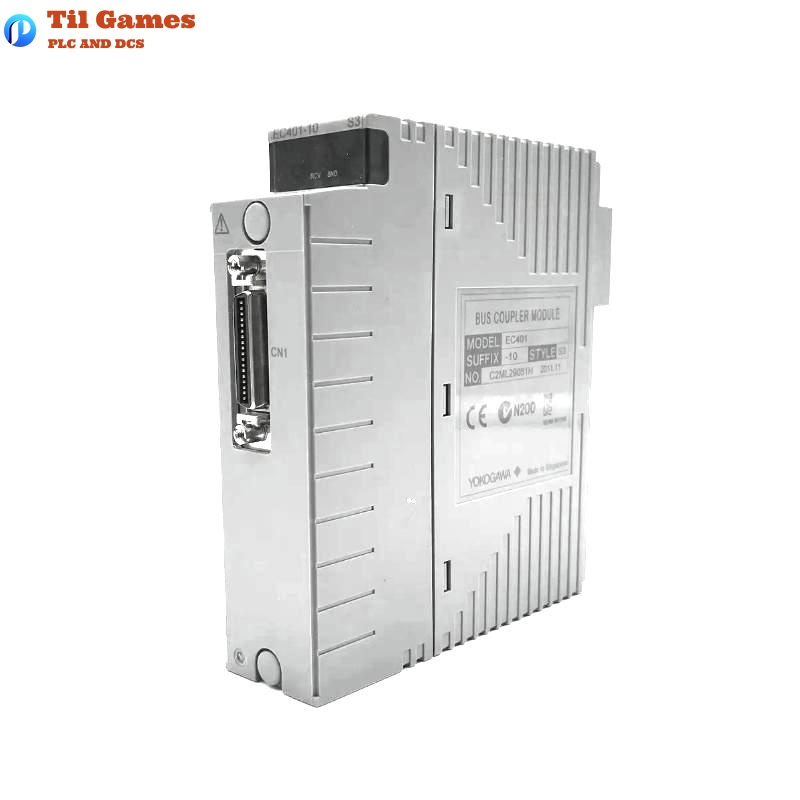

| Model | EC401-10 |
| Function | ESB bus interface function |
| Number of connectable units | Maximum 9 units (ANB10S, ANB10D, ANT401, ANT411, ANT421) |
| Transmission speed | 128 Mbps (I/O module data transmission) |
| Transmission distance | Maximum 10 m |
| Current consumption | 0.5 A |
| Dimensions (W x H x D) | 130 x 129.5 x 32.8 mm |
| Weight | 0.24 kg |
| Applicable Units | AFV30S, AFV30D, AFV40S, AFV40D, A2FV50S, A2FV50D, A2FV70S, A2FV70D |
| Slot Installation | Slot 7 (single), Slot 7 & 8 (dual redundant) |
| Style Code Requirement | S3 or later (for use with CP471) |
| Explosion Protection | -5 (None), -E (With protection) |
FAQ
FAQ
Q1: What is the main function of the Yokogawa EC401-10 ESB Bus Coupler Module?
A1: The main function is to serve as a communication module, connecting the Field Control Unit and the Node Unit through the ESB bus.
Q2: How many units can be connected to the EC401-10 module?
A2: The EC401-10 can connect up to 9 units, including models such as ANB10S, ANB10D, ANT401, ANT411, and ANT421.
Q3: What is the transmission speed of the EC401-10 ESB Bus Coupler Module?
A3: The transmission speed is 128 Mbps for I/O module data transmission.
Q4: What is the maximum transmission distance supported by the EC401-10?
A4: The maximum transmission distance is 10 meters.
Q5: What are the installation requirements for the EC401-10 module?
A5: For non-redundant ESB bus, install in slot 7; for dual-redundant ESB bus, install in both slot 7 and slot 8 of the Field Control Unit.
Q6: What is the current consumption of this module?
A6: The current consumption is 0.5 A.
Q7: What are the external dimensions and weight of the EC401-10?
A7: The dimensions are 130 x 129.5 x 32.8 mm and the weight is approximately 0.24 kg.
Q8: Which style code of EC401 is required for use with the CP471 processor module?
A8: Style code S3 or later is required to use the EC401 module with the CP471 processor module.
