Technical Specifications
| Parameter | Specification |
|---|---|

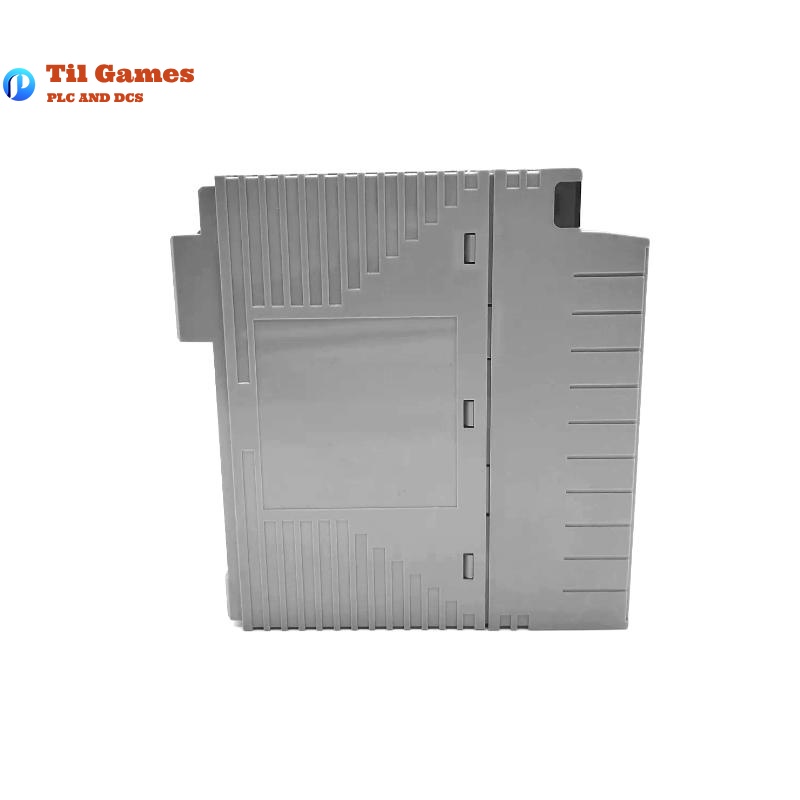

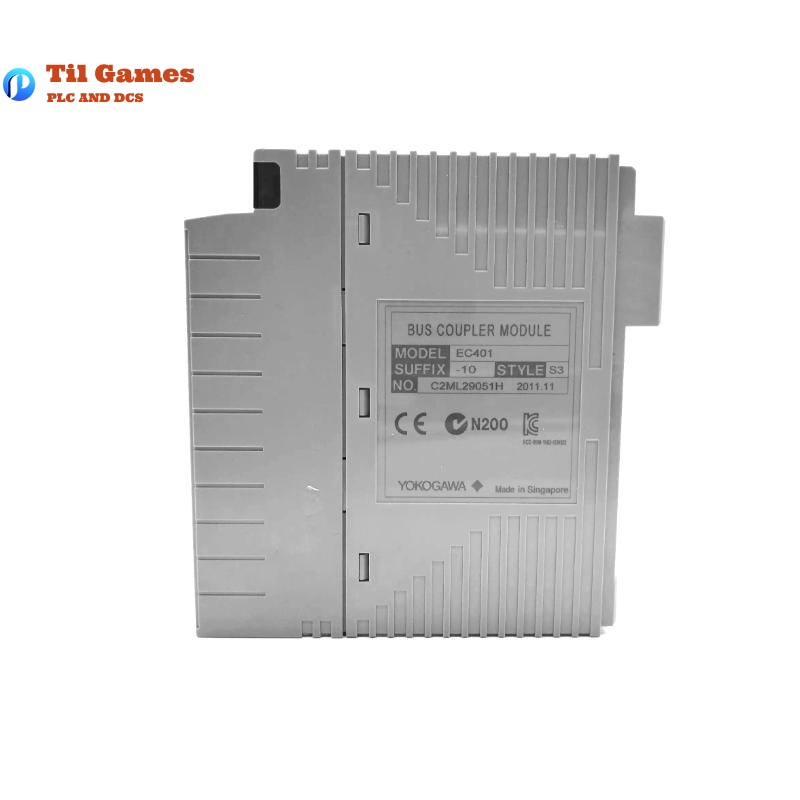

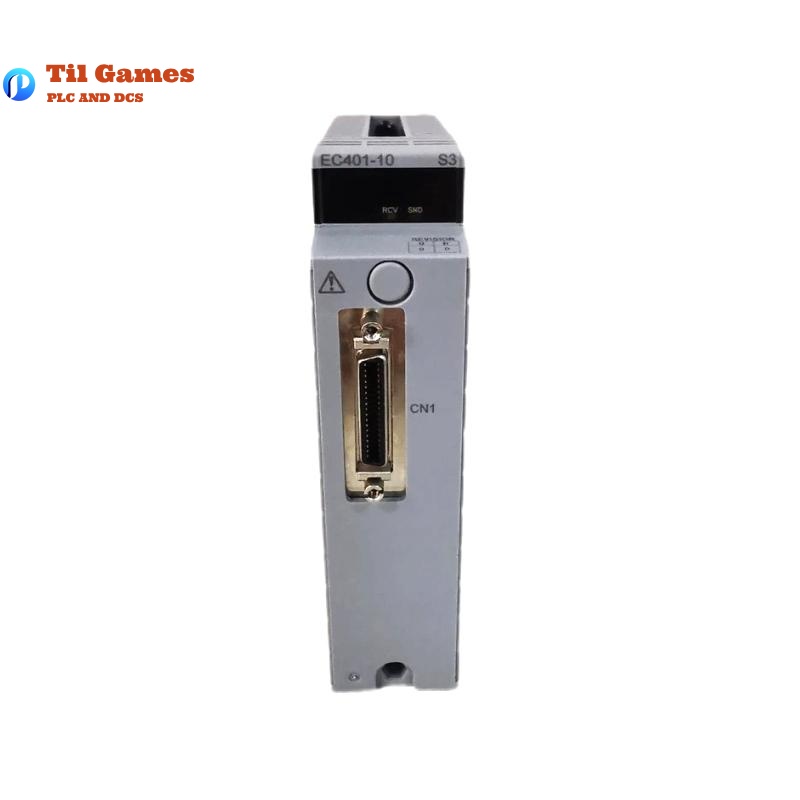

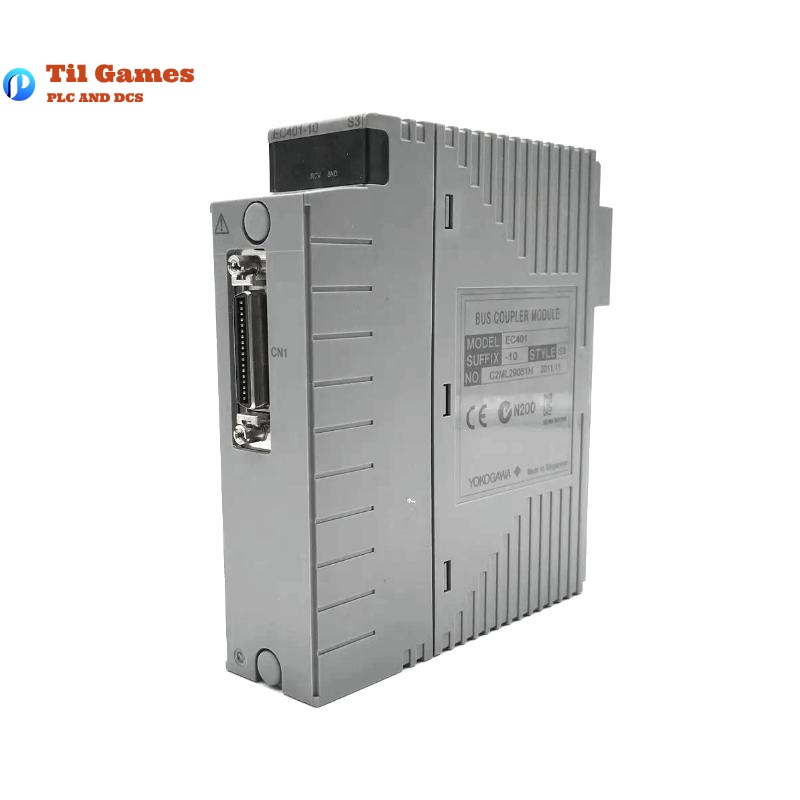

| Model | EC401-10 S3 |
| Function | ESB Bus Interface Function |
| Compatible Systems | AFV30S, AFV30D, AFV40S, AFV40D, A2FV50S/D, A2FV70S/D |
| Bus Type | ESB Bus (1-Port) |
| Transmission Speed | 128 Mbps |
| Max Transmission Distance | 10 meters |
| Max Number of Node Units | 9 units (ANB10S/D, ANT401, ANT411, ANT421) |
| Installation Slot (non-redundant) | Slot 7 only |
| Installation Slot (redundant) | Slot 7 and 8 (dual modules) |
| Power Consumption | 0.5 A |
| Dimensions (W x H x D) | 130 x 129.5 x 32.8 mm |
| Weight | Approx. 0.24 kg |
| Compatible with CP471 | Yes (Style S3 or later only) |
| SEM (Sequence of Events) Support | Style 2 or later only |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the main function of the EC401-10 S3 module?
A1: It serves as an ESB bus interface between the Field Control Unit and the Node Unit.
Q2: How many node units can be connected to a single EC401 module?
A2: A maximum of 9 node units can be connected.
Q3: What transmission speed does the EC401 support?
A3: It supports a data transmission speed of 128 Mbps.
Q4: What is the maximum transmission distance for the ESB bus?
A4: The maximum transmission distance is 10 meters.
Q5: Can EC401 be used for redundant ESB bus configurations?
A5: Yes, by installing two modules in slot 7 and slot 8, a redundant ESB bus is supported.
Q6: Which style versions of EC401 support SEM features?
A6: Style 2 or later is required to use SEM (Sequence of Events Manager).
Q7: Is EC401-10 S3 compatible with CP471 processor module?
A7: Yes, but only if the EC401 is style S3 or later.
Q8: What are the physical dimensions and weight of the EC401 module?
A8: The module measures 130 x 129.5 x 32.8 mm and weighs approximately 0.24 kg.
