Technical Specifications
| Parameter | Description |
|---|---|

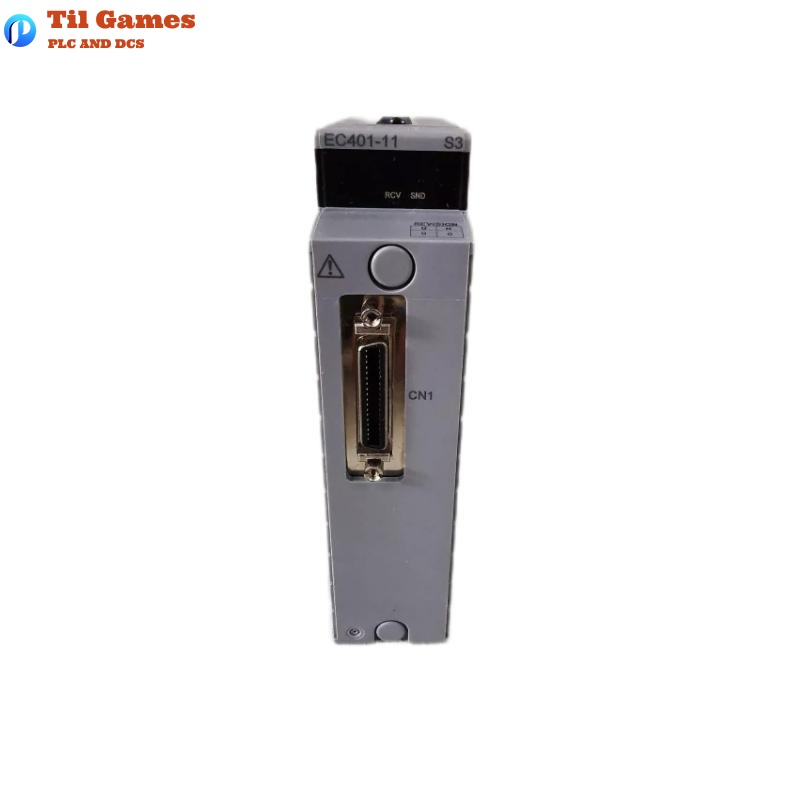

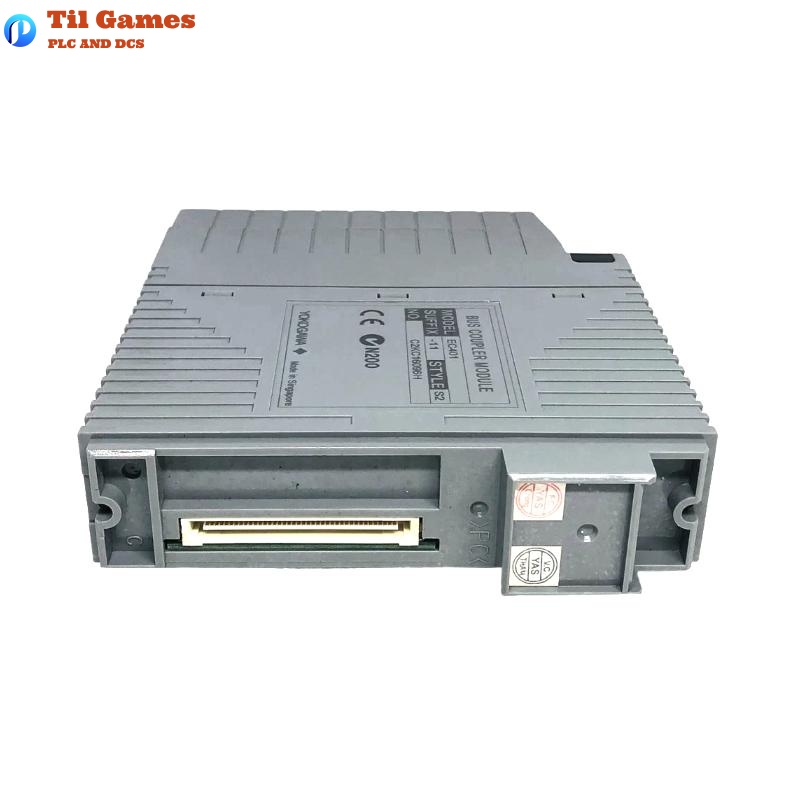

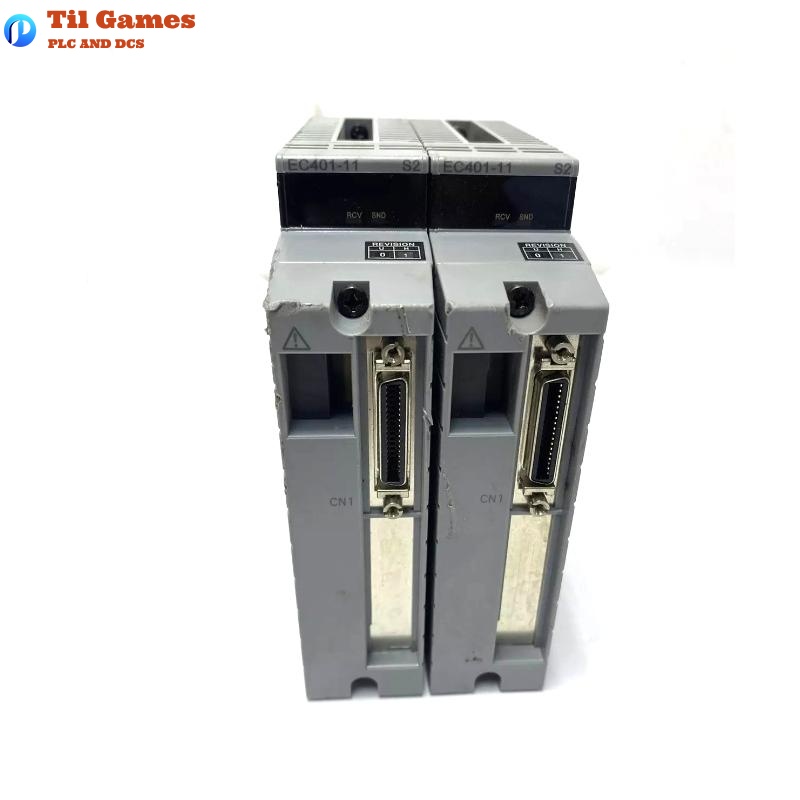

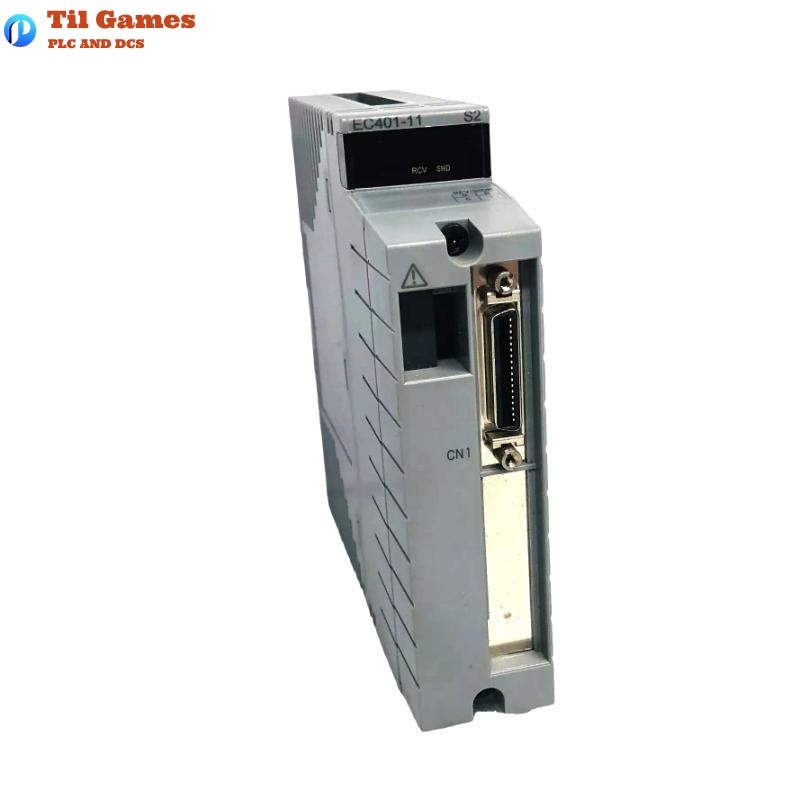

| Model | EC401-11 |
| Function | ESB bus interface function |
| Applicable | N-IO/FIO, 1-Port |
| Number of connectable units | Max. 9 units (ANB10S, ANB10D, ANT401, ANT411, ANT421) |
| Transmission speed | 128 Mbps (I/O module data transmission) |
| Transmission distance | Max. 10 meters |
| Current consumption | 0.5 A |
| Dimensions (W x H x D) | 130 x 129.5 x 32.8 mm |
| Weight | Approx. 0.24 kg |
| Slot for installation | Single redundant: Slot 7; Dual redundant: Slot 7 & 8 |
| SEM support | Style 2 or later only |
| Explosion-proof options | -5 Standard (non-explosion), -E Explosion-proof type |
FAQ
FAQ
Q1: What is the main function of the EC401-11?
A1: The EC401-11 serves as an ESB bus coupler module, enabling data communication between the field control unit and node units.
Q2: How many node units can be connected to this module?
A2: Up to 9 units of ANB10S, ANB10D, ANT401, ANT411, or ANT421 can be connected.
Q3: What is the data transmission speed of this module?
A3: The transmission speed is 128 Mbps for stable and high-speed I/O communication.
Q4: Which Field Control Unit models are compatible?
A4: Compatible with AFV30S, AFV30D, AFV40S, AFV40D, A2FV50S, A2FV50D, A2FV70S, and A2FV70D.
Q5: What is the maximum transmission distance supported?
A5: The maximum transmission distance is 10 meters, suitable for nearby field module connections.
Q6: What should be noted regarding slot installation?
A6: For single redundancy, install in slot 7; for dual redundancy, install in both slot 7 and slot 8.
Q7: What are the dimensions and weight of the module?
A7: Dimensions are 130 x 129.5 x 32.8 mm, and weight is approximately 0.24 kg.
Q8: Are there explosion-proof model options?
A8: Both standard type (-5, non-explosion proof) and explosion-proof type (-E) are available.
