Technical Specifications
| Parameter | Specification |
|---|---|

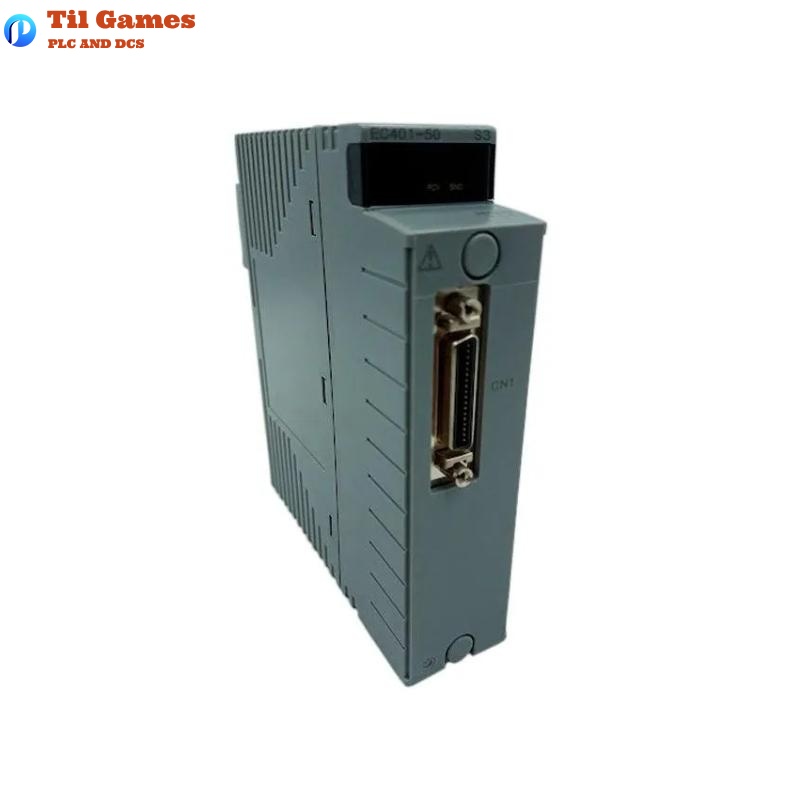

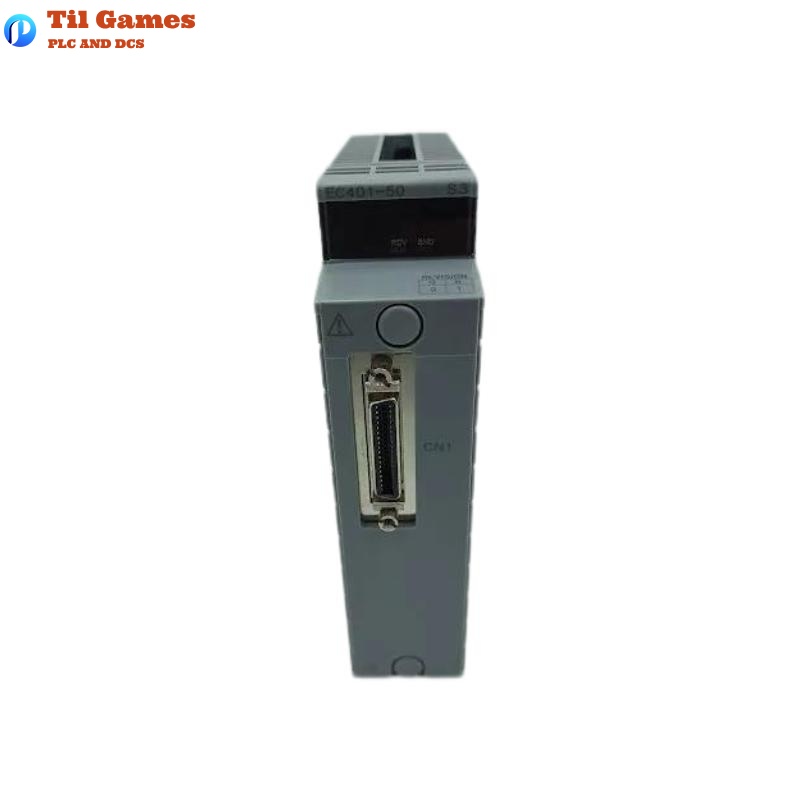

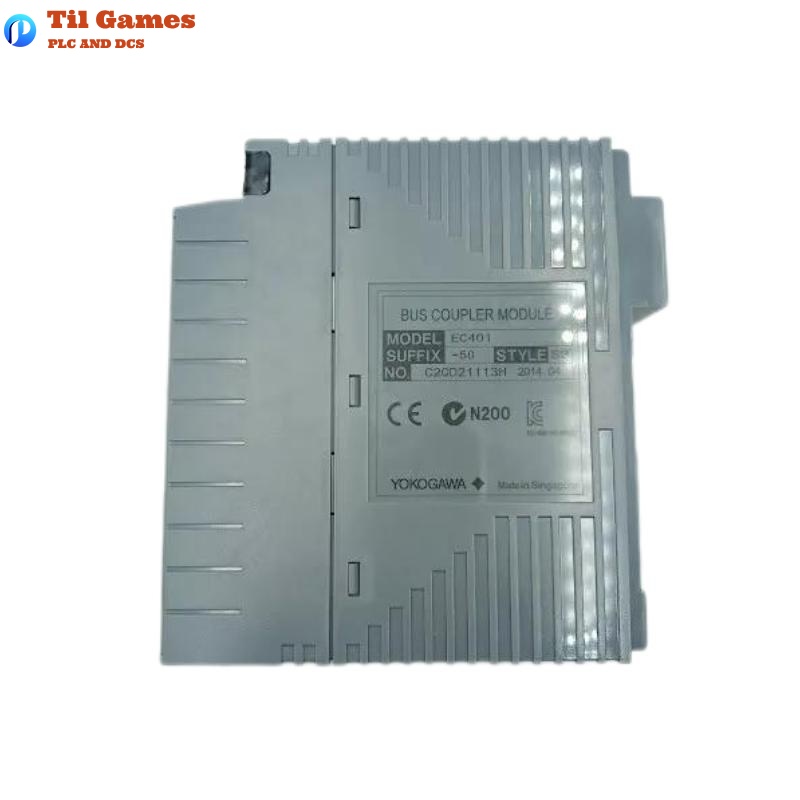

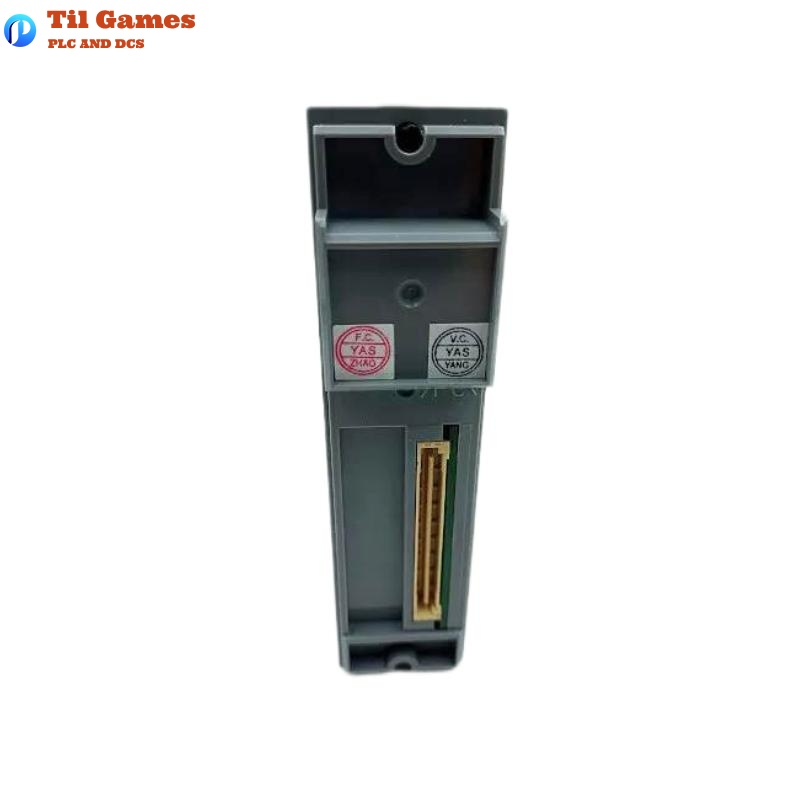

| Model | EC401-50 ESB Bus Coupler Module (for N-IO/FIO, 1-Port) |
| Function | ESB bus interface function |
| Number of connectable units | Up to 9 units (ANB10S, ANB10D, ANT401, ANT411, ANT421) |
| Transmission speed | 128 Mbps (I/O module data transmission) |
| Transmission distance | Maximum 10 meters |
| Current consumption | 0.5 A |
| Weight | Approx. 0.24 kg |
| Dimensions (W x H x D) | 130 mm × 129.5 mm × 32.8 mm |
| Installation slot | Slot 7 for non-redundant, Slot 7 & 8 for redundant configuration |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the function of the EC401-50 module?
A1: It serves as an ESB bus interface to connect the Field Control Unit and the Node Unit for communication.
Q2: How many units can be connected via the EC401-50?
A2: It supports connection of up to 9 units including models ANB10S, ANB10D, ANT401, ANT411, and ANT421.
Q3: What transmission speed does the EC401-50 support?
A3: It supports a transmission speed of 128 Mbps for I/O data.
Q4: What is the maximum communication distance supported?
A4: The maximum transmission distance is 10 meters.
Q5: What are the installation requirements for redundancy?
A5: For redundant configuration, install EC401 modules in both slot 7 and slot 8 of the Field Control Unit.
Q6: Is the EC401-50 compatible with all processor modules?
A6: Only EC401 modules with style code S3 or later are compatible with the CP471 processor.
Q7: What is the power consumption of the module?
A7: The current consumption is 0.5 A.
Q8: What are the physical dimensions and weight of the EC401-50?
A8: The dimensions are 130 × 129.5 × 32.8 mm, and the weight is approximately 0.24 kg.
