Technical Specifications
| Parameter | Description |
|---|---|

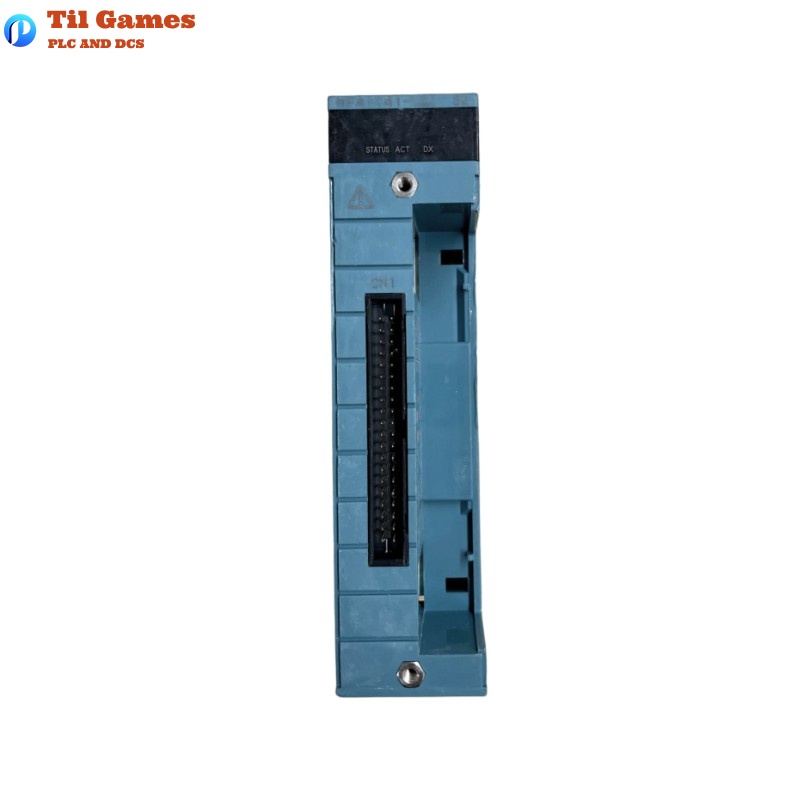

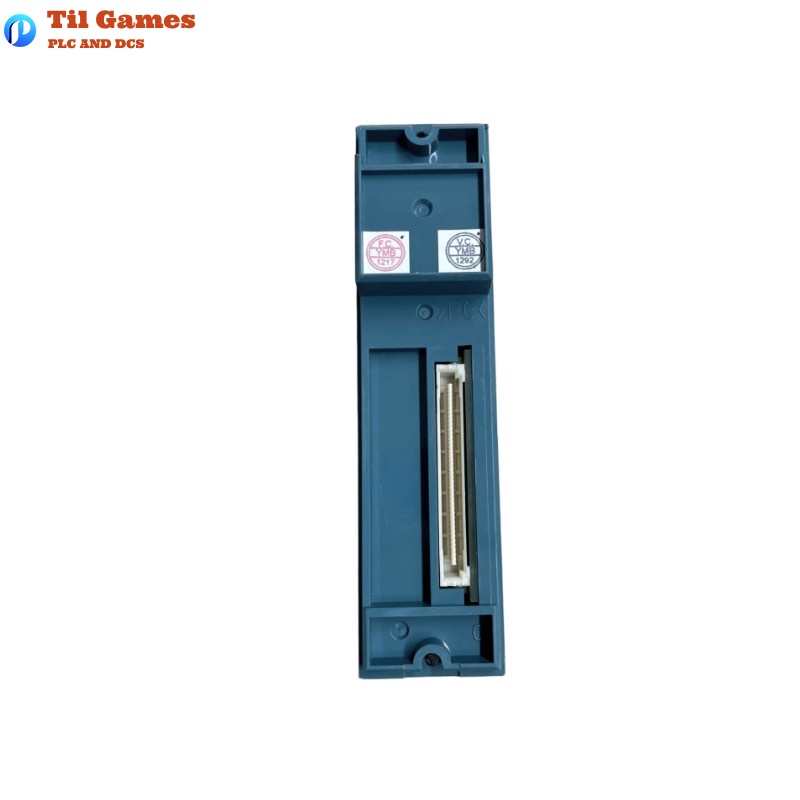

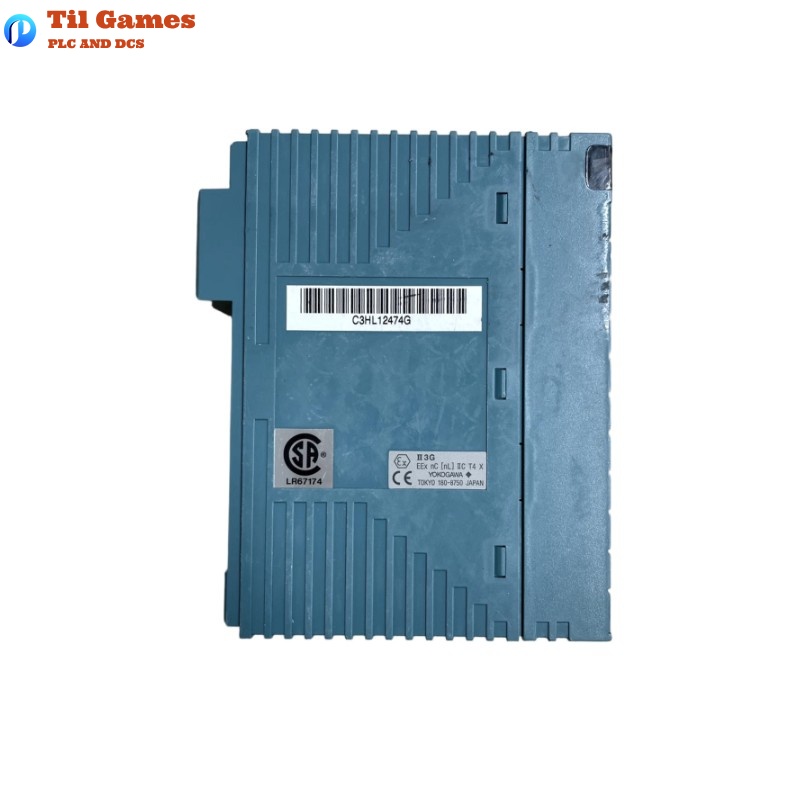

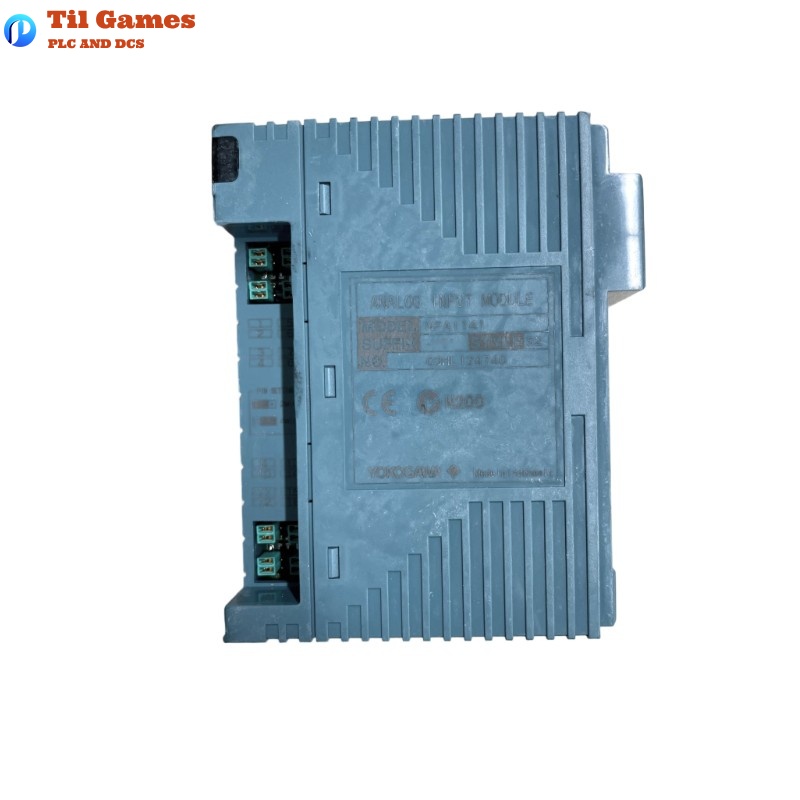

| Model | NFAI141-S50 |
| Module Type | Analog Input Module |
| Input Signal Type | 4 to 20 mA (Non-isolated) |
| Number of Channels | 16 channels |
| Connection Method | MIL 40-pin connector or Pressure Clamp Terminals |
| Terminal Block Type | NFTA4S (MIL 40-pin connector) |
| Terminal Type | Pressure clamp terminal block |
| Recommended Cable | 0.5 mm² to 2 mm² (AWG20 to AWG14) |
| Dimensions (WxHxD) | 130 x 129.5 x 32.8 mm |
| Weight | 0.24 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: How many analog input channels does the NFAI141-S50 support?
A1: It supports 16 non-isolated analog input channels.
Q2: What type of input signal is supported?
A2: It accepts 4 to 20 mA current input signals.
Q3: Are the input channels electrically isolated?
A3: No, the module does not support isolation between channels.
Q4: What terminal block model is compatible?
A4: The recommended terminal block is NFTA4S with a MIL 40-pin connector.
Q5: What are the available wiring options?
A5: Connection can be made using either a MIL connector cable or pressure clamp terminals.
Q6: What cable specifications are supported?
A6: The module supports industrial insulated wires from 0.5 mm² to 2 mm².
Q7: How is the module installed?
A7: It is designed to be installed in a standard I/O rack used with the STARDOM FCN controller.
Q8: What are the physical dimensions and weight of the module?
A8: Dimensions are 130 x 129.5 x 32.8 mm, and the weight is 0.24 kg.
