Technical Specifications
| Parameter | Description |
|---|---|

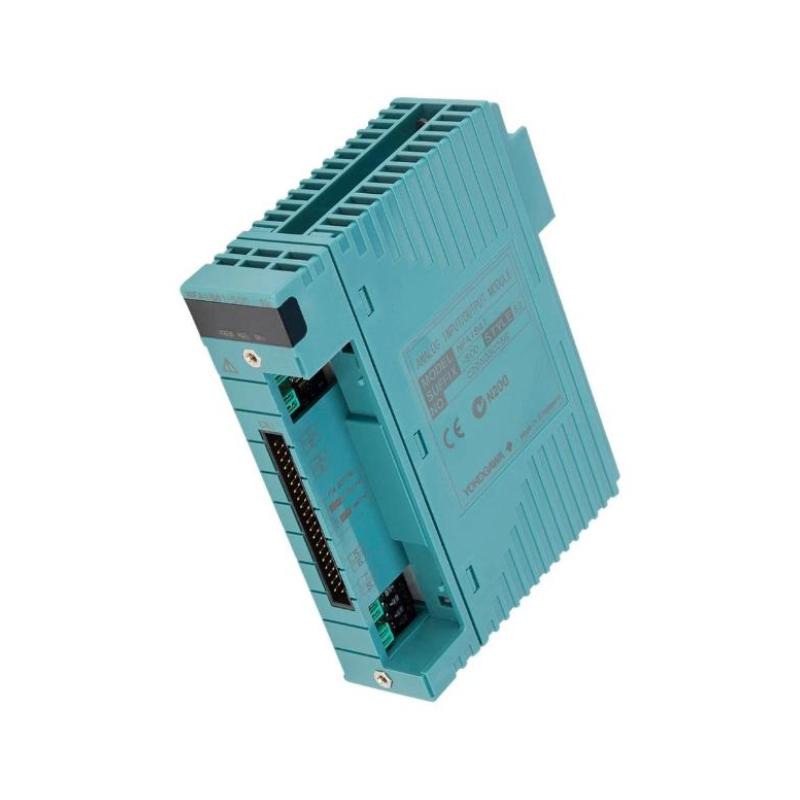

| Model Number | NFAI841-S50 |
| Type | Analog Input/Output Module |
| Input Channels | 8 channels (current input 4 to 20 mA, non-isolated) |
| Output Channels | 8 channels (current output 4 to 20 mA, non-isolated) |
| Input Accuracy | ±0.1% F.S. |
| Output Accuracy | ±0.1% F.S. |

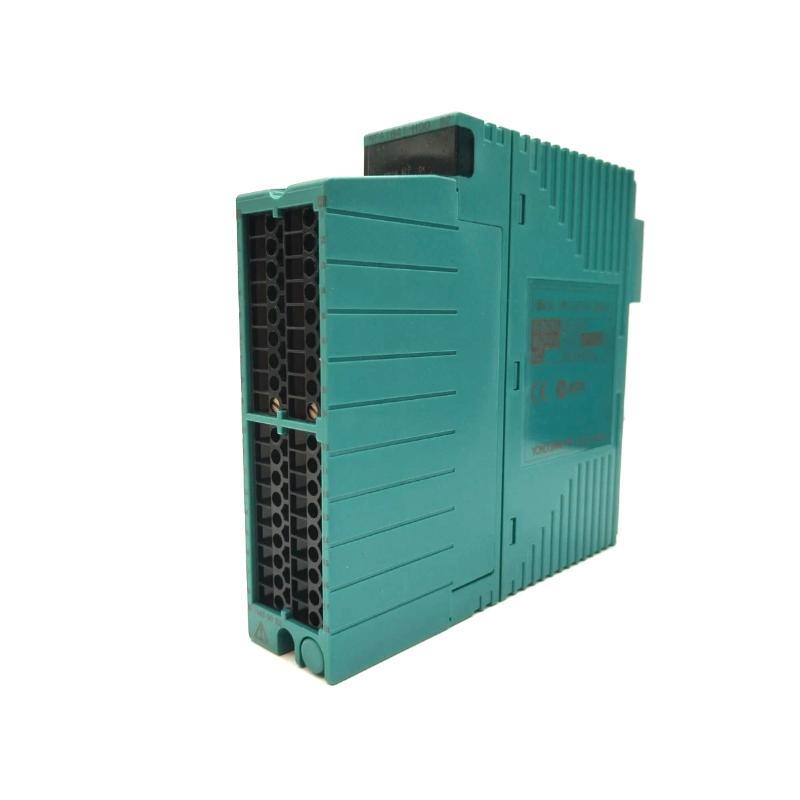

| Connection Method | MIL 40-pin connector or pressure clamp terminals |
| Recommended Cable | Shielded twisted-pair cable for analog signals |
| Operating Temperature | 0 to 55°C |
| Storage Temperature | -20 to 70°C |
| Mounting Method | Plug-in type, mountable in FCN controller rack |
| Dimensions (mm) | 130 × 27.5 × 90 |
| Weight (kg) | 0.25 |
| Power Supply | Supplied by main controller |

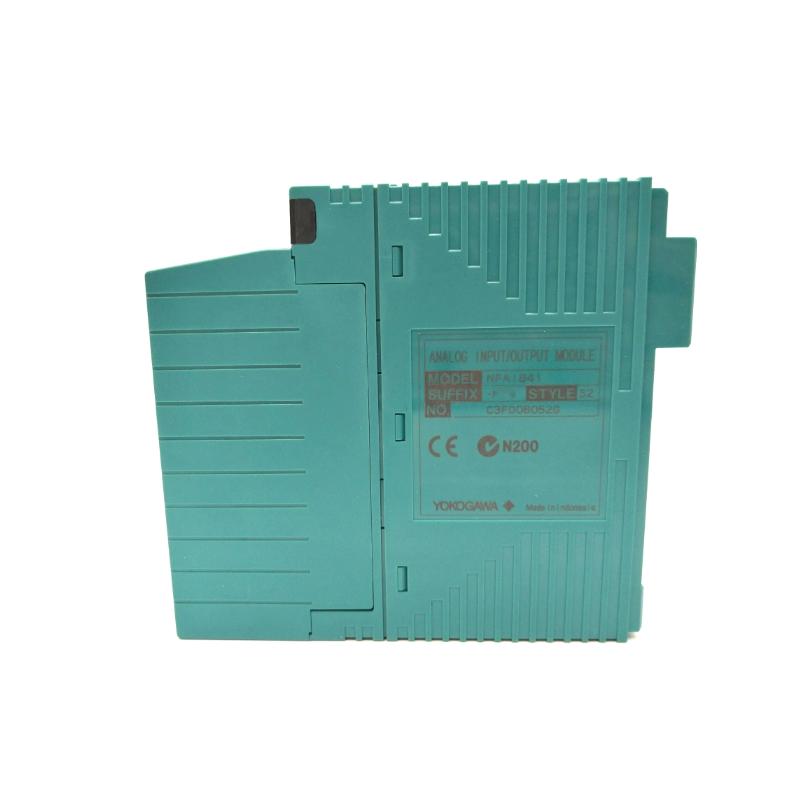

| Certifications | CE, KC compliant |
FAQ
Frequently Asked Questions (FAQ)
Q1: How many analog input and output channels does the NFAI841-S50 support?
A1: It supports 8 input channels and 8 output channels, all in 4–20 mA current range.
Q2: Are the analog signals isolated?
A2: No, both input and output signals are non-isolated.
Q3: What wiring methods are supported?
A3: It supports MIL 40-pin connector or pressure clamp terminals.
Q4: What cable type is recommended for analog connections?
A4: Shielded twisted-pair cables are recommended to reduce noise and interference.
Q5: What is the allowable operating temperature range?
A5: The operating range is from 0°C to 55°C.
Q6: Can this module be hot-swapped?
A6: No, hot-swapping is not supported. Power must be turned off before removal or insertion.
Q7: What are the physical dimensions and weight of the module?
A7: The module measures 130 × 27.5 × 90 mm and weighs 0.25 kg.
Q8: What certifications does the module comply with?
A8: The module is CE and KC certified.
