Technical Specifications
| Item | Description |
|---|---|

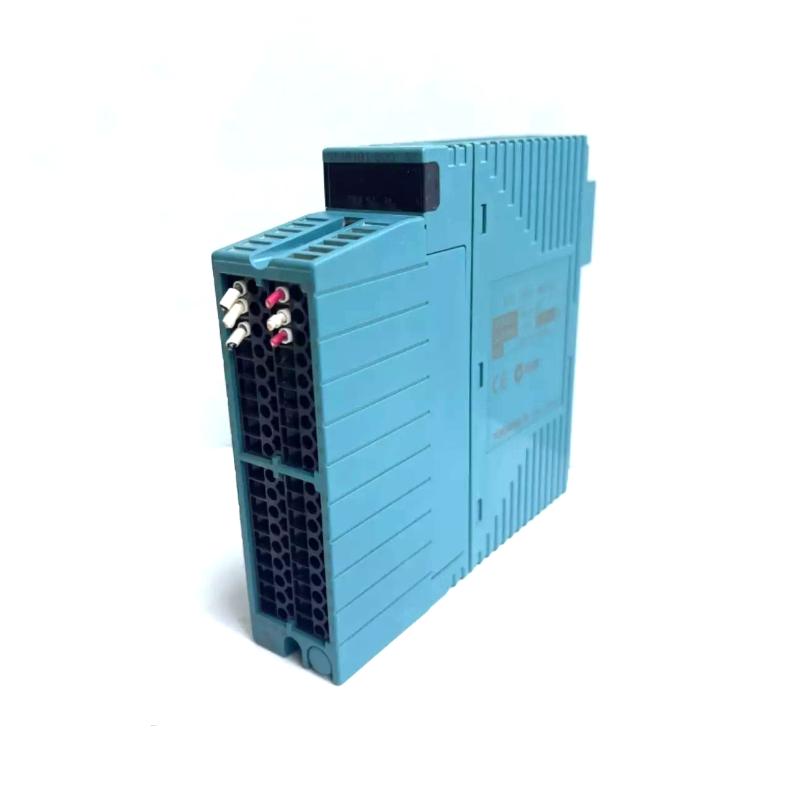

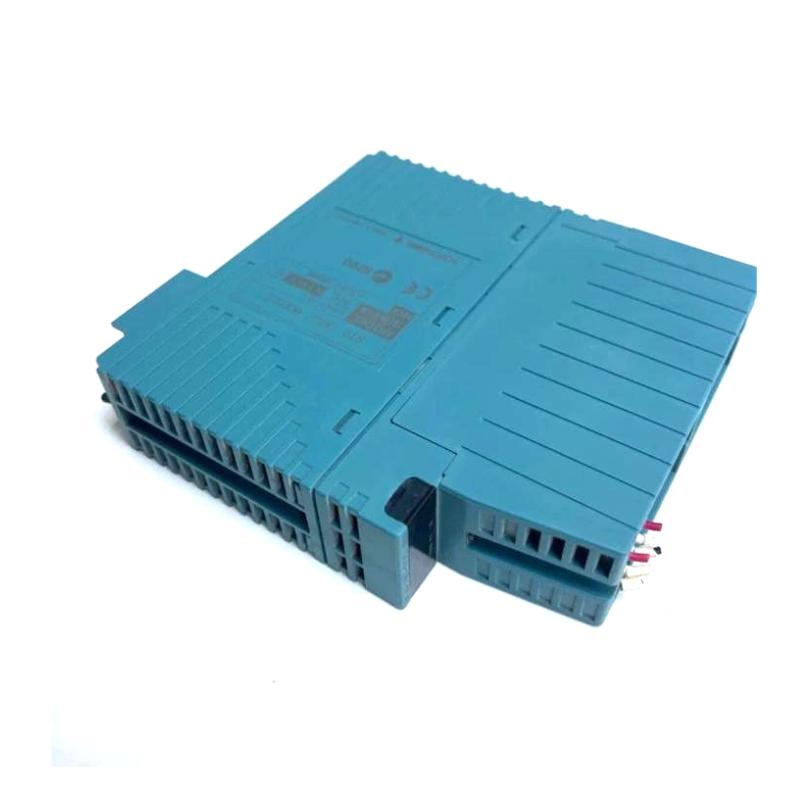

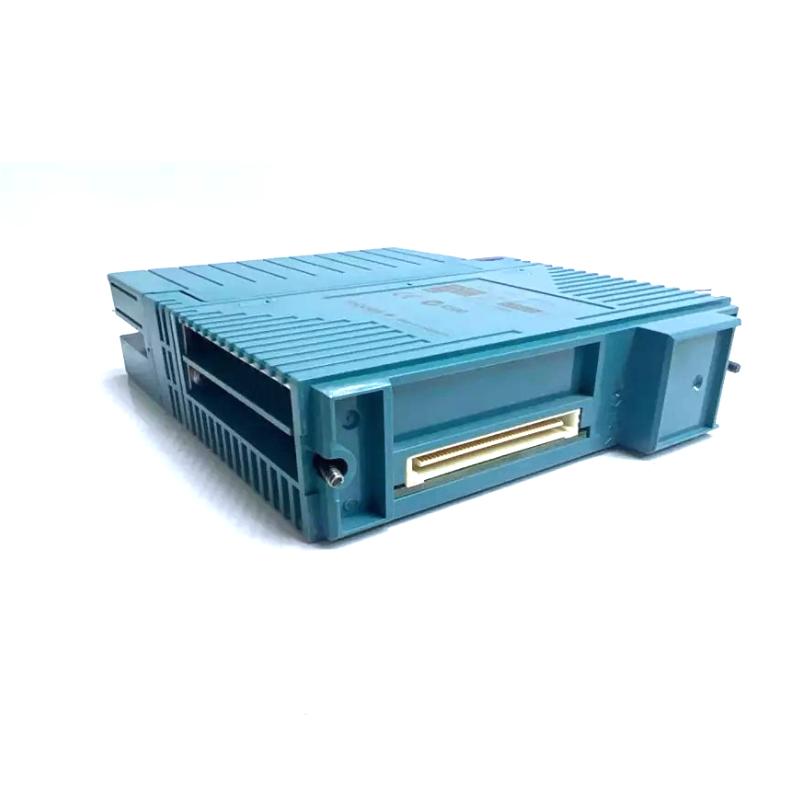

| Model | NFAR181-S50 |
| Number of Input Channels | 12 channels, isolated |
| Input Signal Types | Pt100, JPt100 (3-wire type) |
| Standards Supported | JIS C1604:1997, IEC 60751:1995 |
| Measurement Current | 1 mA |
| Allowable Input Voltage | ±5 V |
| Withstanding Voltage | 1500 V AC between input and system, for 1 minute |
| Input Resistance | ≥2 MΩ (both powered and unpowered states) |
| Accuracy | ±0.03% of full scale (0 to 400 Ω range) |
| Temperature Drift | Max. ±30 ppm/°C |
| Allowable Signal + Wire R | ≤40 Ω per wire, equal resistance required per wire |
| Data Refresh Cycle | 1 second |
| Burn-out Detection | Configurable for all channels, detection time: 60 sec |
| Max Current Consumption | 450 mA (5 V DC) |

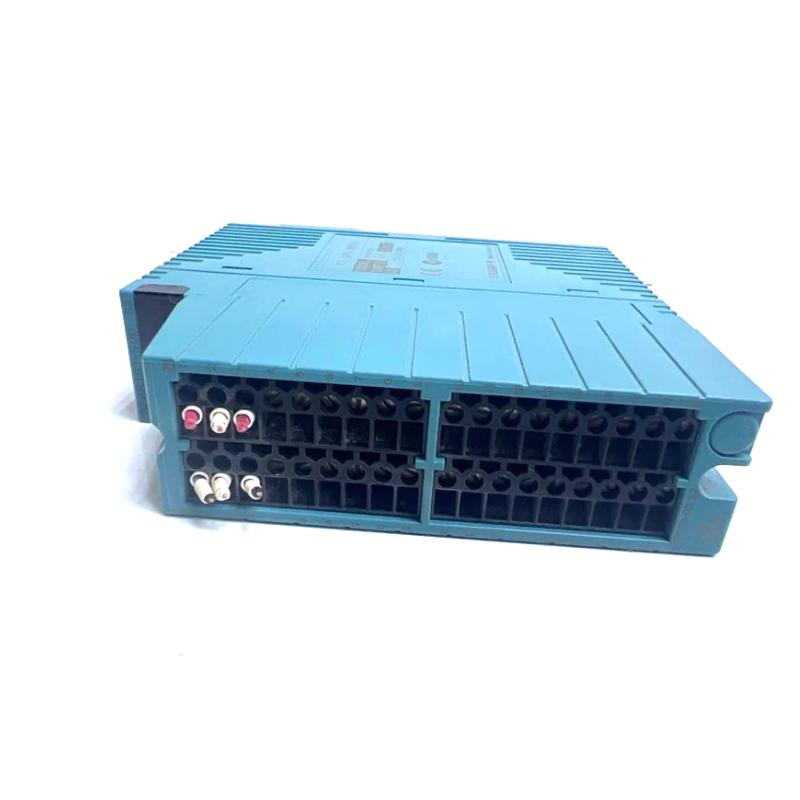

| External Connection | Pressure clamp terminal only |
| Dimensions (W x H x D) | 130 x 107.5 x 32.8 mm |
| Weight | 0.2 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What types of RTDs does NFAR181-S50 support?
A1: It supports 3-wire Pt100 and JPt100 RTDs in compliance with JIS and IEC standards.
Q2: Are the input channels isolated?
A2: Yes, all 12 input channels are electrically isolated for improved noise immunity and safety.
Q3: What is the measurement current per channel?
A3: The module supplies 1 mA per channel for RTD measurement.
Q4: What is the input resistance?
A4: Input resistance is ≥2 MΩ both when the module is powered and unpowered.
Q5: What is the maximum allowed wiring resistance?
A5: Each wire must not exceed 40 Ω, and the resistance of the three wires must be equal.
Q6: Is burn-out detection available?
A6: Yes, burn-out detection is available for all channels with a detection time of 60 seconds.
Q7: Does it support MIL connectors?
A7: No, the NFAR181-S50 uses only pressure clamp terminal connections.
Q8: What are the module’s dimensions and weight?
A8: The module measures 130 x 107.5 x 32.8 mm and weighs 0.2 kg.
