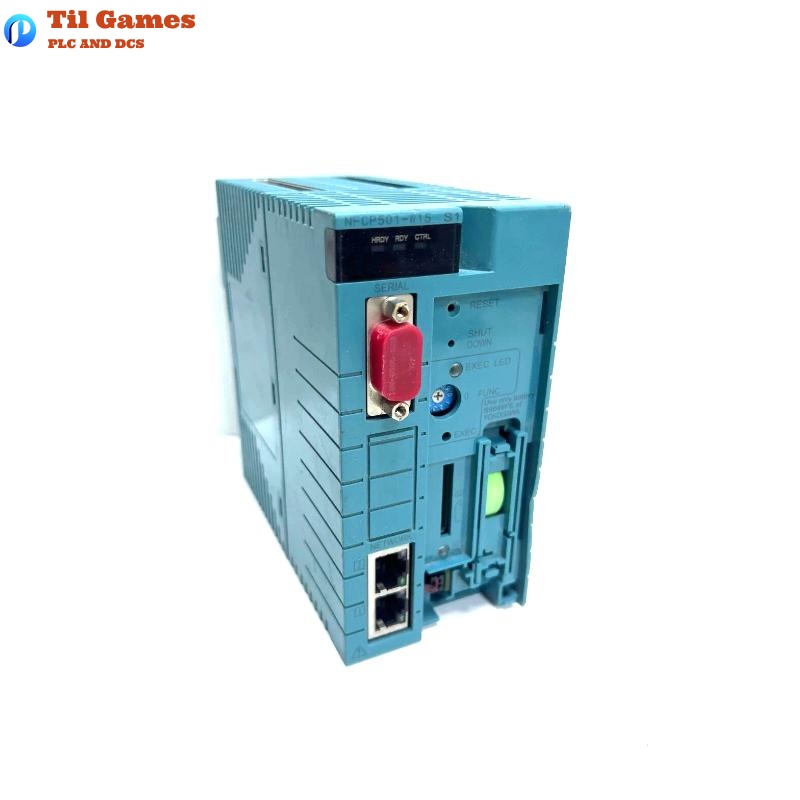

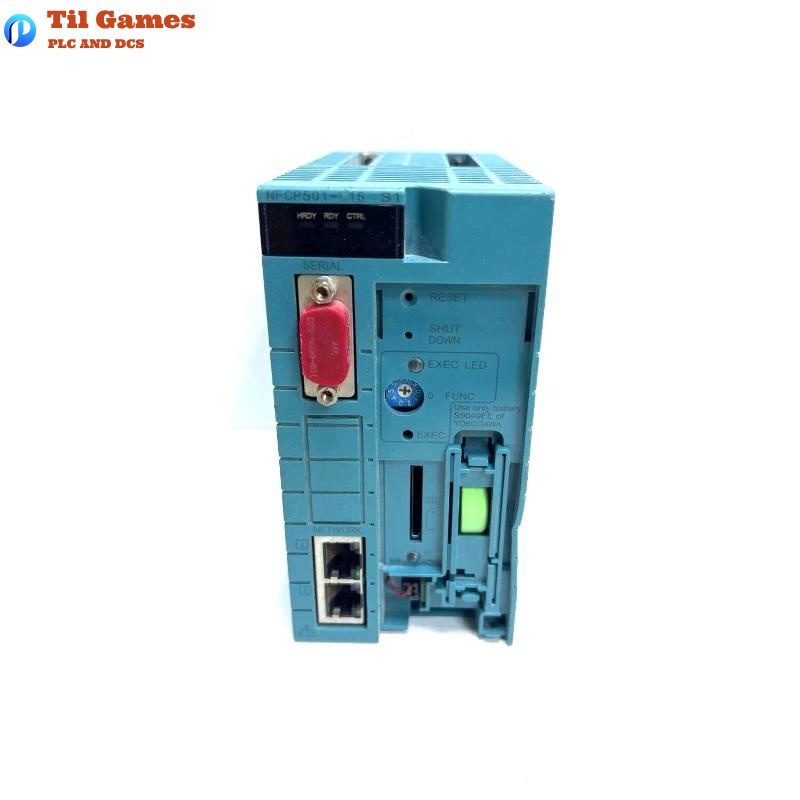

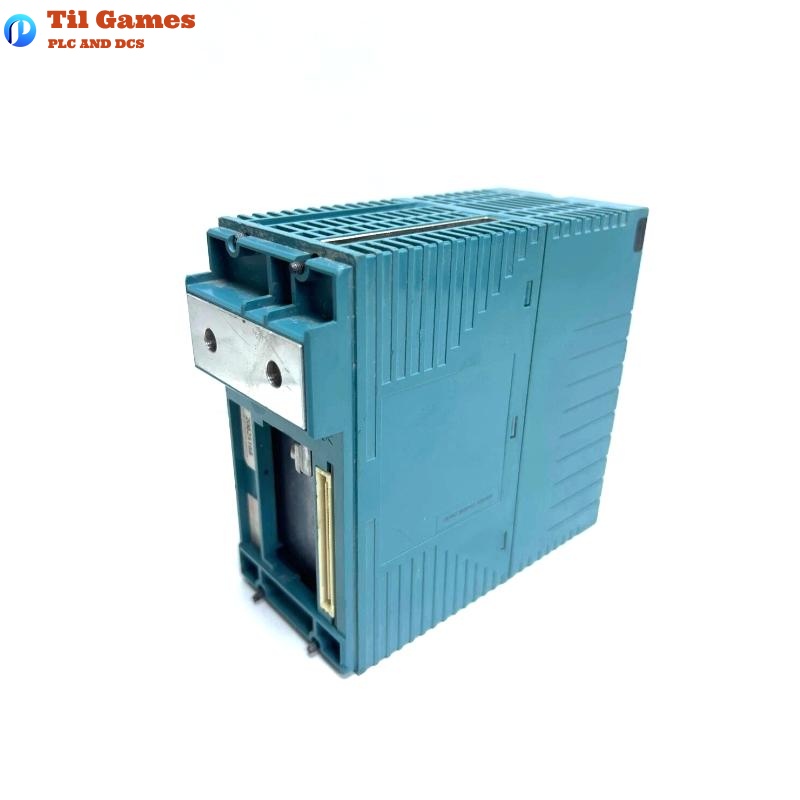

Yokogawa NFCP501-S15 CPU Module

FAQ

Q1: Does the NFCP501 module support hot-swapping?
A1: Yes, the NFCP501 supports hot-swappable functionality and CPU redundancy.

Q2: What is the processor used in this module?
A2: It uses an Intel Atom E3815 processor with a clock speed of 1.46 GHz.

Q3: Does the module have self-diagnostic and monitoring capabilities?
A3: Yes, it features RAS functions like a watchdog timer and temperature monitoring.

Q4: What Ethernet speeds are supported?
A4: The module supports 10 Mbps, 100 Mbps, and 1000 Mbps (10BASE-T, 100BASE-TX, 1000BASE-T).

Q5: Is SD card storage expansion available?
A5: Yes, it supports SDHC memory cards from 4 GB to 32 GB.

Q6: What is the power consumption of the module?
A6: It consumes a maximum of 1200 mA at 5 V DC ±5%.

Q7: Can two NFCP501 modules be configured as a redundant pair?
A7: Yes, provided they are of the same model and firmware version.

Q8: What is the operational temperature range of the NFCP501?
A8: The standard version operates from 0°C to 55°C; the extended version from -20°C to 70°C.
