Technical Specifications
| Item | Specification |
|---|---|
| Model | NFDV151-P10 |
| Number of Input Channels | 32 channels |
| Rated Input Voltage | 24 V DC |
| Input ON Voltage Range | 18 to 26.4 V DC |
| Input OFF Voltage | 5.0 V DC or less |
| Input Current (Rated Voltage) | 4.1 mA ± 20% per channel |
| Max Instantaneous Input Voltage | 30.0 V DC |
| Withstanding Voltage | 2000 V AC (input/system), 500 V AC (every 16-channel) |
| Input Response Time | 8 ms or less (for status input) |
| Minimum ON Detection Time | 20 ms (for push button input) |
| Max ON/OFF Cycle | 25 Hz (for push button input) |
| Functions | Status input, push button edge detection |
| Max Current Consumption | 500 mA (5 V DC) |

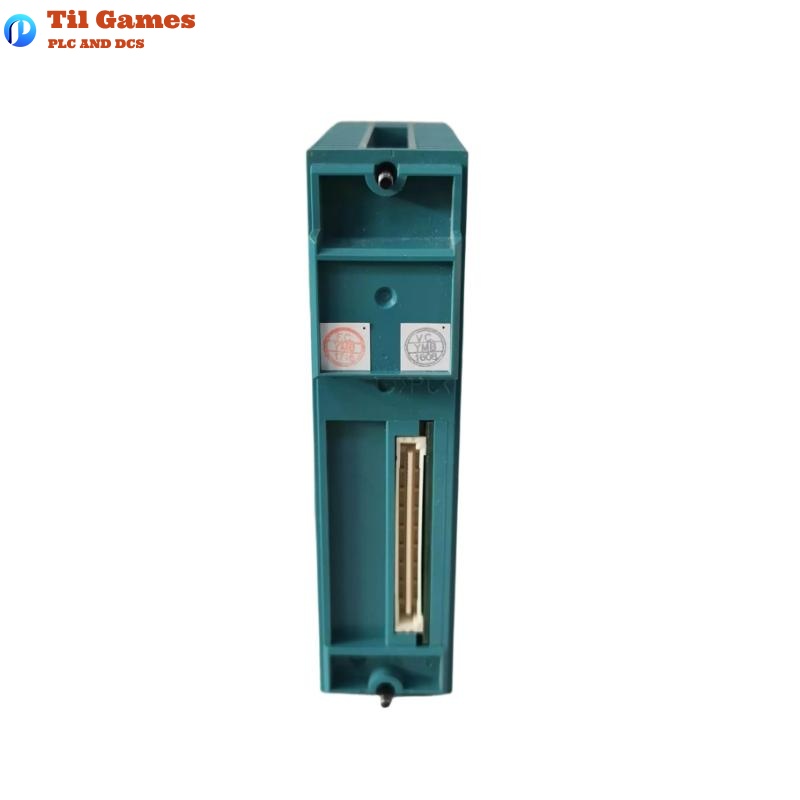

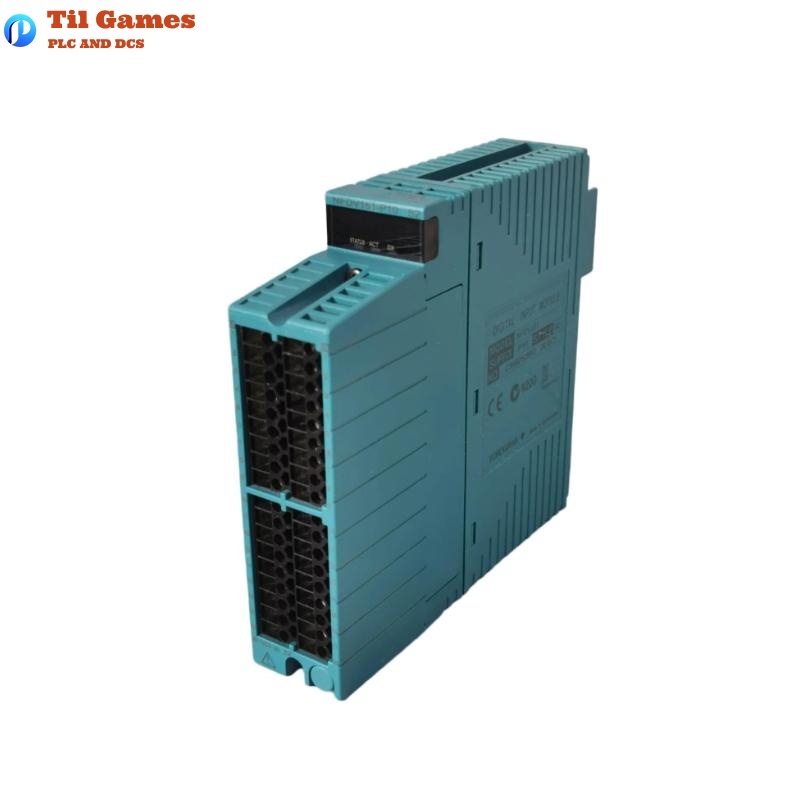

| External Connection | Pressure clamp terminal or MIL connector cable |
| LED Indicators | Green per channel when input is ON |
| Dimensions | 130 × 107.5 × 32.8 mm |
| Weight | 0.3 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: How many input channels does the NFDV151-P10 support?
A1: The module supports 32 digital input channels.
Q2: What is the rated input voltage?
A2: The rated input voltage is 24 V DC.
Q3: What is the maximum allowable instantaneous input voltage?
A3: The maximum input voltage is 30 V DC.
Q4: What is the input response time of the module?
A4: The status input response time is less than or equal to 8 ms.
Q5: Does the module support push button input detection?
A5: Yes, it supports push button edge detection for channels 1 to 32.
Q6: What is the OFF voltage threshold for inputs?
A6: OFF voltage must be 5.0 V DC or less.
Q7: What are the physical dimensions and weight of the module?
A7: Dimensions are 130 x 107.5 x 32.8 mm, and the weight is 0.3 kg.
Q8: What types of external connections are available?
A8: The module supports both pressure clamp terminal and MIL connector cable connections.
