Technical Specifications
| Item | Specification |
|---|---|

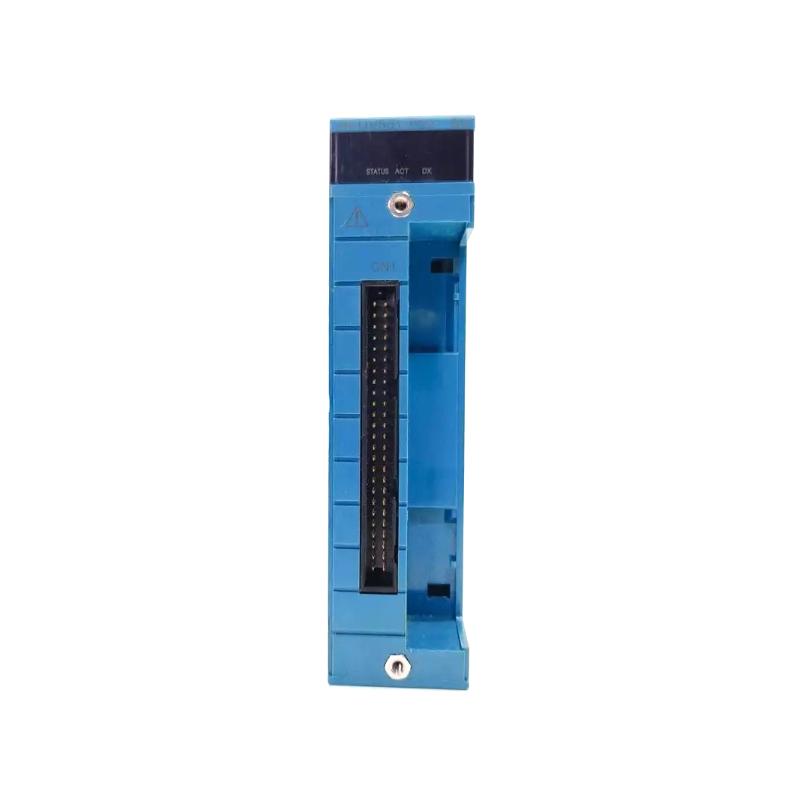

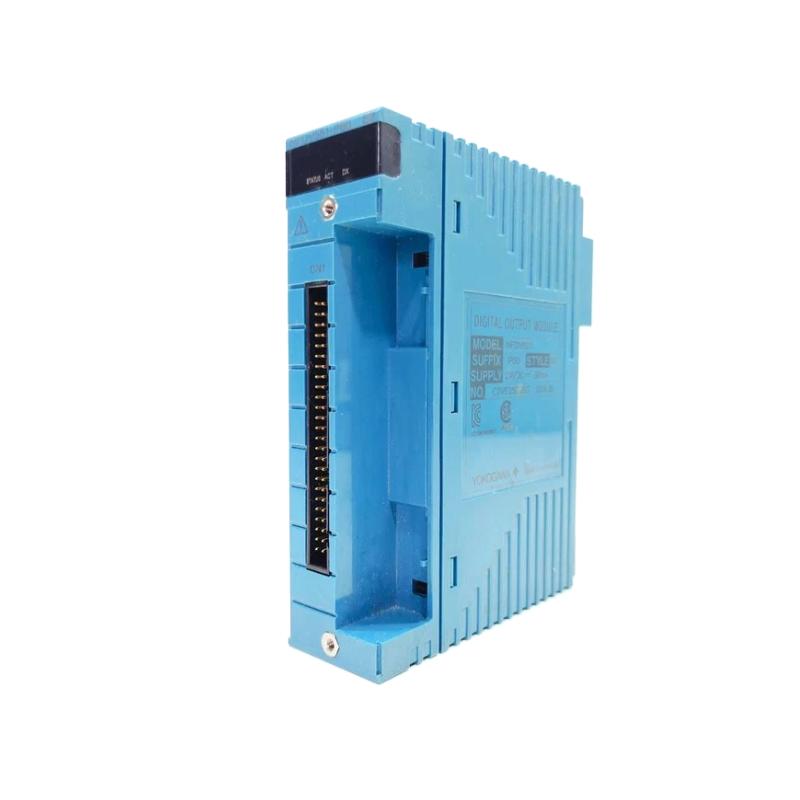

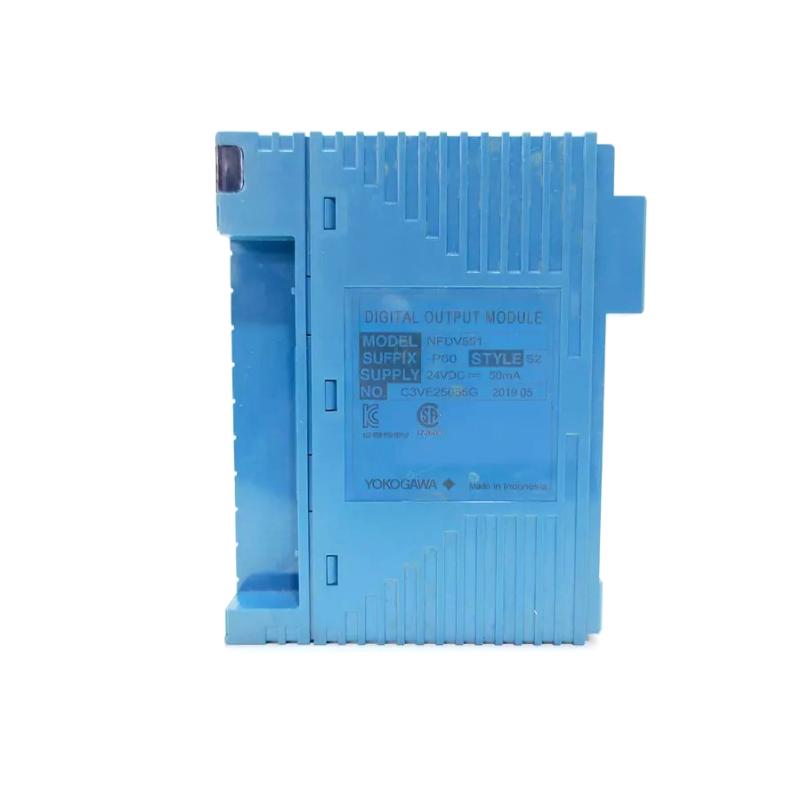

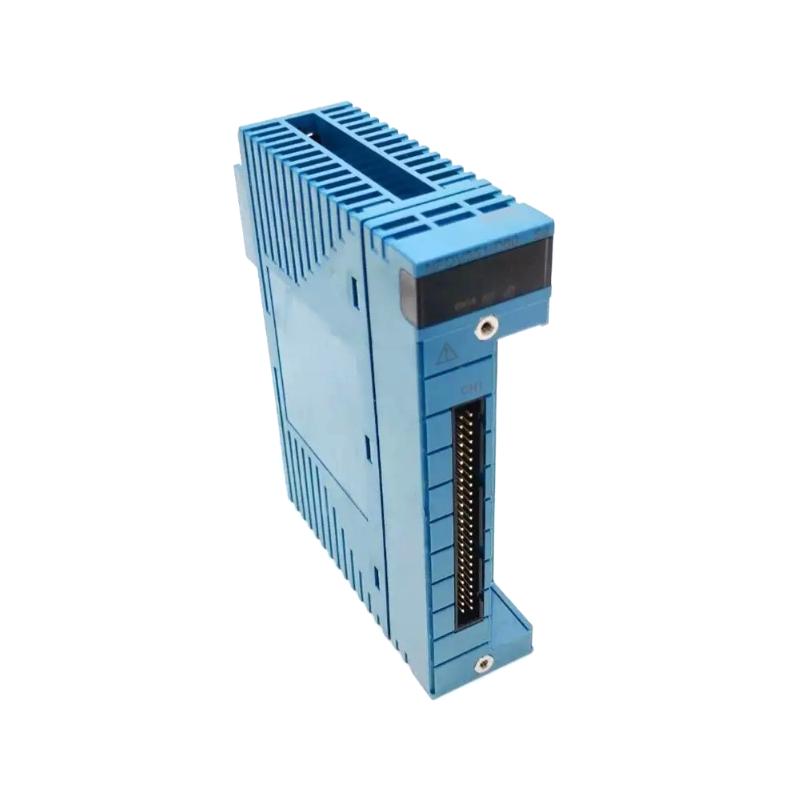

| Model | NFDV551-P60 |
| Number of Output Channels | 32 channels |
| Rated Applied Voltage | 24 V DC |
| Load Voltage | 24 V DC, max. 50 mA |
| Field Power Supply Voltage Range | 20.4 to 26.4 V DC |
| Maximum Output ON Voltage | 2 V DC |
| Maximum Leak Current (OFF State) | 0.1 mA |
| Output Type | Current sink |
| Max Load Current | 100 mA/channel at up to 26.4 V |
| Withstanding Voltage | 2000 V AC for 1 minute (signal/system) 500 V AC for 1 minute (every 16-channel common) |
| Output Functions | ON/OFF status output |
| Fallback Function | HOLD / OFF / NO (common to all channels) |
| Output Response Time | 3 ms max |
| Maximum Current Consumption | 700 mA (5 V DC), 60 mA (24 V DC, field power) |
| External Connection | Pressure clamp terminal, MIL connector cable |
| Dimensions | 32.8 × 107.5 × 130 mm |
| Weight | 0.2 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: How many output channels does the NFDV551-P60 have?
A1: It supports 32 individual digital output channels.
Q2: What is the maximum load current per output channel?
A2: Each channel can handle up to 100 mA at 26.4 V DC.
Q3: What is the output type of this module?
A3: The output type is current sink.
Q4: Is there any leak current when the output is off?
A4: Yes, the maximum leak current is 0.1 mA when OFF.
Q5: Does the module support fallback functions?
A5: Yes, it supports HOLD, OFF, and NO modes, applied commonly to all channels.
Q6: What is the voltage range for the external power supply?
A6: The field power supply must be within 20.4 to 26.4 V DC.
Q7: What are the dimensions and weight of the NFDV551-P60?
A7: It measures 32.8 × 107.5 × 130 mm and weighs 0.2 kg.
Q8: Does this module have status indicators?
A8: Yes, each channel has a green LED that lights up when the output is ON.
