Technical Specifications
| Item | Description |
|---|---|

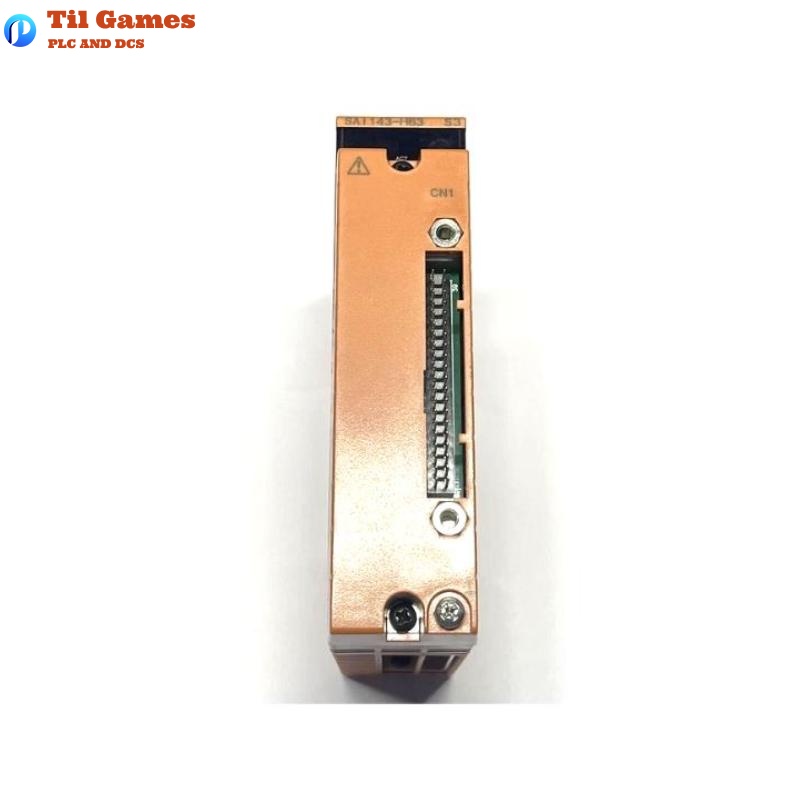

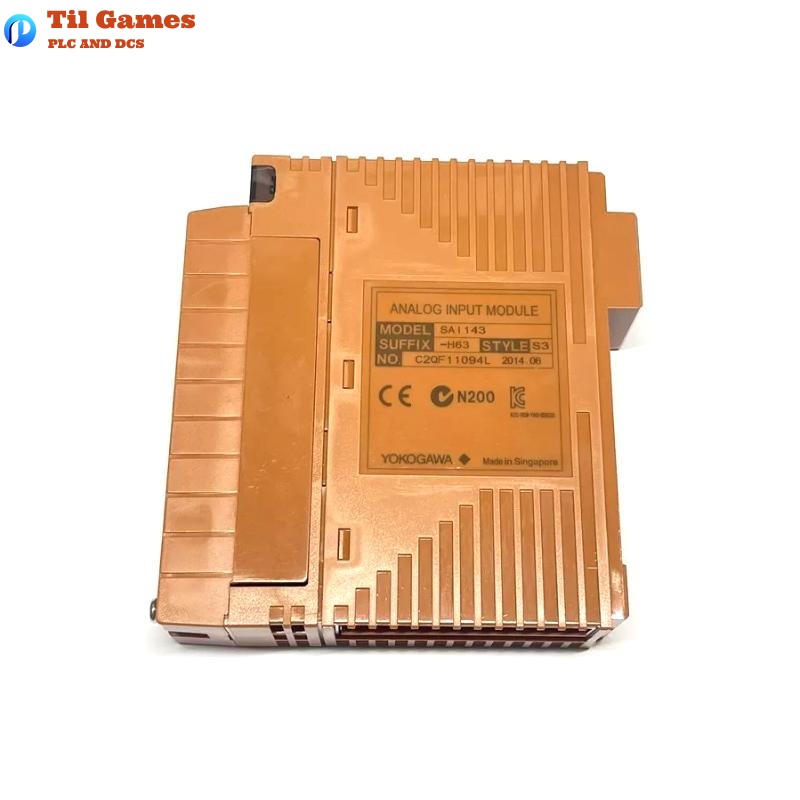

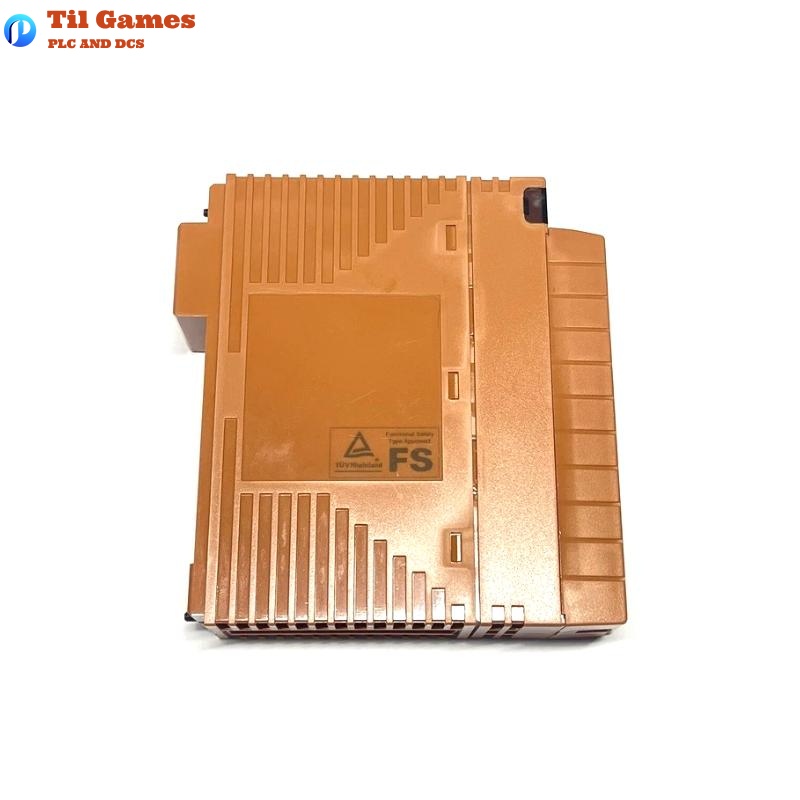

| Model | SAI143-H63 |
| Number of Input Channels | 16 channels, module isolation |
| Rated Input Range | 4 to 20 mA |
| Permissible Input Range | 0 to 25 mA |
| Input Impedance (ON) | 250 Ω + current value |
| Input Impedance (OFF) | ≥ 500 kΩ |
| Accuracy | ±16 µA (Input range: 0.05 to 23 mA) |
| Data Update Frequency | 40 ms |
| Temperature Drift | ±16 µA / 10°C |
| Transmitter Power Supply | Min. 16.15 V @ 20 mA, Max. 26.4 V @ 0 mA (limit: 25 mA) |
| Wire Type Support | 2-wire/4-wire (individually configurable per channel) |
| Withstand Voltage | 1.5 kV AC between input signal and system (1 minute) |
| Max Current Consumption | 320 mA (5 V system), 550 mA (24 V system) |
| External Connections | Pressure clamp terminal, MIL cable, or signal cable |
| PRM Support | Yes (H version only) |
| Power ON/OFF Function | Available for all 16 channels (2-wire setting) |
| Dimensions (W x H x D) | 130 x 107.5 x 32.8 mm |
| Weight | Approx. 0.34 kg (without signal cable interface adapter) |
FAQ
Frequently Asked Questions (FAQ)
Q1: What type of signal does the SAI143-H63 support?
A1: It supports 4 to 20 mA analog current input signals.
Q2: Does the module support HART communication?
A2: Yes, models with “H” in the suffix, such as SAI143-H63, support HART protocol.
Q3: Are the input channels isolated?
A3: Yes, the module provides isolation between channels.
Q4: Is it compatible with both 2-wire and 4-wire transmitters?
A4: Yes, each channel can be independently configured for 2-wire or 4-wire operation.
Q5: Which HART versions are supported?
A5: HART protocol Revision 5.7 is supported; HART 5, 6, and 7 devices are compatible.
Q6: What is the input impedance when the module is powered off?
A6: At least 500 kΩ in the powered-off state.
Q7: Can this module be used in a redundant configuration?
A7: Yes, it supports dual-redundant operation.
Q8: What are typical applications of this module?
A8: It is widely used in safety instrumented systems (SIS), process control, and HART-enabled monitoring.
