Technical Specifications
| Item | Specification |
|---|---|

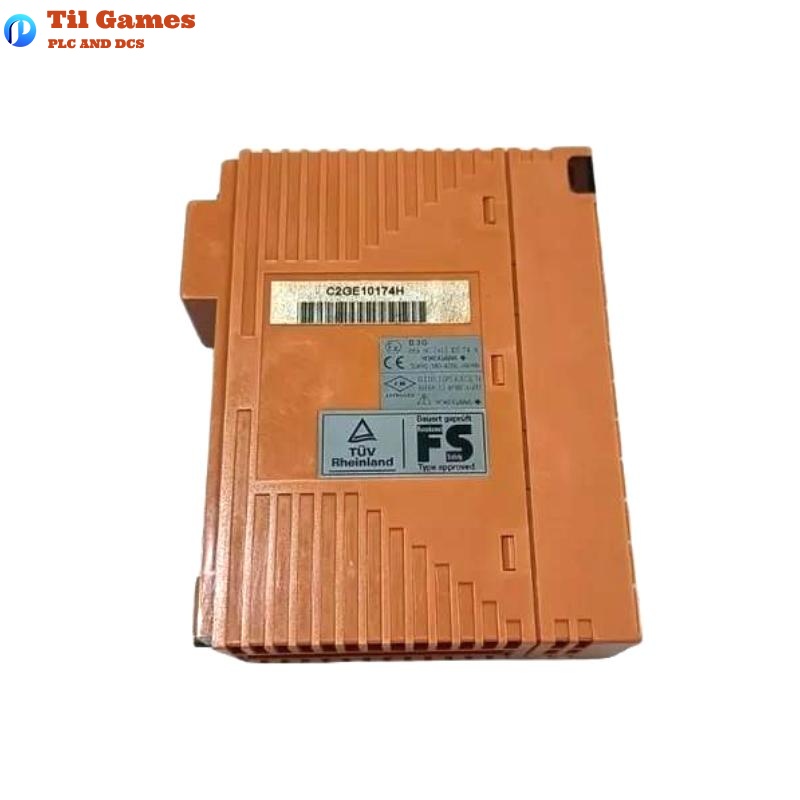

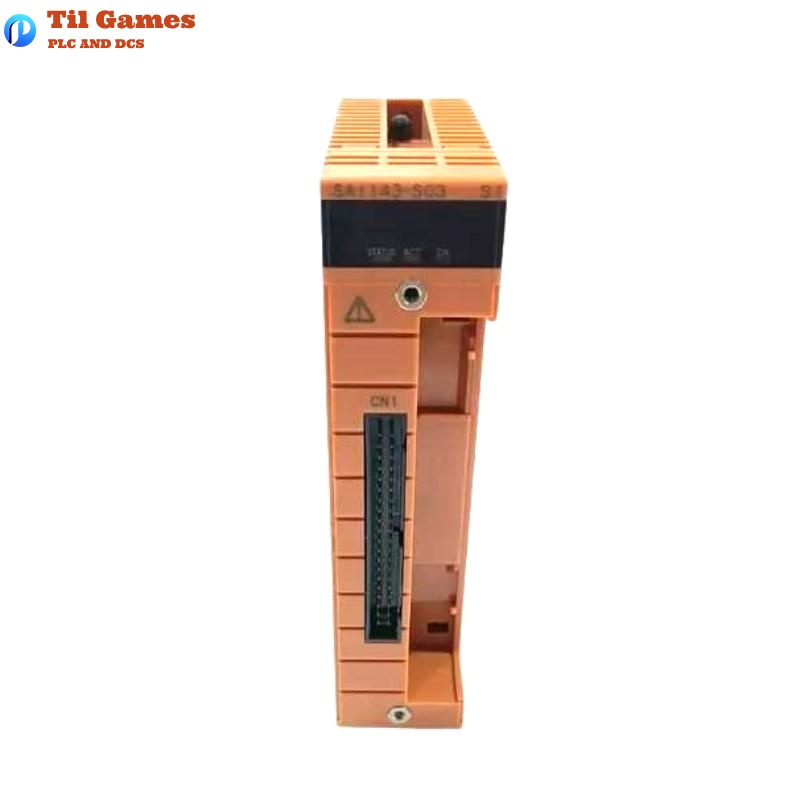

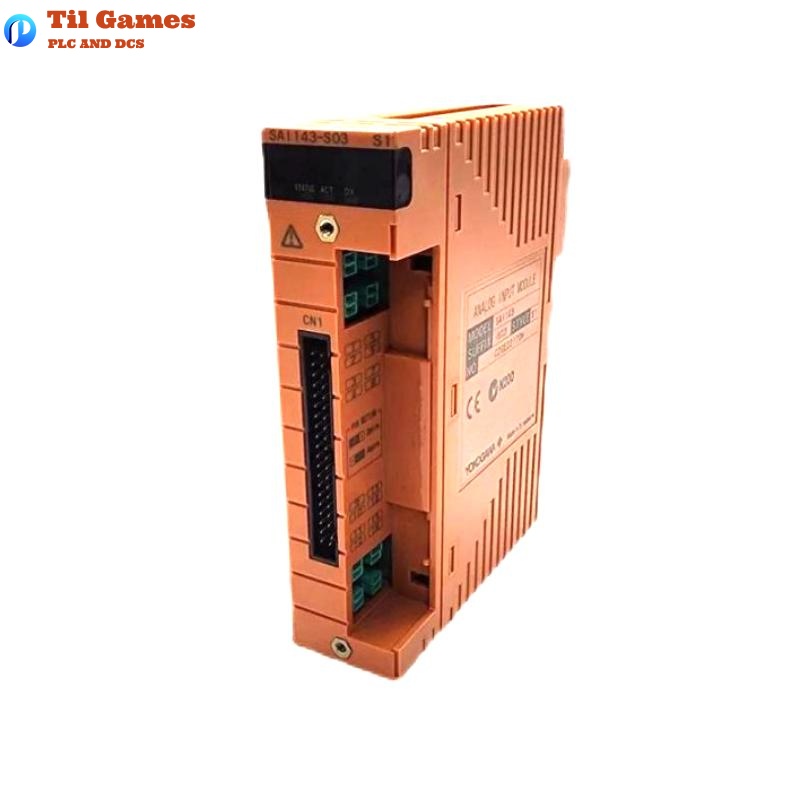

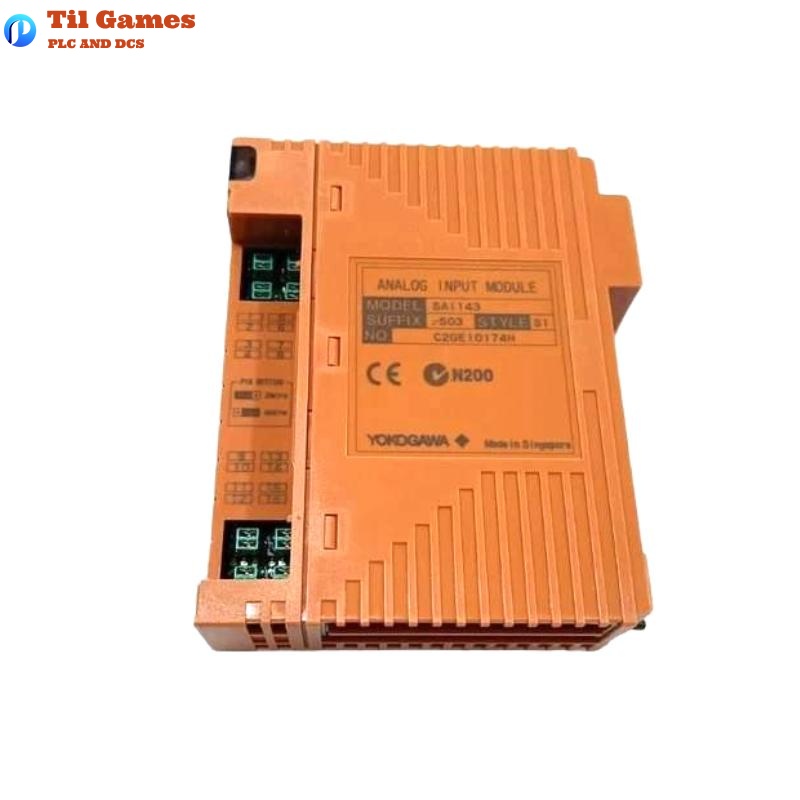

| Model | SAI143-S03 |
| Number of Input Channels | 16 channels, module isolation |
| Rated Input Range | 4 to 20 mA |
| Permissible Input Range | 0 to 25 mA |
| Input Impedance (Power ON) | 250 Ω + current value (Max voltage drop 0.45 V) |
| Input Impedance (Power OFF) | 500 kΩ minimum |
| Accuracy | ±16 µA (within 1 to 23 mA range) |
| Data Update Frequency | 40 ms |
| Temperature Drift | ±16 µA / 10 °C |
| Transmitter Power Supply | Min. 16.15 V at 20 mA, Max. 26.4 V at 0 mA |
| Output Current Limit | 25 mA |
| 2/4-Wire Setting | Individually configurable per channel |
| Withstand Voltage | 1.5 kV AC (1 min) between input and system |
| Max Current Consumption | 320 mA at 5 V, 550 mA at 24 V |
| External Connections | Pressure clamp terminal, MIL cable, or dedicated cable |
| PRM Support | Available (SAI143-H only) |
| Power Supply ON/OFF | Simultaneous control for all 16 channels (2-wire mode) |
| Dimensions (W x H x D) | 130 x 107.5 x 32.8 mm |
| Weight | 0.34 kg (with pressure clamp or MIL cable) |
FAQ
Frequently Asked Questions (FAQ)
Q1: What type of signal does the SAI143-S03 module support?
A1: It supports 4 to 20 mA current input, with a permissible range of 0 to 25 mA.
Q2: Can the module be used in a dual-redundant configuration?
A2: Yes, the SAI143-S03 supports dual-redundant setup for high reliability.
Q3: What is the accuracy of the input signal?
A3: The rated accuracy is ±16 µA within the 1 to 23 mA input range.
Q4: What is the input impedance when the power is off?
A4: The input impedance is at least 500 kΩ when powered off.
Q5: Does the module provide power to field transmitters?
A5: Yes, it supplies between 16.15 V and 26.4 V, with a current limit of 25 mA.
Q6: What types of external connections are supported?
A6: It supports pressure clamp terminals, MIL cables, and dedicated signal cables.
Q7: Is PRM (Plant Resource Manager) supported?
A7: Yes, PRM is supported for the SAI143-H version.
Q8: What is the maximum operating ambient temperature?
A8: The module can operate up to 70 °C; however, usable channels may be limited at high temperatures.
