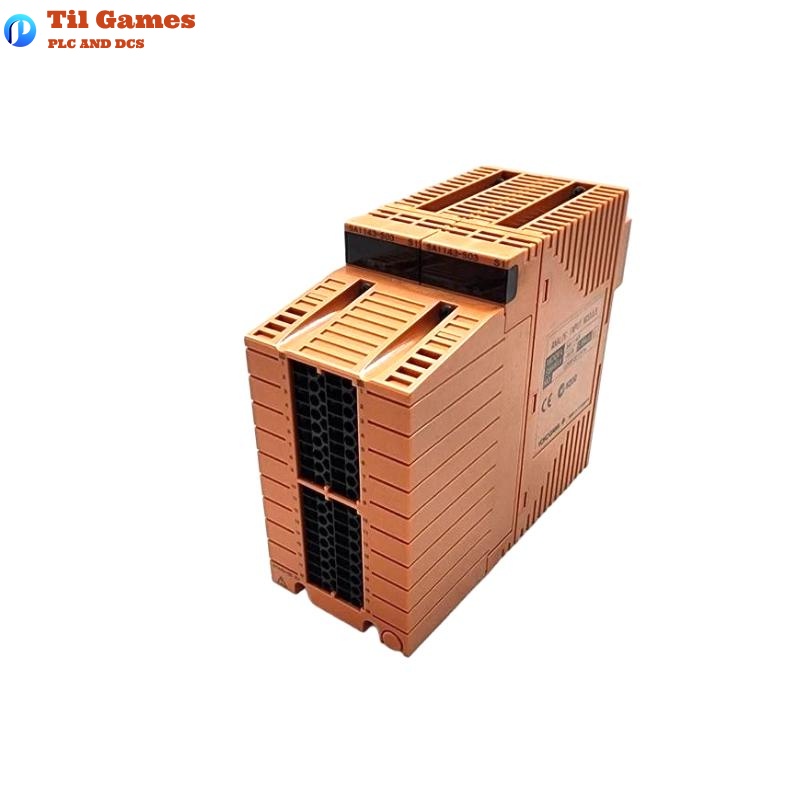

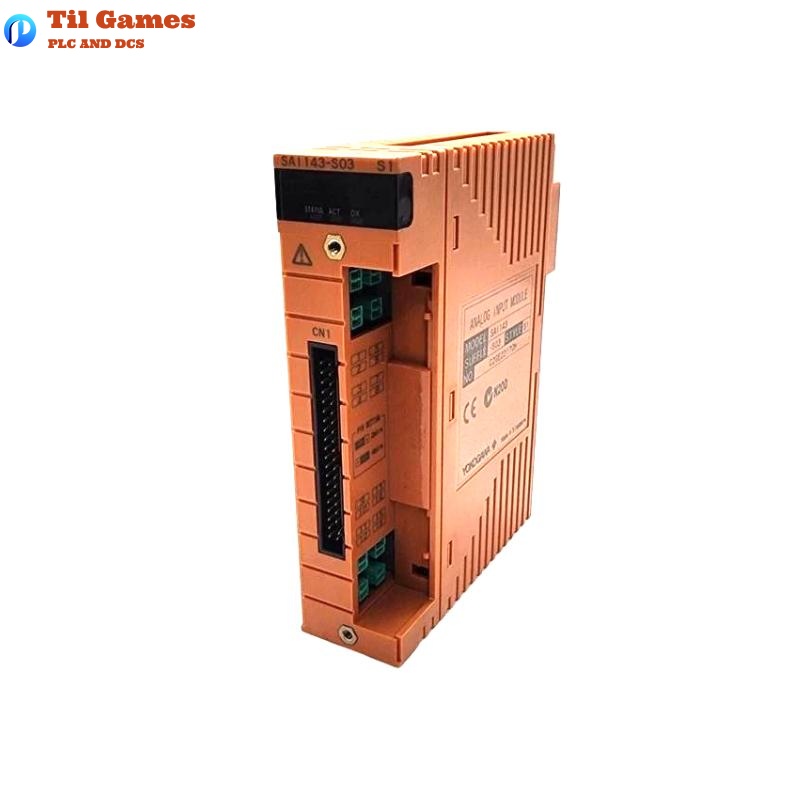

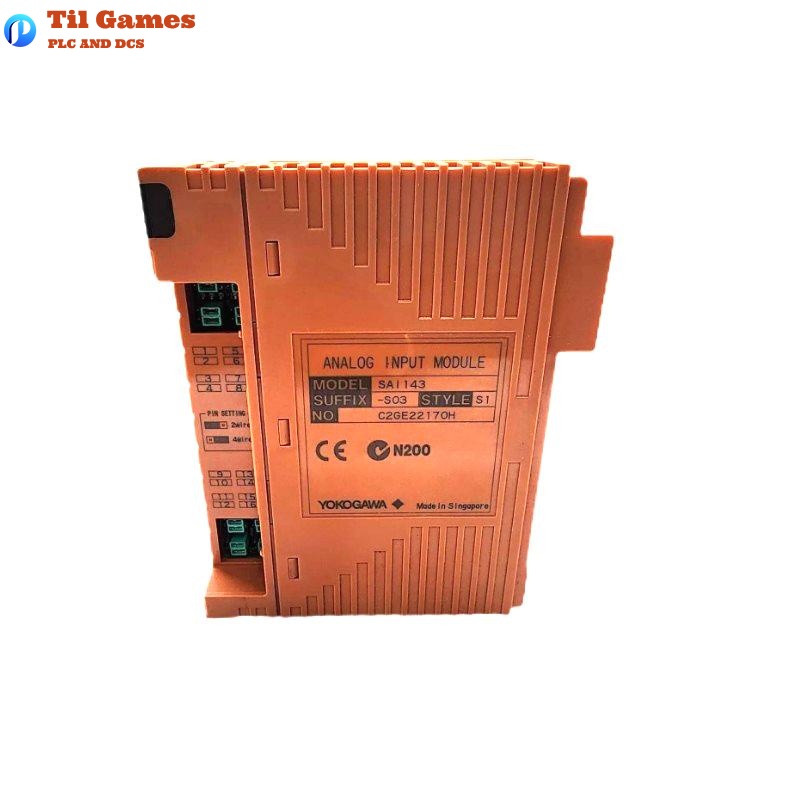

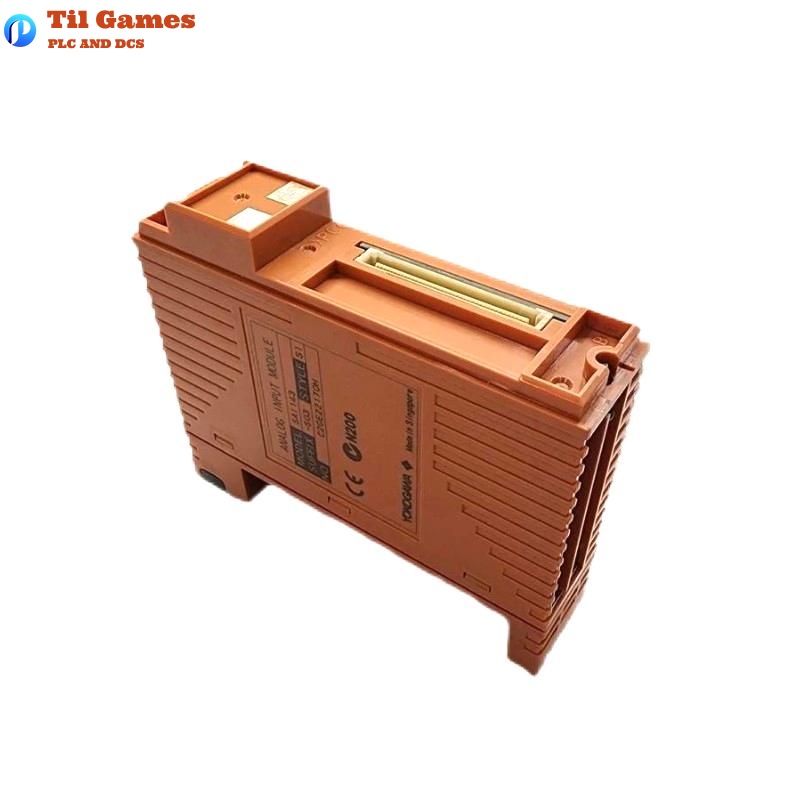

Technical Specifications
| Parameter | Description |
|---|---|
| Model | SAI143-S03 S1 |
| Number of Input Channels | 16 channels, module isolation |
| Rated Input Range | 4 to 20 mA |
| Permissible Input Range | 0 to 25 mA |
| Input Impedance (Power ON) | 250 Ω + current value (includes protection drop) |
| Input Impedance (Power OFF) | ≥ 500 kΩ |
| Rated Accuracy | ±16 µA (Input range: 1 to 23 mA) |
| Data Update Frequency | 40 ms |
| Temperature Drift | ±16 µA / 10°C |
| Transmitter Power Supply | Min 16.15 V @ 20 mA, Max 26.4 V @ 0 mA, limit 25 mA |
| 2/4-wire Setting | Per-channel selectable via setting pins |
| Withstand Voltage | 1.5 kV AC between input and system (1 min) |
| Max Current Consumption | 5 V: 320 mA, 24 V: 550 mA |
| External Connection | Pressure clamp, MIL cable, or dedicated signal cable |
| HART Communication | Only supported by model SAI143-H |
| Transmitter ON/OFF Control | Enabled in 2-wire setup for all channels (SAI143-H) |
| Dimensions | 130 x 107.5 x 32.8 mm |
| Weight | Approx. 0.34 kg (pressure clamp/MIL cable) |
FAQ
Frequently Asked Questions (FAQ)
Q1: How many analog input channels does the SAI143-S03 S1 support?
A1: It supports 16 analog input channels for 4–20 mA signals.
Q2: Does the module have isolation between channels?
A2: Yes, the module provides module-level isolation.
Q3: Does SAI143 support HART communication?
A3: Only the SAI143-H model supports HART. The SAI143-S03 does not.
Q4: Can input signals exceed 4–20 mA?
A4: The permissible range is 0 to 25 mA, but the rated range is 4 to 20 mA.
Q5: What is the data update rate?
A5: The data update frequency is 40 milliseconds.
Q6: What is the input impedance when powered on?
A6: It is 250 Ω plus a value depending on the input current.
Q7: Is 2-wire and 4-wire configuration supported?
A7: Yes, each channel can be individually set via pins for 2-wire or 4-wire mode.
Q8: What are the physical dimensions and weight of the module?
A8: The dimensions are 130 x 107.5 x 32.8 mm, and the weight is approximately 0.34 kg.
