Technical Specifications
| Parameter | Specification |
|---|---|

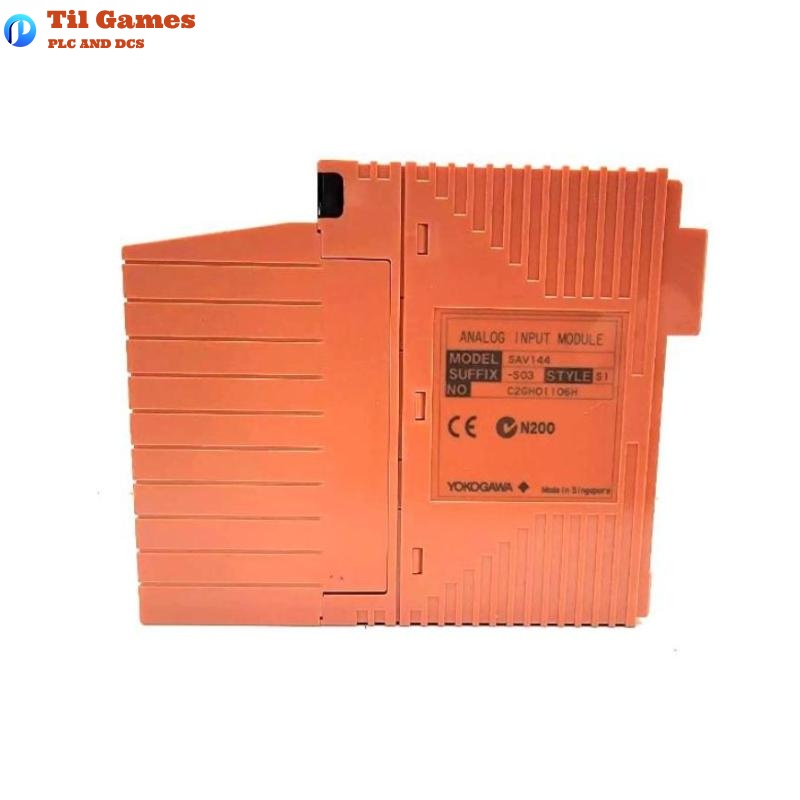

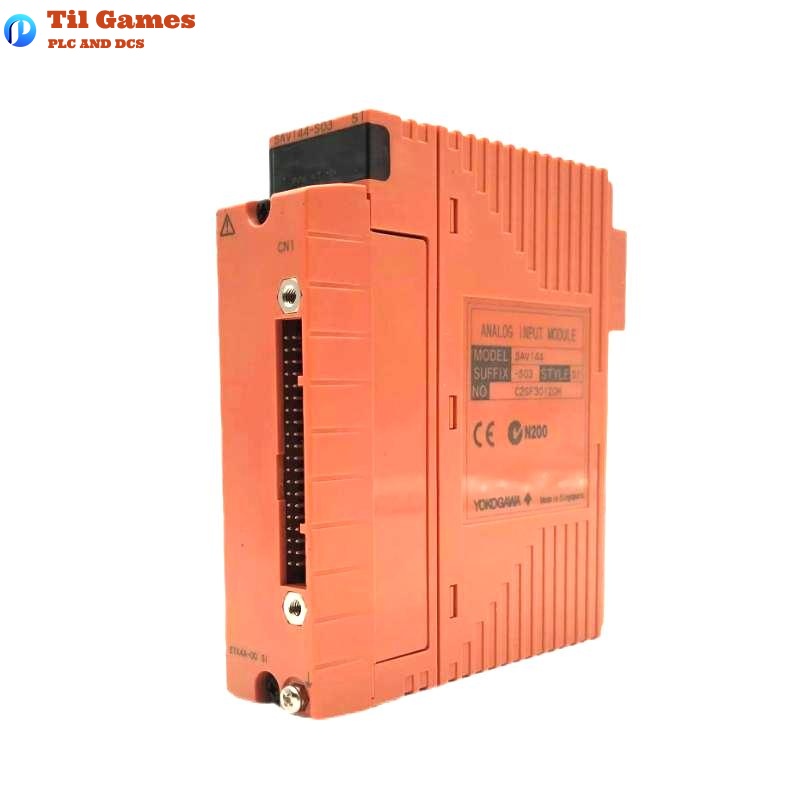

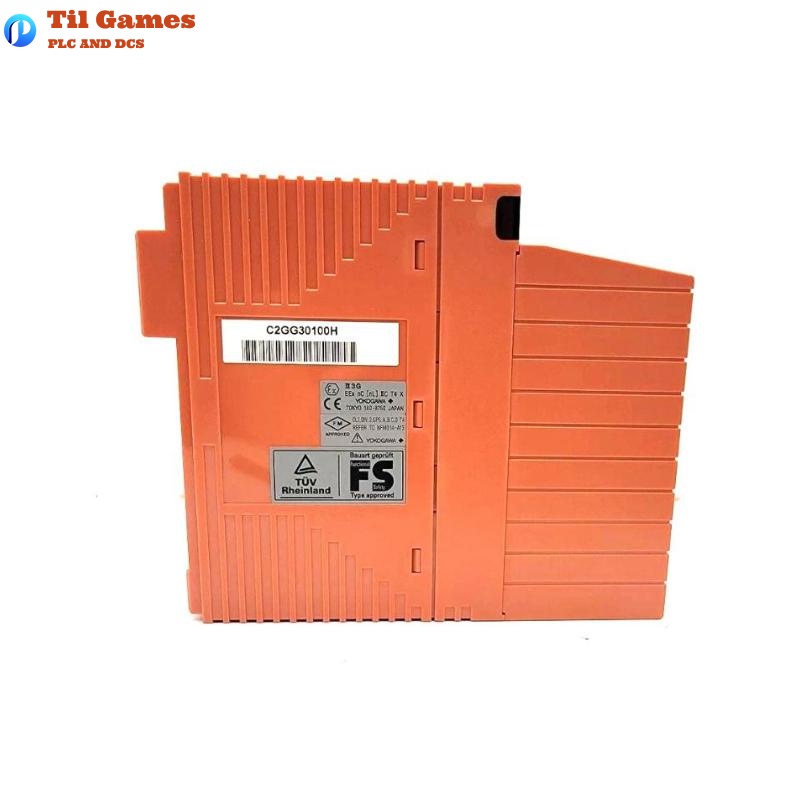

| Model | SAV144-S03 |
| Input Channels | 16 channels, module isolation |
| Rated Input Range | 1 to 5 V / 1 to 10 V |
| Permissible Input Range | ±30 V |
| Input Impedance (Power ON) | 1 MΩ |
| Input Impedance (Power OFF) | 100 kΩ |
| Rated Accuracy | ±4 mV (1 to 5 V), ±9 mV (1 to 10 V) |
| Temperature Drift | ±4 mV/10°C (1 to 5 V), ±9 mV/10°C (1 to 10 V) |
| Data Update Frequency | 40 ms |
| Withstand Voltage | 1.5 kV AC for 1 minute (between input & system) |
| Max Current Consumption | 5 V system: 300 mA, 24 V system: 140 mA |

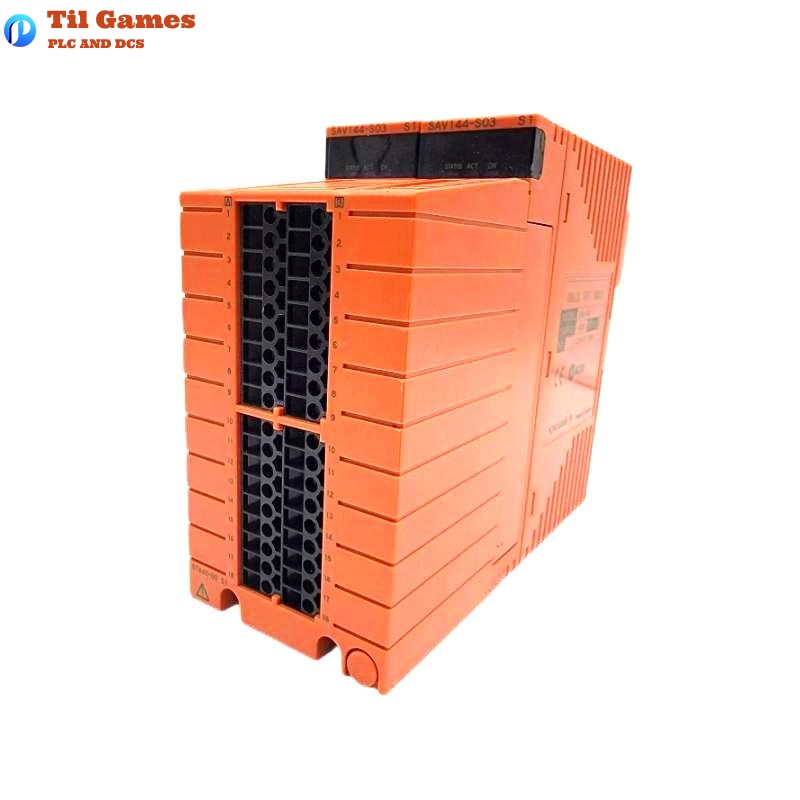

| External Connection Options | Pressure clamp terminal / MIL cable / KS1 signal cable |
| Dimensions | 130 x 124 x 32.8 mm |
| Weight | Approx. 0.29 kg (with signal cable interface) |
FAQ
FAQ
Q1: What input signals does the SAV144-S03 module support?
A1: It supports analog voltage signals in the range of 1–5 V or 1–10 V.
Q2: How many input channels does the SAV144-S03 provide?
A2: It provides 16 isolated input channels.
Q3: What is the permissible voltage range beyond the rated input?
A3: The module tolerates up to ±30 V.
Q4: What is the input impedance during normal operation?
A4: When powered on, the input impedance is 1 MΩ.
Q5: What is the maximum voltage the module can withstand?
A5: It can withstand 1.5 kV AC between input and system for 1 minute.
Q6: What is the accuracy of the module?
A6: For 1–5 V input, accuracy is ±4 mV; for 1–10 V input, accuracy is ±9 mV.
Q7: What type of external connections are available?
A7: It supports pressure clamp terminals, MIL cable, or dedicated signal cable.
Q8: What is the physical size and weight of the module?
A8: Dimensions are 130 x 124 x 32.8 mm, and the weight is approximately 0.29 kg.
