Technical Specifications
| Parameter | Specification |
|---|---|

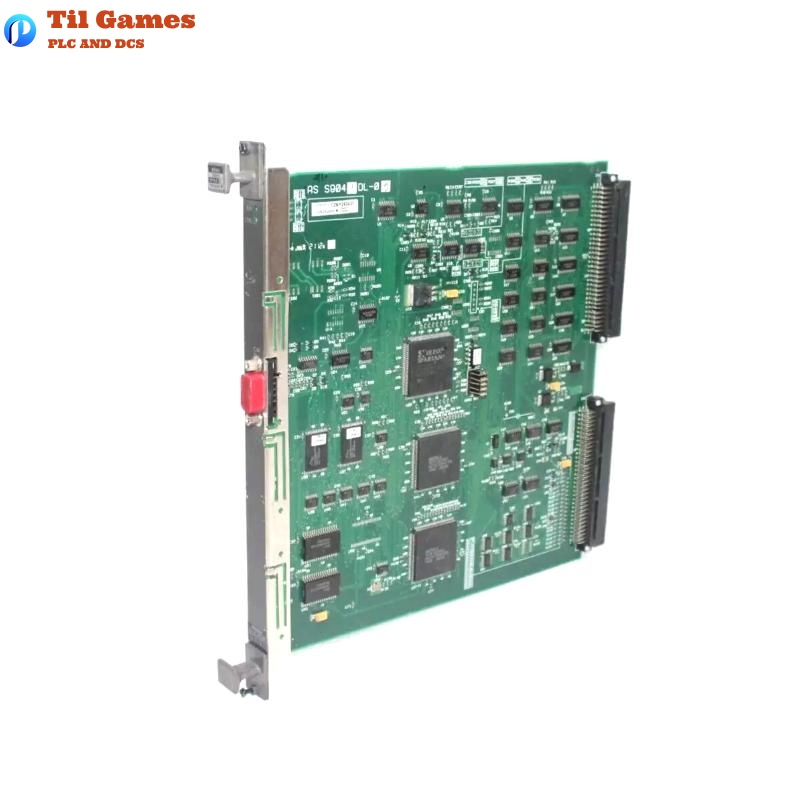

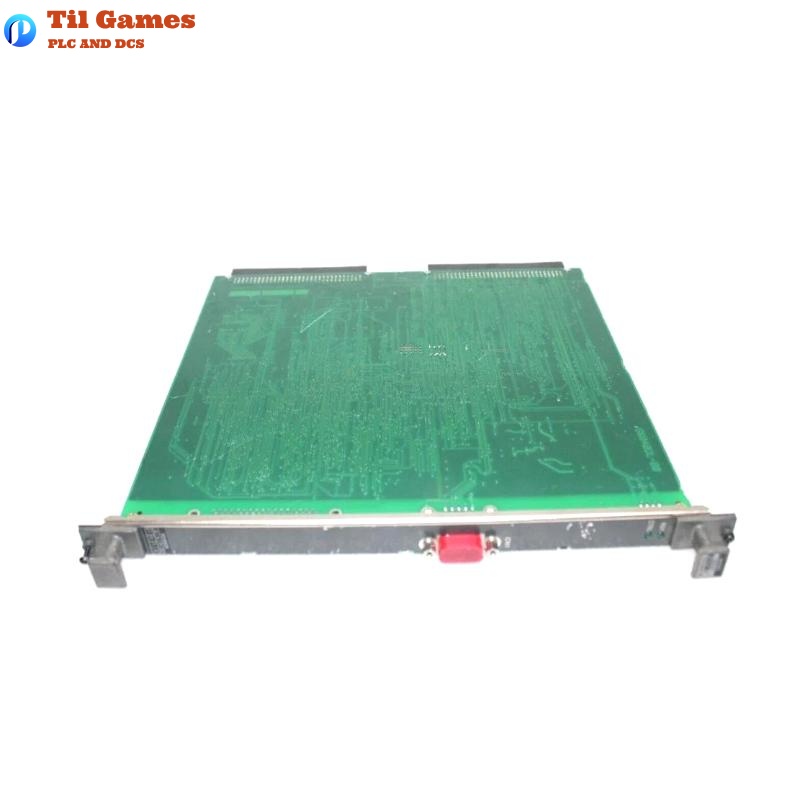

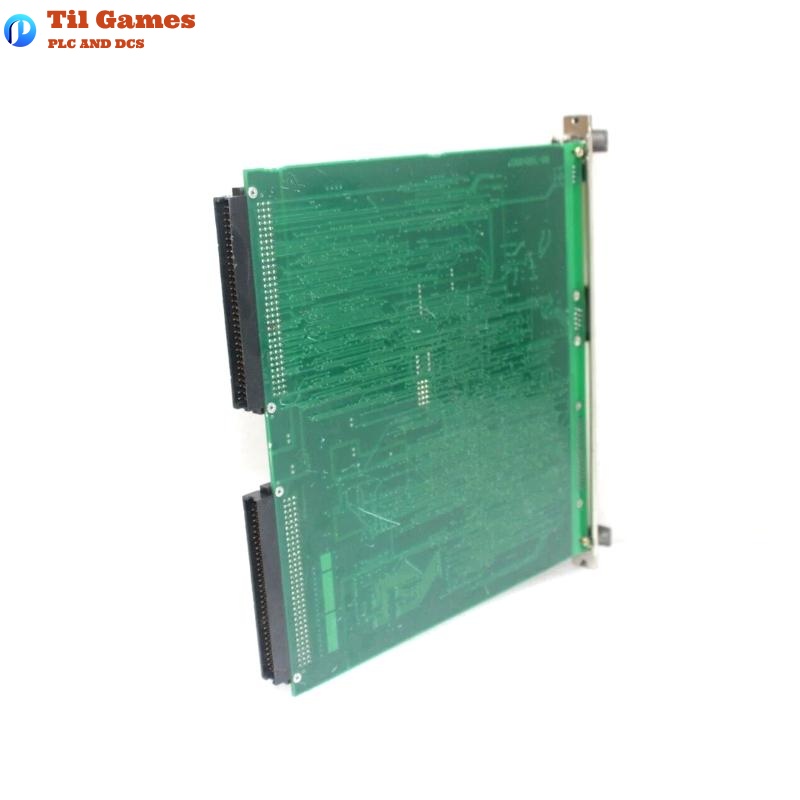

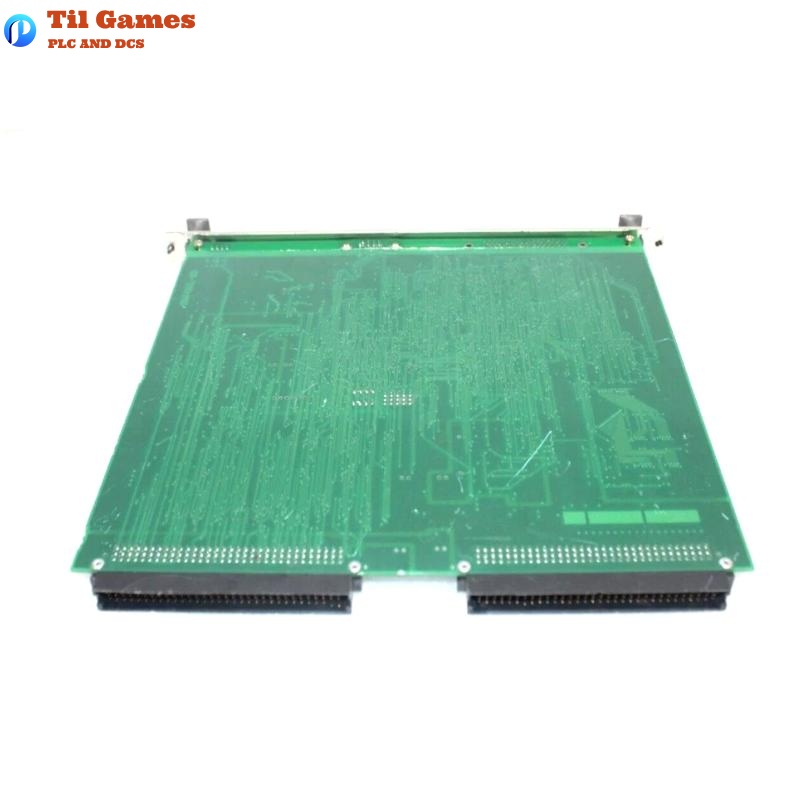

| Product Name | SB302-S1 |
| Description | ESB Bus Interface Card for CENTUM VP |
| Communication Type | ESB Bus Interface |
| Installation | Mounted in V net/IP compatible nodes |
| Compatible System | CENTUM VP |
| Interface | 1 x ESB Bus Port |
| Operating Voltage | Supplied from backplane |
| Cooling Method | Natural convection |
| Ambient Operating Temperature | 0 to 50°C |
| Ambient Storage Temperature | -20 to 70°C |
| Relative Humidity | 5% to 95% (non-condensing) |
| Dimensions (W x H x D) | 160 x 120 x 25 mm |
| Weight | 0.5 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the main function of the SB302-S1 module?
A1: The SB302-S1 functions as an interface card for ESB bus communication between the node unit and I/O modules in CENTUM VP systems.
Q2: Is SB302-S1 compatible with CENTUM CS 3000 systems?
A2: No, the SB302-S1 is specifically designed for CENTUM VP and is not compatible with earlier systems like CENTUM CS 3000.
Q3: Can the SB302-S1 be hot-swapped during operation?
A3: No, hot-swapping is not supported. Power must be turned off before replacing the module.
Q4: How is the SB302-S1 powered?
A4: It is powered through the backplane of the node unit it is installed in.
Q5: What is the recommended operating temperature range for the SB302-S1?
A5: The recommended operating temperature is 0 to 50°C.
Q6: How many ESB buses can the SB302-S1 support?
A6: It supports one ESB bus interface.
Q7: Does SB302-S1 require any special software drivers?
A7: No additional drivers are needed beyond what is included in the CENTUM VP system configuration.
Q8: What happens if SB302-S1 fails during operation?
A8: A hardware fault will be detected by the system, and redundancy mechanisms (if installed) will take over. Manual replacement is required.
