Technical Specifications
| Parameter | Specification |
|---|---|

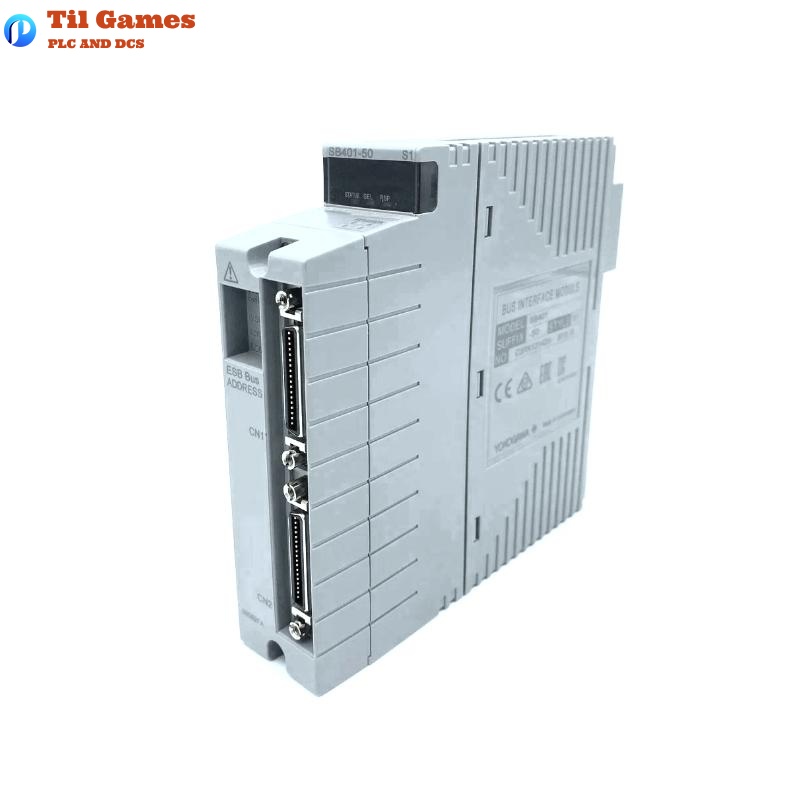

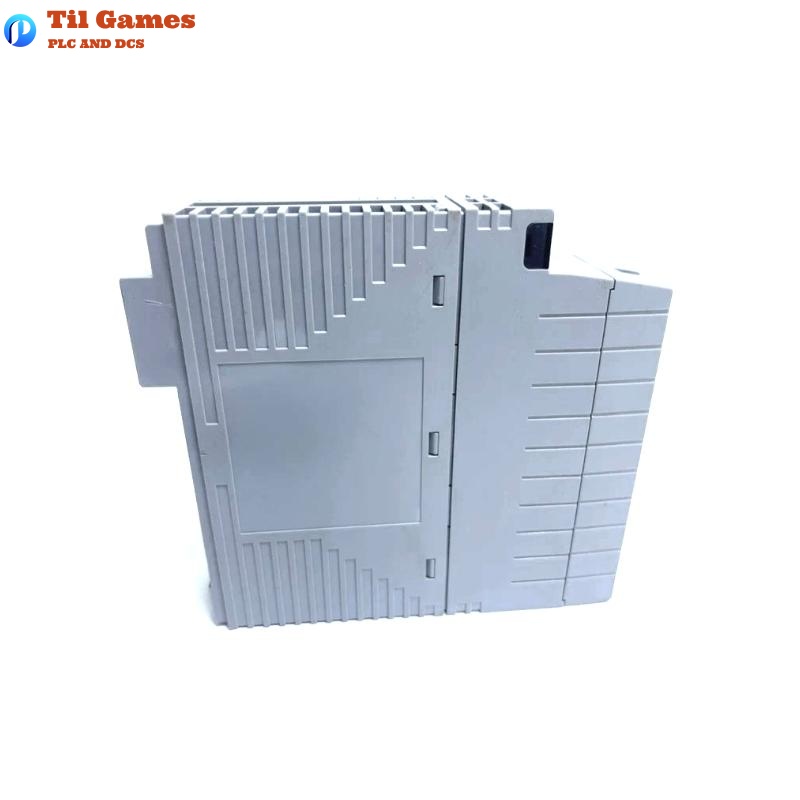

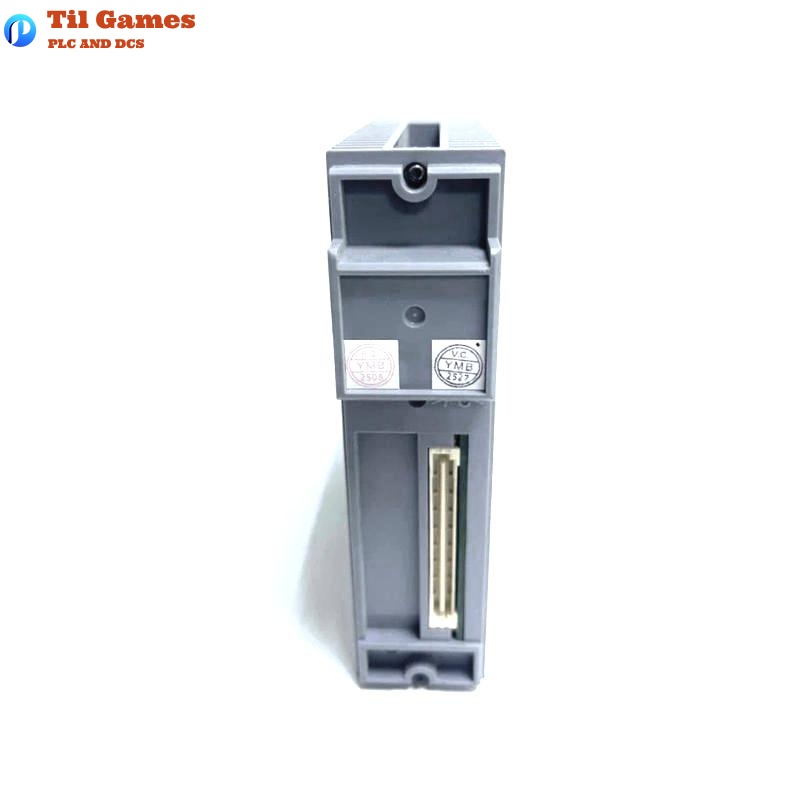

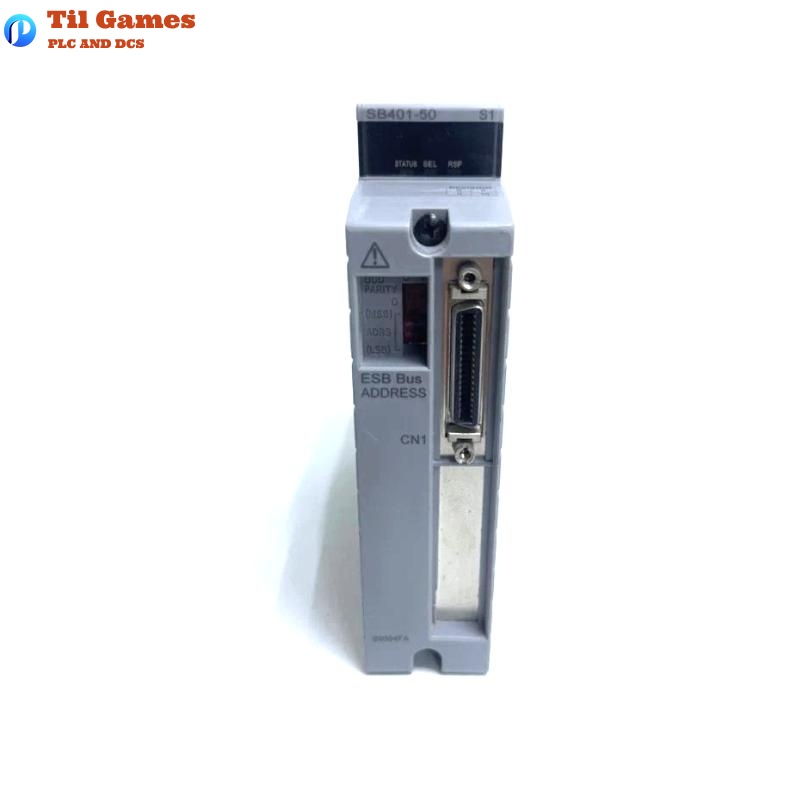

| Model | SB401-50 |
| Function | ESB bus communication interface (slave module) |
| Supported Configuration | Dual-redundant configuration (two SB401 modules) |
| Installation | Mounted in ANB10S or ANB10D node units |
| Power Supply | Supplied via node unit (PW481/PW482/PW484) |
| Mounting Type | 19-inch rack |
| I/O Capacity | Supports up to 8 I/O modules |
| Supported Bus | ESB Bus |
| Dimensions (W x H x D) | 130 x 142.5 x 32.8 mm |
| Weight | 0.45 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the function of the SB401-50 module?
A1: It serves as a slave module that connects the field I/O signals to the Field Control Unit (FCU) via the ESB bus.
Q2: Can the SB401-50 module be used in a dual-redundant configuration?
A2: Yes, two SB401 modules can be used in a dual-redundant setup for high availability.
Q3: What type of I/O modules are compatible with the SB401-50?
A3: It supports communication I/O modules such as ALR111, ALR121, ALE111, ALF111, ALP121, and A2LP131.
Q4: Does the SB401-50 require a specific node unit for installation?
A4: Yes, it must be installed within an ANB10S or ANB10D ESB Bus Node Unit.
Q5: What power supply modules are compatible with the SB401-50?
A5: PW481, PW482, and PW484 power modules are used to supply power to the I/O and SB401 modules.
Q6: What is the maximum number of I/O modules that can be connected with one SB401-50?
A6: Up to 8 I/O modules can be connected to a single node unit housing the SB401 module.
Q7: What kind of rack mounting does it support?
A7: It is designed for mounting in a 19-inch rack with M5 screws.
Q8: What is the weight and size of the SB401-50 module?
A8: The module measures 130 x 142.5 x 32.8 mm and weighs approximately 0.45 kg.
