Technical Specifications
| Parameter | Description |
|---|---|

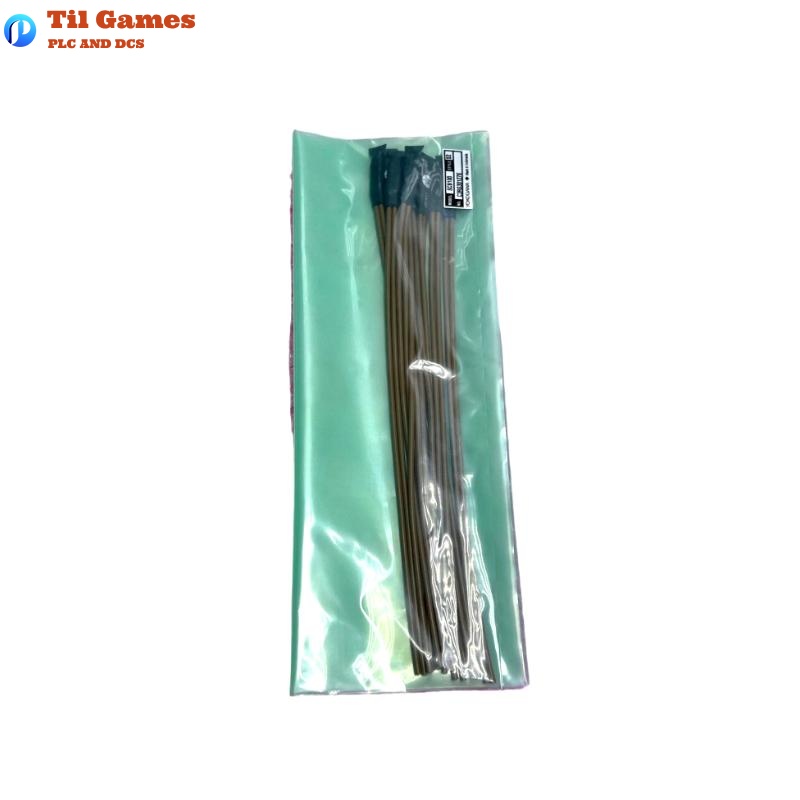

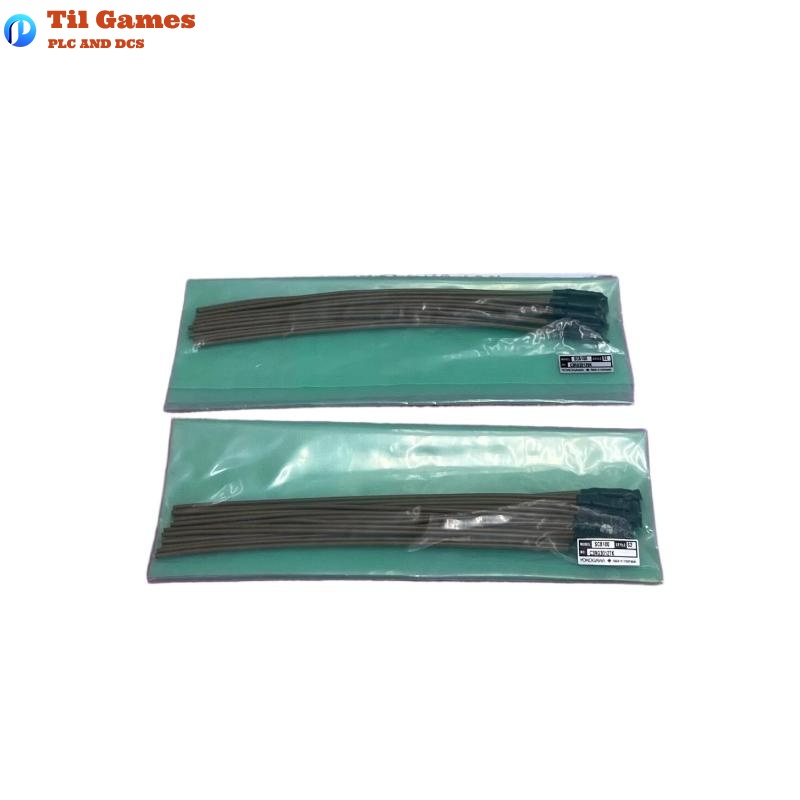

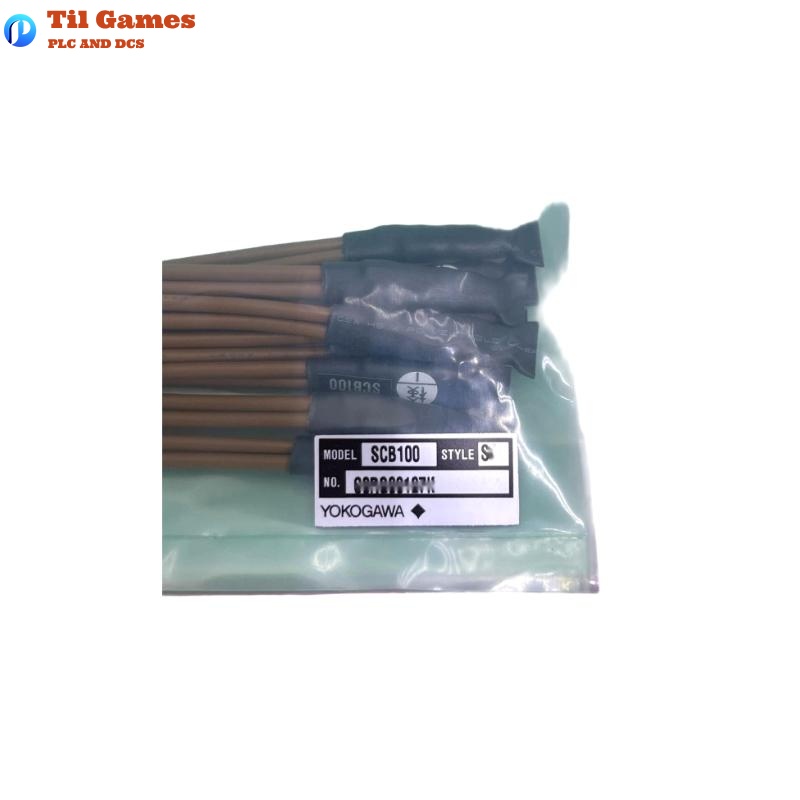

| Model | SCB100-S0 |
| Type | Digital input wiring diagnostic element (open circuit check) |
| Compliance | Conforms to ISA Standard G3 |
| Application | Parallel wiring with SDV144 for detecting OFF signal faults |
| Usage | Wired in parallel with field contact output |
| Number of wires | 8 wires per set |
| Dimensions | 5 × 250 × 10 mm |
| Weight | 0.3 kg |
| Installation | Near the field equipment |
| Structure | Bare wire configuration, no protective housing |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the main function of the SCB100?
A1: It detects open circuit faults when the input signal from field devices is OFF under normal conditions.
Q2: How should the SCB100 be connected?
A2: It should be wired in parallel with the contact output of field equipment and the SDV144 input channel.
Q3: What signal state is the SCB100 designed for?
A3: It is designed for applications where the input signal is normally OFF during regular operation.
Q4: Can the SCB100 detect short circuits?
A4: No, it cannot. Use the SCB110 for short circuit detection.
Q5: Can SCB100 and SCB110 be used together?
A5: Yes, use SCB100 in parallel and SCB110 in series to detect both open and short circuit faults.
Q6: How many wires does the SCB100 have?
A6: Each unit includes 8 wires, suitable for up to 8 input channels.
Q7: Can SCB100 be used in hazardous areas?
A7: Not directly. Additional protective design is required for use in explosive environments.
Q8: Does SCB100 have protective housing?
A8: No, it has a bare wire structure and must be installed with care to avoid physical damage.
