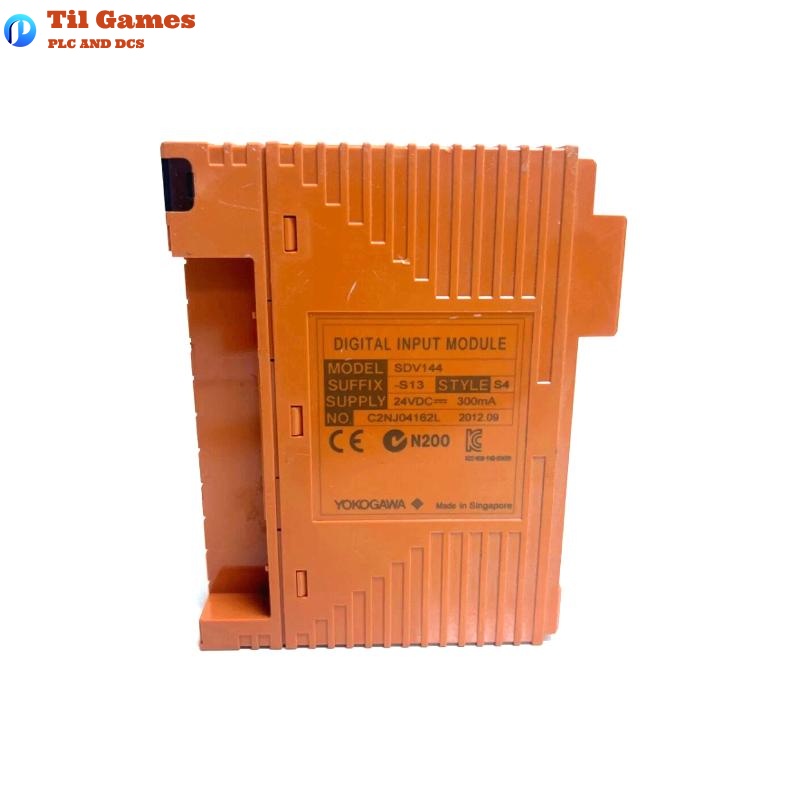

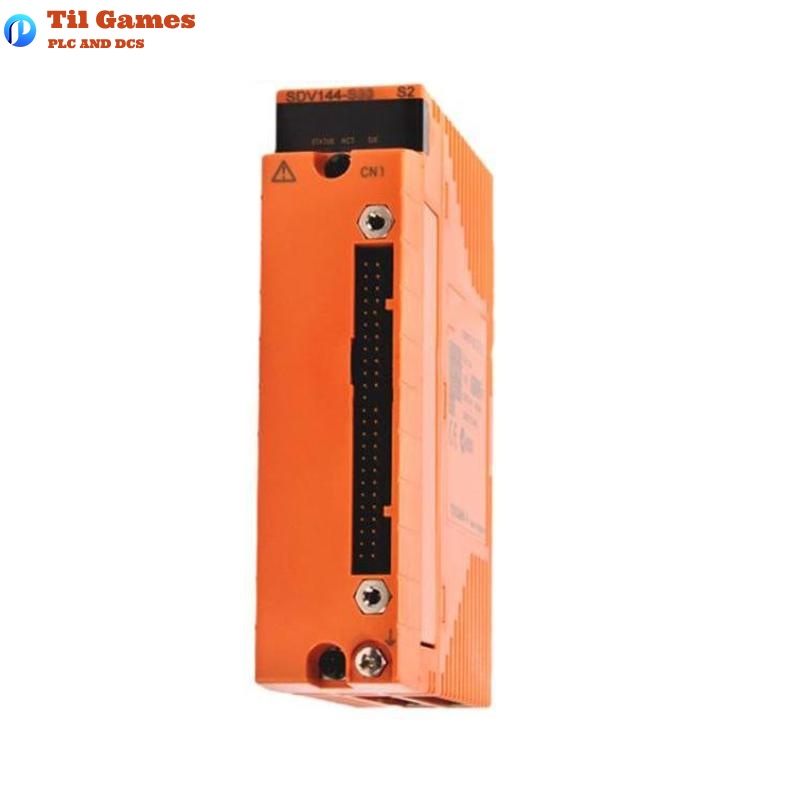

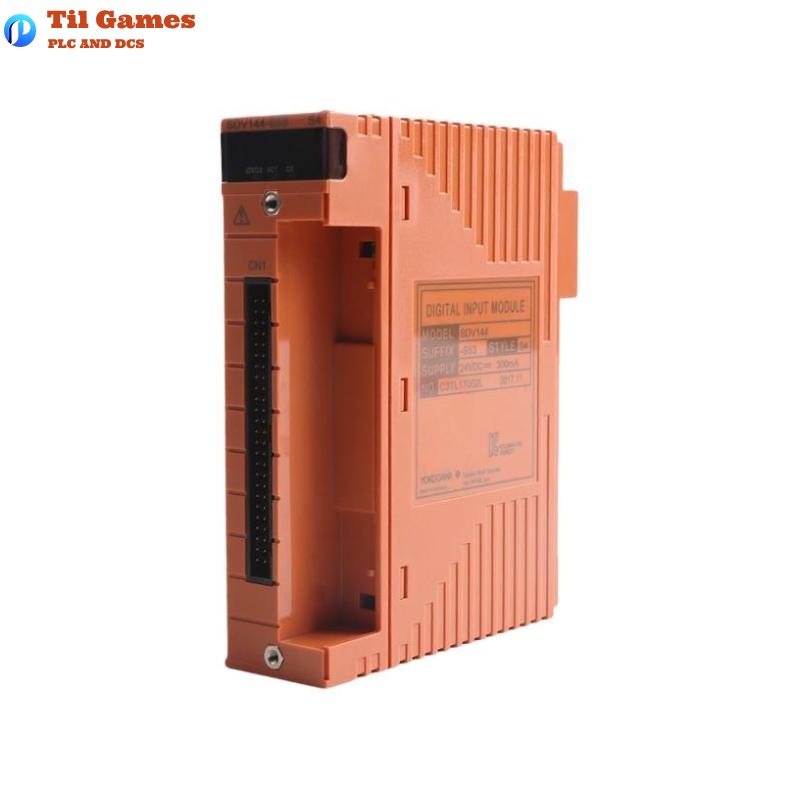

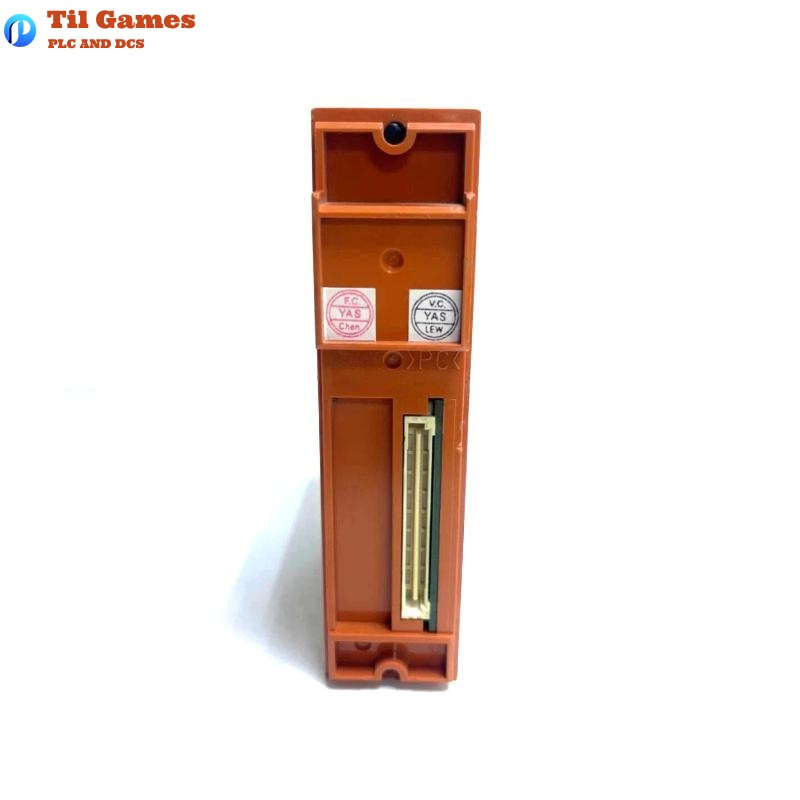

Yokogawa SDV144-S13 Digital Input Module Specifications
| Parameter | Description |
|---|---|
| Model | SDV144-S13 |
| Number of Inputs | 16 channels, module isolation |
| Input Signal Type | No-voltage contact: ON ≤ 1 kΩ, OFF ≥ 100 kΩ |
| Input Current | 6 mA ±20% (external power supply 24 V DC at 0 Ω input) |
| Contact Rating | 24 V DC (+20% / -10%), 10 mA or greater |
| External Power Supply | 24 V DC (+20% / -10%), current capacity: 200 mA |
| Max Allowable Voltage | 30.0 V DC |
| Input Response Time | 40 ms maximum |
| Withstand Voltage | 2 kV AC for 1 minute (between input and system, collectively connected) |
| Current Consumption | Max 290 mA (5 V DC), Max 140 mA (24 V DC) |
| External Connections | Pressure clamp terminal, MIL cable, dedicated signal cable (e.g., AKB331) |
| Dimensions (W x H x D) | 130 x 32.8 x 107.5 mm |
| Weight | Approx. 0.36 kg (with pressure clamp or MIL cable) |
FAQ
Frequently Asked Questions (FAQ)
Q1: How many input channels does the SDV144-S13 module support?
A1: It supports 16 digital input channels with module-level isolation.
Q2: What type of input signals does the module accept?
A2: It accepts no-voltage contact signals, with ON resistance ≤ 1 kΩ and OFF ≥ 100 kΩ.
Q3: What is the standard input current?
A3: The input current is 6 mA ±20%, based on an external 24 V DC power supply at 0 Ω input.
Q4: What is the input response time of the module?
A4: The response time is up to 40 milliseconds.
Q5: What are the power requirements for this module?
A5: It requires an external 24 V DC power supply with +20% / -10% tolerance, and 200 mA current capacity.
Q6: What is the withstand voltage rating?
A6: It withstands 2 kV AC for 1 minute between input signals and system (collectively connected inputs).
Q7: Is the SDV144-S13 module compatible with redundant configuration?
A7: Yes, it supports dual-redundant configuration.
Q8: What are the dimensions and weight of the module?
A8: The module measures 130 x 32.8 x 107.5 mm and weighs approximately 0.36 kg.
