Technical Specifications
| Parameter | Specification |
|---|---|

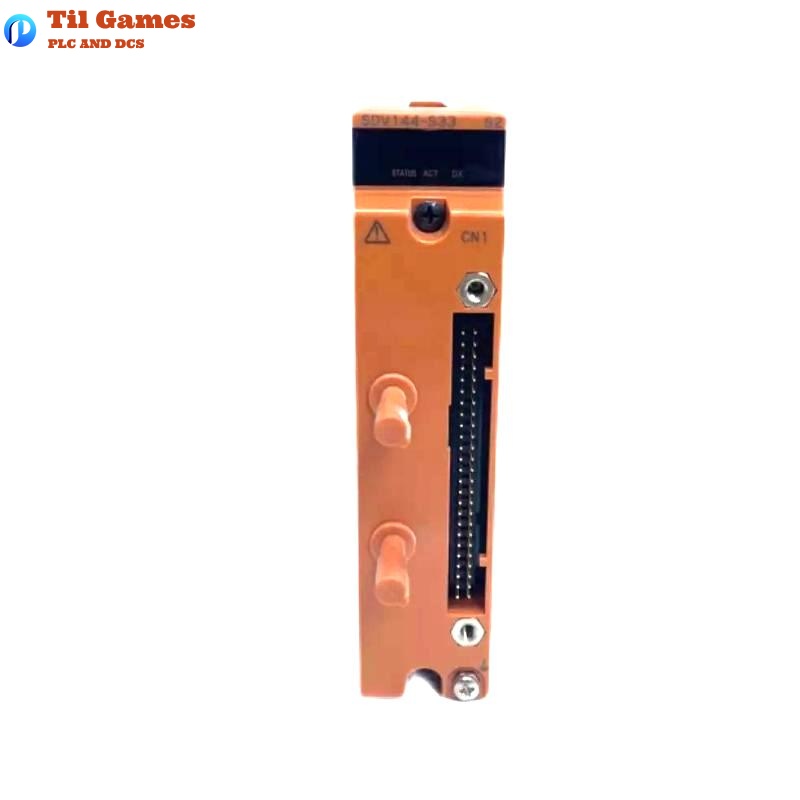

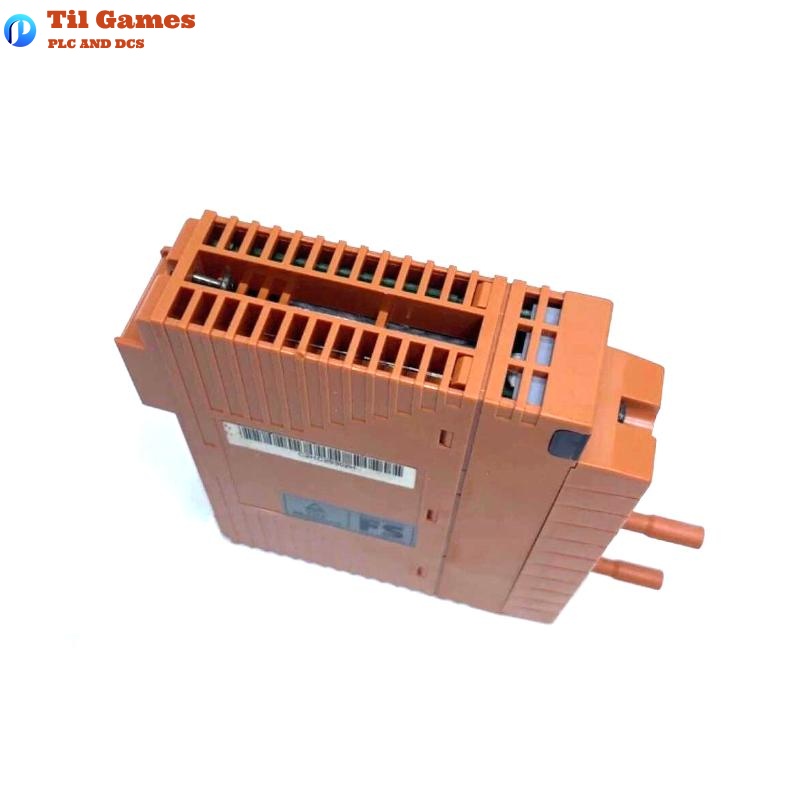

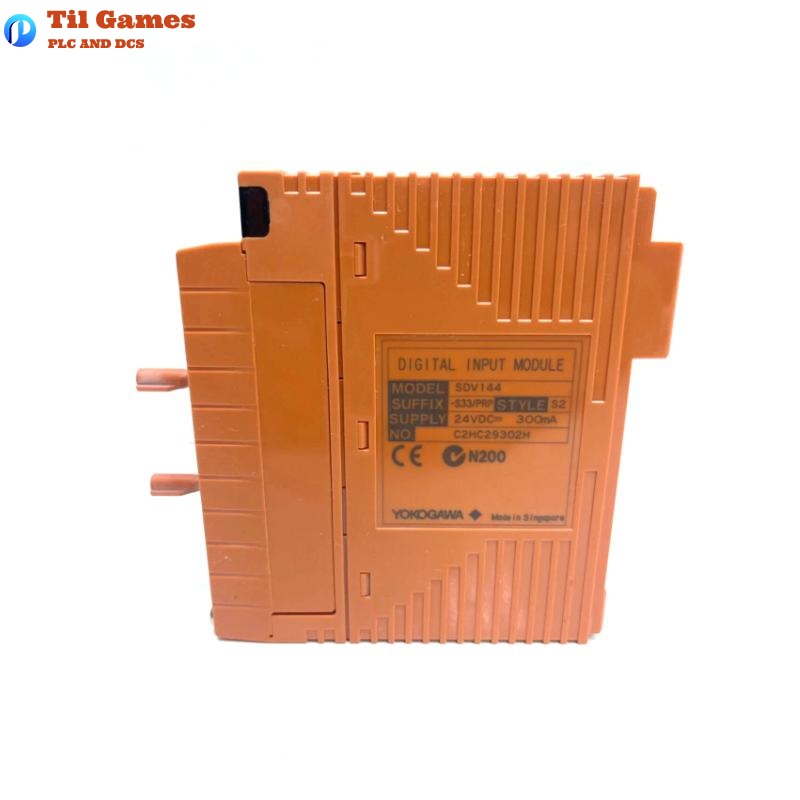

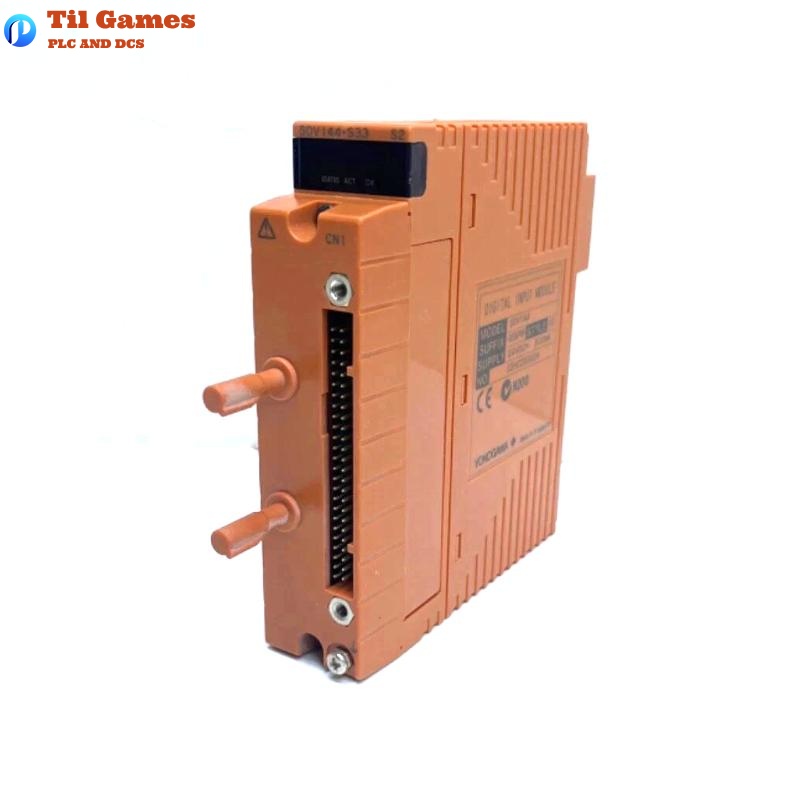

| Model | SDV144-S33/PRP |
| Number of Inputs | 16 channels, module isolated |
| Input Signal Type | Dry contact ON: max 1 kΩ OFF: min 100 kΩ |
| Input Current | 6 mA ±20% (24 V DC external power at 0 Ω input) |
| Contact Rating | 24 V DC ±5%, 10 mA or more |
| External Power Supply | 24 V DC ±5%, current capacity: 200 mA |
| Max Instantaneous Input Voltage | 30.0 V DC |
| Input Response Time | Max 40 ms |
| Withstand Voltage | 2 kV AC between input signal and system for 1 min (all 16 lines tied) |
| Power Consumption | Max 290 mA (5 V DC) Max 140 mA (24 V DC) |
| External Connection | Pressure clamp / MIL cable / Dedicated signal cable (AKB331) |
| Dimensions (W x H x D) | 130 × 32.8 × 107.5 mm |
| Weight | 0.36 kg (with pressure clamp or MIL cable) |
FAQ
Frequently Asked Questions (FAQ)
Q1: What type of input signals does the SDV144-S33/PRP module support?
A1: It supports dry contact signals. ON resistance should be less than 1 kΩ, OFF more than 100 kΩ.
Q2: Is the module isolated?
A2: Yes, it provides module-level isolation for safe and stable operation.
Q3: What is the required external power supply range?
A3: 24 V DC with a tolerance of ±5%, and 200 mA capacity.
Q4: What is the input response time? Is it suitable for real-time use?
A4: Max 40 ms, suitable for general safety input applications without high-speed demand.
Q5: Does the module support redundant configuration?
A5: Yes, it supports dual-redundant installation to enhance reliability.
Q6: How is incorrect insertion prevented?
A6: When /PRP option is selected, a positioning pin is added to prevent incorrect module insertion.
Q7: What is the withstand voltage capability?
A7: It can withstand 2 kV AC for 1 minute between input and system circuits.
Q8: What are the dimensions and weight? Is it suitable for compact installations?
A8: Dimensions are 130 x 32.8 x 107.5 mm, weight is 0.36 kg — ideal for dense cabinet mounting.
