Technical Specifications
| Item | Description |
|---|---|

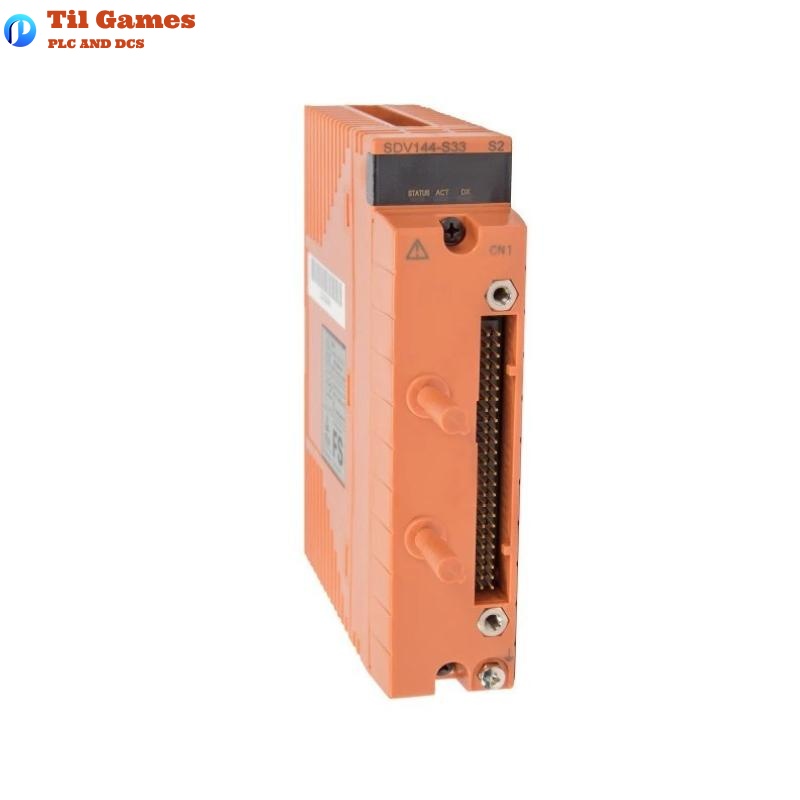

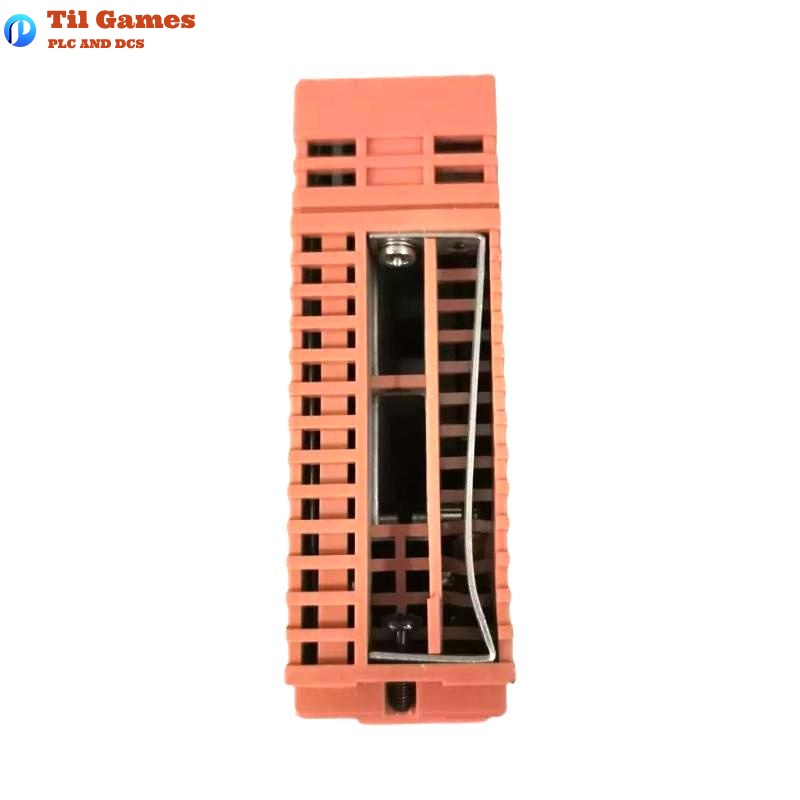

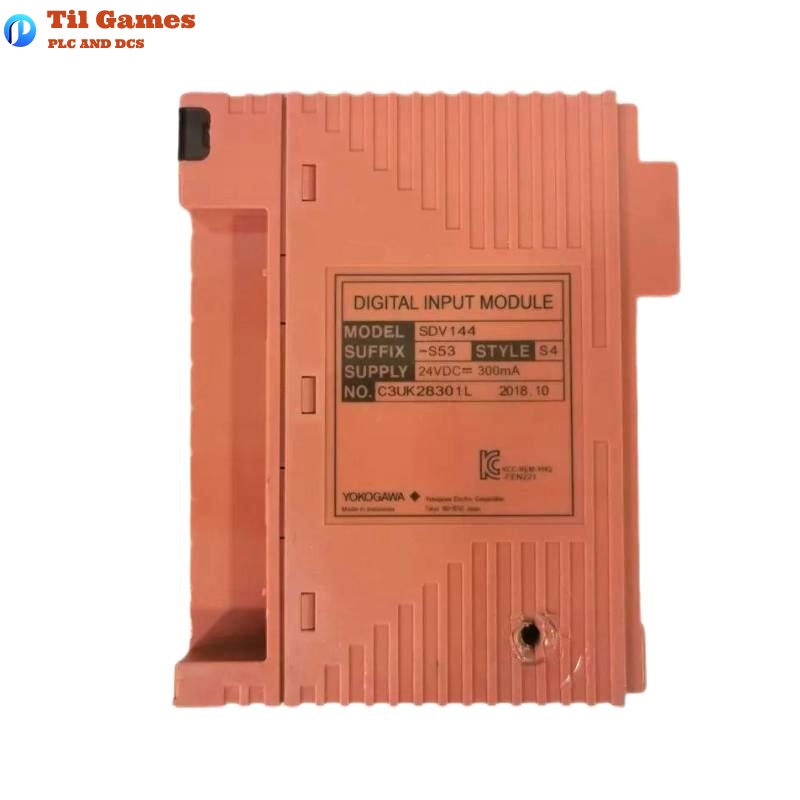

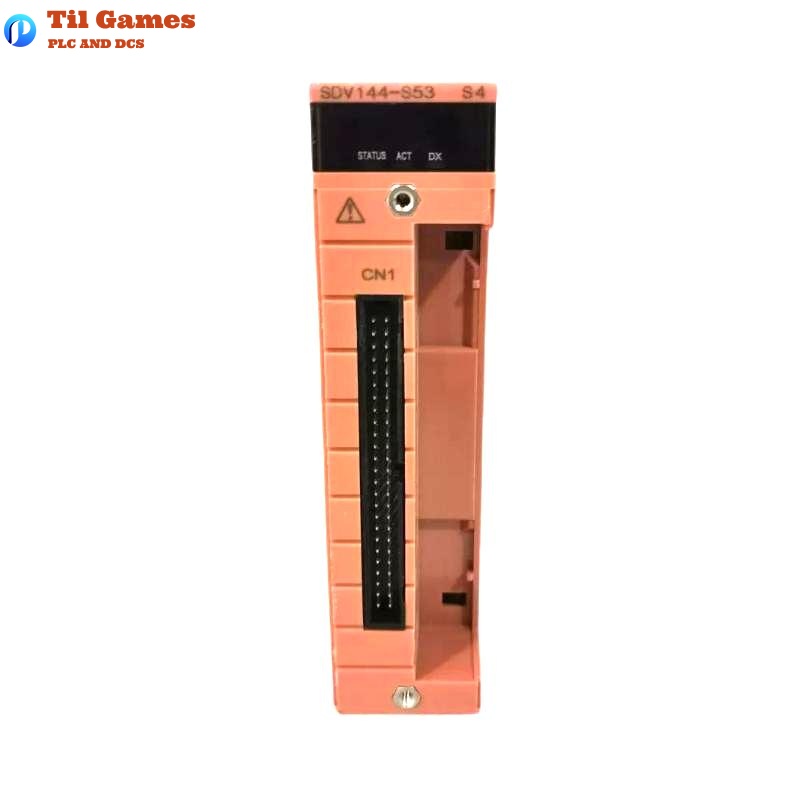

| Model | SDV144-S53 |
| Number of Inputs | 16 channels, module isolation |
| Input Signal Type | No-voltage contact: ON ≤ 1 kΩ, OFF ≥ 100 kΩ |
| Input Current | 6 mA ± 20% (External 24V DC, 0 Ω input) |
| Contact Rating | 24 V DC (+20% / -10%), 10 mA or more |
| External Power Supply | 24 V DC (+20% / -10%) |
| Power Supply Capacity | 200 mA |
| Max Instant Input Voltage | 30.0 V DC |
| Input Response Time | Max 40 ms |
| Withstand Voltage | 2 kV AC between input signals and system (16-point collective connection) |
| Current Consumption | Max 290 mA (5 V DC); Max 140 mA (24 V DC) |
| External Connections | Pressure clamp terminal, MIL cable, dedicated signal cable (AKB331) |
| Dimensions (W x H x D) | 130 × 32.8 × 107.5 mm |
| Weight | Approx. 0.36 kg (excluding signal cable interface adapter) |
FAQ
Frequently Asked Questions (FAQ)
Q1: How many input channels does the SDV144-S53 support?
A1: It supports 16 input channels with module-level isolation.
Q2: What is the standard input signal specification?
A2: The input is a no-voltage contact type: ON at ≤ 1 kΩ and OFF at ≥ 100 kΩ.
Q3: What is the input response time?
A3: The maximum response time is 40 milliseconds.
Q4: What is the withstand voltage capability of the module?
A4: It can withstand 2 kV AC between input lines and system when 16 points are connected collectively.
Q5: What are the external power requirements?
A5: Requires a 24 V DC supply with ±20% tolerance and a capacity of 200 mA.
Q6: What connection options are available?
A6: Connections can be made via pressure clamp terminal, MIL cable, or AKB331 signal cable.
Q7: Is dual-redundancy supported?
A7: Yes, SDV144 modules support dual-redundant configurations for enhanced reliability.
Q8: What are the physical dimensions and weight of the module?
A8: Dimensions are 130 x 32.8 x 107.5 mm, and the weight is approximately 0.36 kg.
