Technical Specifications
| Item | Specification |
|---|---|

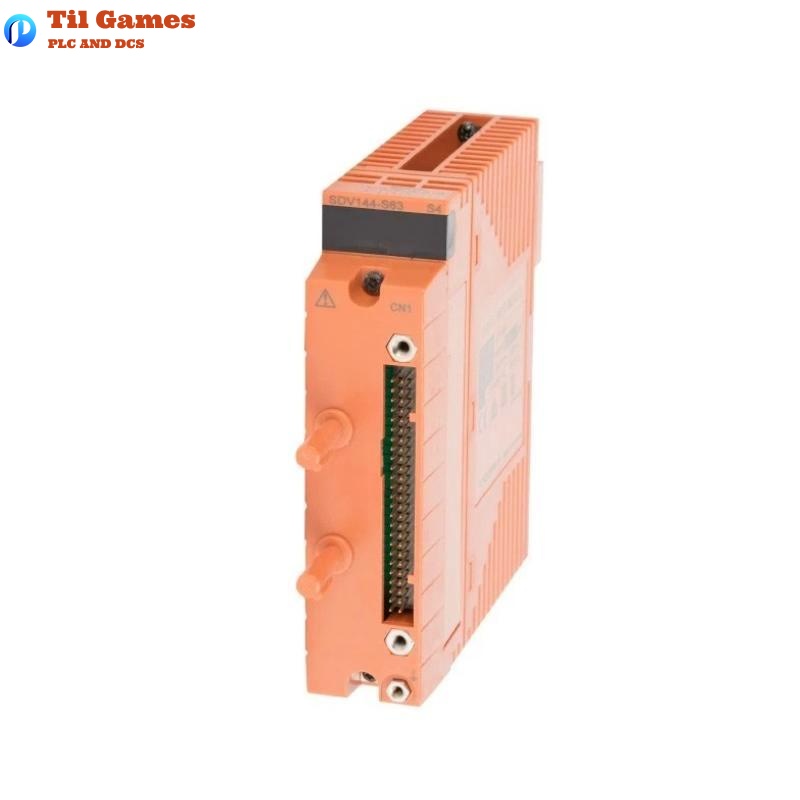

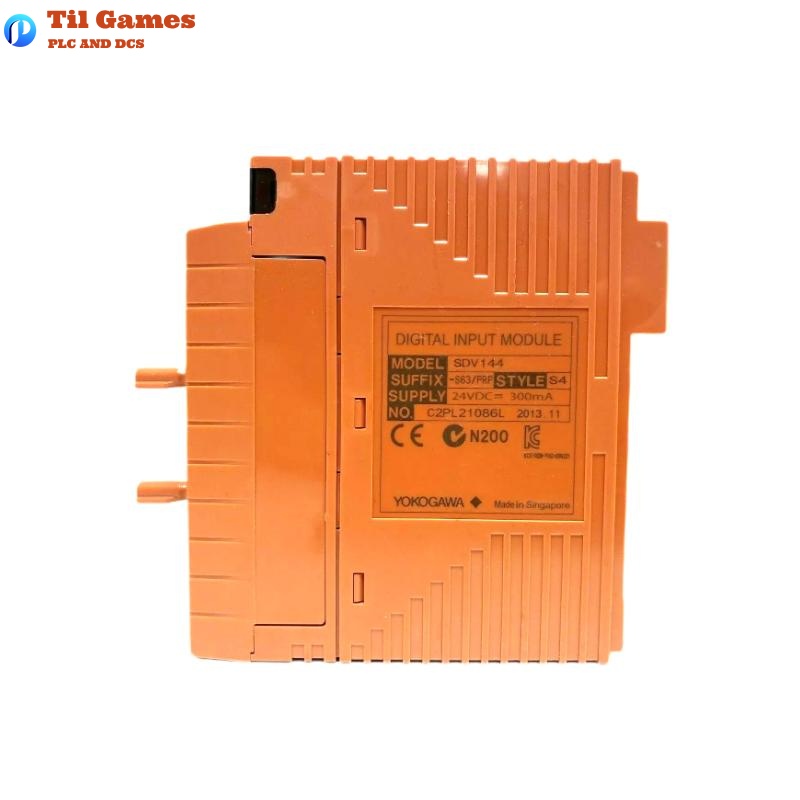

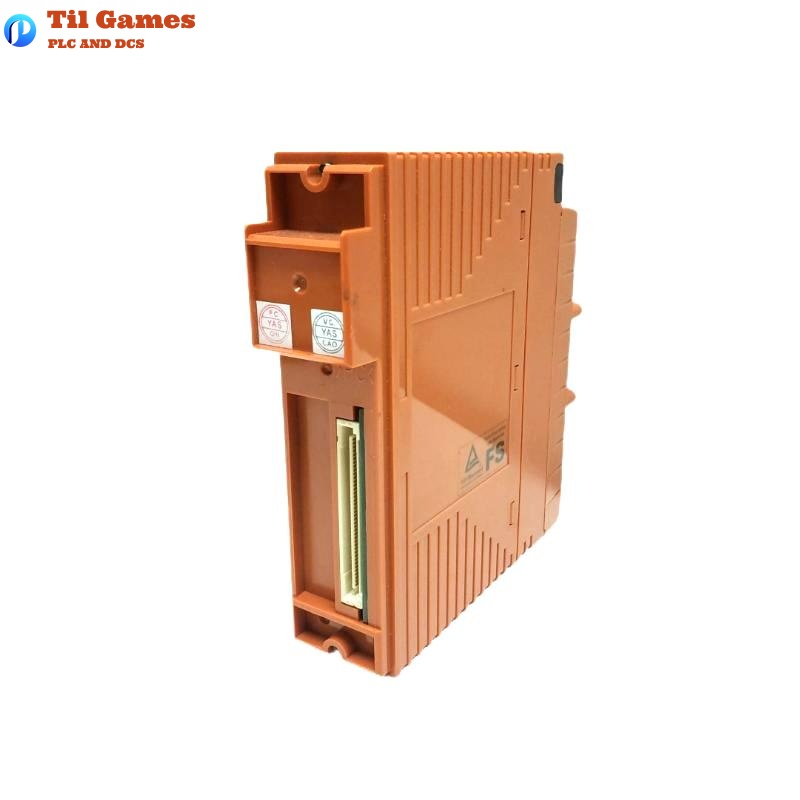

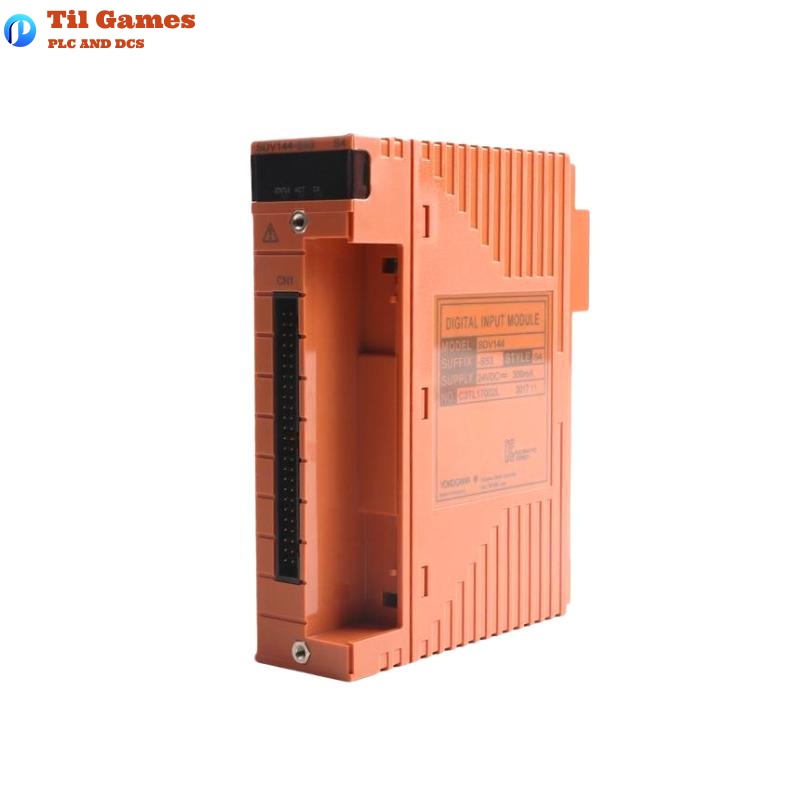

| Model | SDV144-S63 |
| Number of Inputs | 16-channel, module isolation |
| Input Signal | No-voltage contact: ON ≤ 1 kΩ, OFF ≥ 100 kΩ |
| Input Current | 6 mA ±20% (24 V DC external power, 0 Ω input) |
| Contact Rating | 24 V DC ±20%, 10 mA or greater |
| External Power Supply | 24 V DC ±20%, 200 mA capacity |
| Max Instantaneous Input Voltage | 30 V DC |
| Input Response Time | ≤ 40 ms |
| Withstand Voltage | 2 kV AC (between input and system, collectively connected inputs) |
| Current Consumption | 290 mA max (5 V DC), 140 mA max (24 V DC) |
| External Connections | Pressure clamp terminal, MIL cable, or AKB331 signal cable |
| Dimensions (W x D x H) | 130 × 32.8 × 107.5 mm |
| Weight | 0.41 kg (with signal cable interface adapter) |
FAQ
Frequently Asked Questions (FAQ)
Q1: What type of input signal is supported by the SDV144-S63 module?
A1: It supports no-voltage contact inputs (dry contact) with ON ≤ 1 kΩ and OFF ≥ 100 kΩ.
Q2: How many input channels does the module have?
A2: It has 16 isolated input channels.
Q3: What is the response time of the SDV144-S63?
A3: The input response time is ≤ 40 milliseconds.
Q4: What external power supply is required?
A4: A 24 V DC power supply with ±20% tolerance and at least 200 mA current capacity.
Q5: What type of field connections are available?
A5: The module supports pressure clamp terminal, MIL connector, and AKB331 signal cable.
Q6: Can SDV144-S63 be used in dual-redundant configurations?
A6: Yes, it can be configured for dual-redundancy to improve reliability.
Q7: What is the size and weight of the module?
A7: It measures 130 x 32.8 x 107.5 mm and weighs 0.41 kg with the interface adapter.
Q8: Is the module suitable for safety applications?
A8: Yes, SDV144-S63 is designed for use in Yokogawa’s ProSafe-RS safety systems.
