Technical Specifications
| Item | Specification |
|---|---|

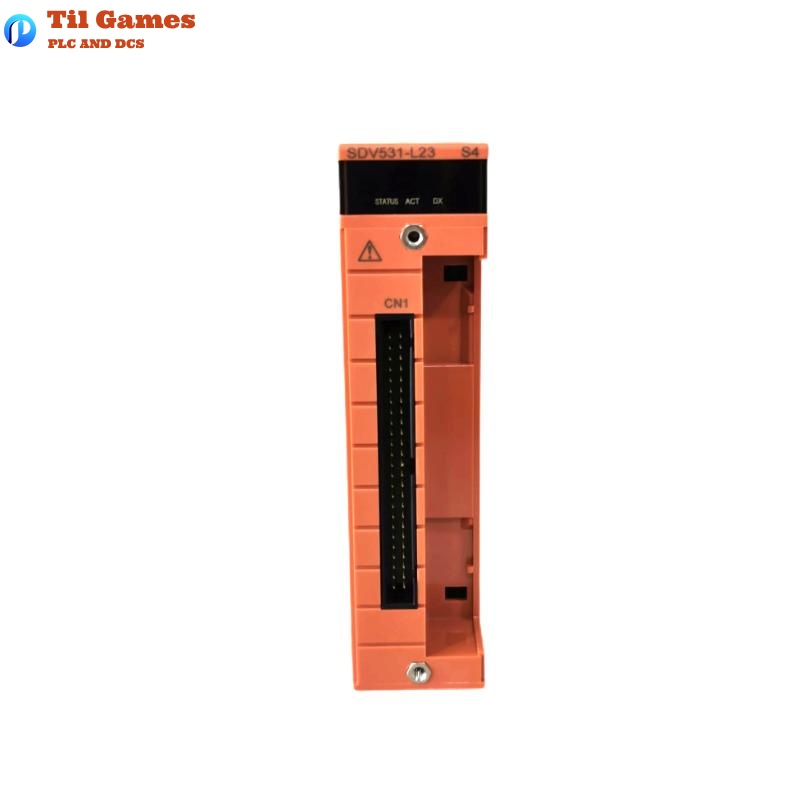

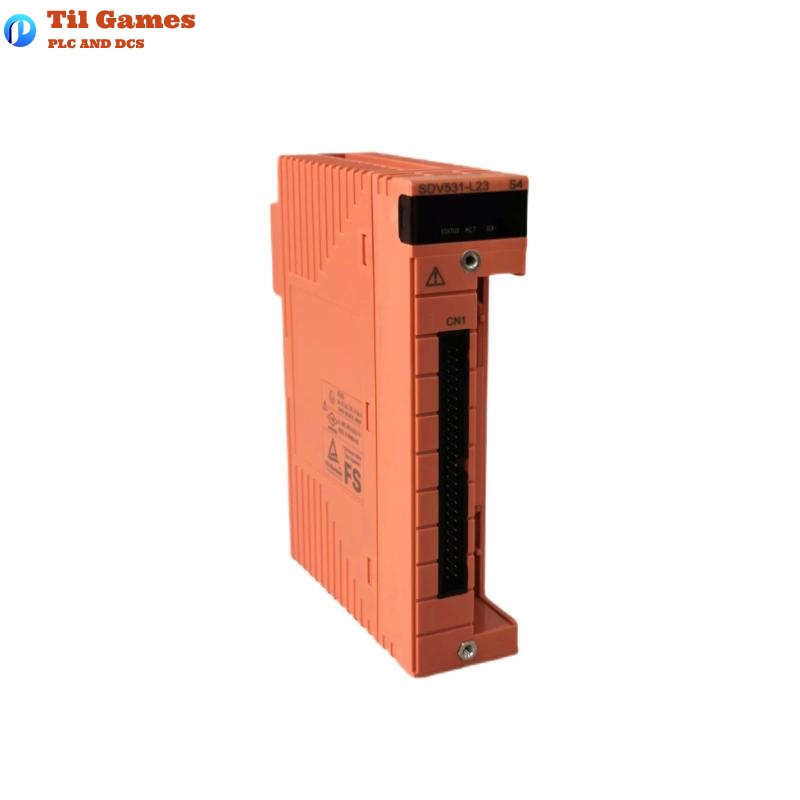

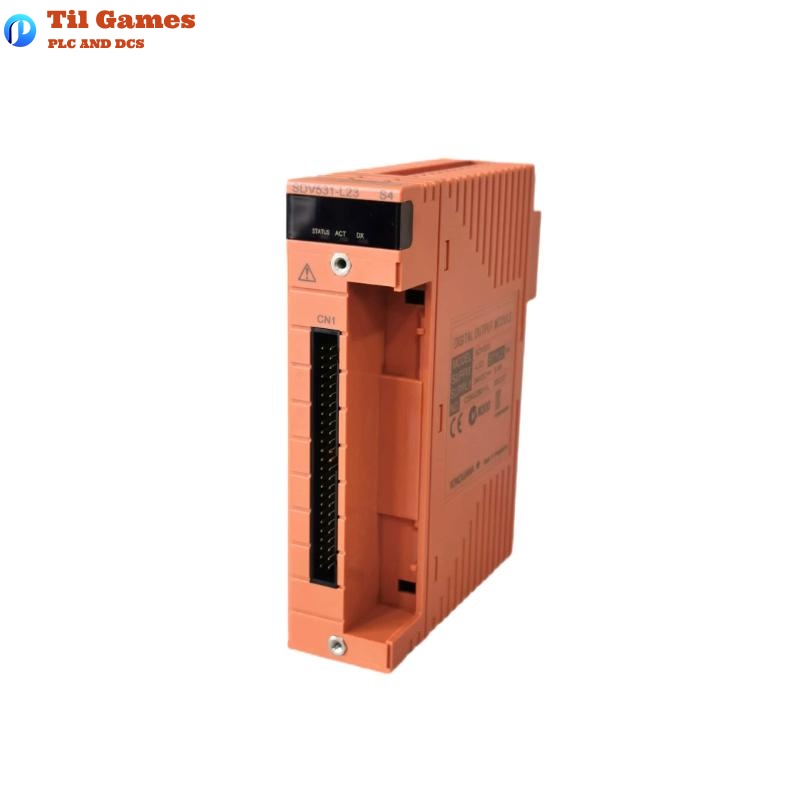

| Model | SDV531-L23 |
| Number of Outputs | 8 channels, module isolation |
| Output Voltage | 24 V DC |
| Voltage Drop | 1 V max |
| External Power Rating | 24 V DC, minimum 5 A |
| External Power Supply | 24 V DC +20% / –10% |
| Max Leakage Current (OFF) | 1.6 mA |
| Output Type | Current source |
| Max Load Current | 0.6 A per channel, total ≤ 4.8 A |
| Min Load Current | 35 mA |
| Load Resistance Range | 40 to 685 Ω |
| Output Response Time | 30 ms max |
| Withstand Voltage | 2 kV AC between outputs and system for 1 minute |
| Current Consumption (5V) | Max 280 mA |
| Current Consumption (24V) | Max 140 mA |
| External Connections | Pressure clamp terminal, MIL cable, AKB331/AKB651 |
| Dimensions (W x H x D) | 130 x 124 x 32.8 mm |
| Weight | 0.28 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: How many output channels does the SDV531-L23 support?
A1: It supports 8 isolated output channels.
Q2: What is the maximum load current per channel?
A2: Maximum 0.6 A per channel, with a total of 4.8 A across all channels.
Q3: What is the output voltage?
A3: 24 V DC with a maximum voltage drop of 1 V.
Q4: Does the module provide channel isolation?
A4: Yes, it provides module-level isolation per output.
Q5: What are the external power supply requirements?
A5: Requires 24 V DC with at least 5 A capacity, and voltage range of +20% / –10%.
Q6: What is the output response time?
A6: Maximum response time is 30 milliseconds.
Q7: What is the withstand voltage of this module?
A7: 2 kV AC between output signal lines and system for one minute.
Q8: What are the connection methods supported?
A8: It supports pressure clamp terminal, MIL cable, and dedicated signal cables such as AKB331 and AKB651.
