Technical Specifications
| Parameter | Description |
|---|---|

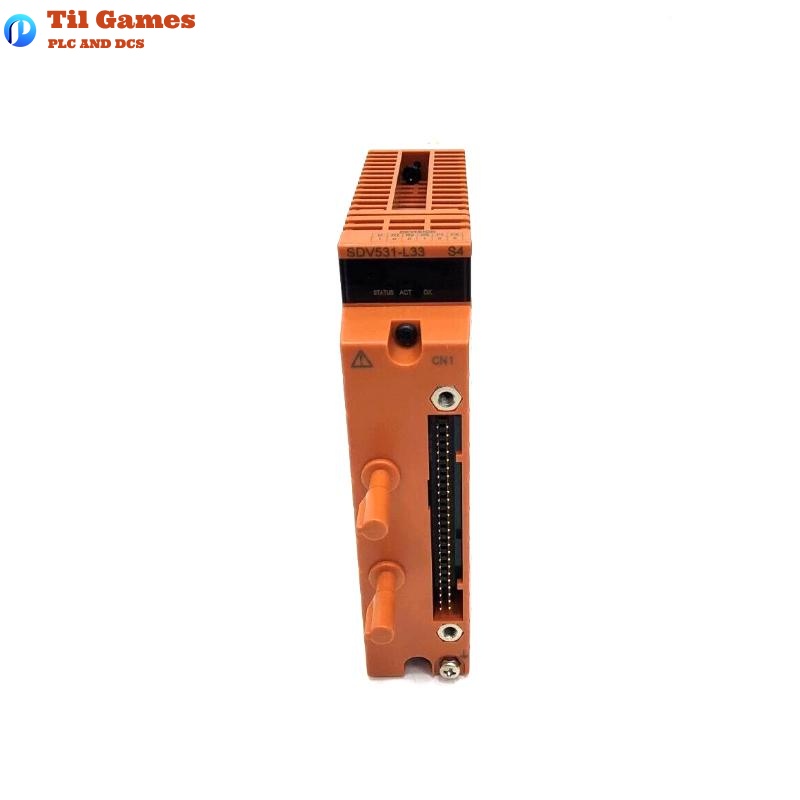

| Model | SDV531-L33 |
| Number of Outputs | 8 channels, module isolation |
| Output Voltage | 24 V DC |
| Voltage Drop | Max 1 V |
| External Power Supply | 24 V DC ±20% |
| Current Capacity | Minimum 5 A |
| Output Format | Current source |
| Max Load Current | 0.6 A per channel |
| Total Output Current | Up to 4.8 A combined |
| Min Load Current | 35 mA |
| Load Resistance Range | 40 to 685 Ω |
| Output Response Time | Max 30 ms |
| Leakage Current (OFF) | Max 1.6 mA |
| Withstand Voltage | 2 kV AC between outputs and system for 1 minute |
| Power Consumption (5 V) | Max 280 mA |
| Power Consumption (24 V) | Max 140 mA |
| Dimensions | 130 × 124 × 32.8 mm |
| Weight | 0.28 kg |
| External Connections | Pressure clamp terminal, MIL cable, AKB331/AKB651 cables |
FAQ
Frequently Asked Questions (FAQ)
Q1: How many output channels does the SDV531-L33 support?
A1: It supports 8 isolated digital output channels.
Q2: What is the minimum load current required for proper output?
A2: The minimum load current is 35 mA. Below this, output behavior may be unreliable.
Q3: What is the maximum output current of the module?
A3: Maximum 0.6 A per channel, with a total combined limit of 4.8 A.
Q4: Is redundant configuration supported?
A4: Yes, SDV531 supports redundant setup. A matching unit is required for implementation.
Q5: Does the module leak current when OFF?
A5: Yes, the maximum leakage current when off is 1.6 mA.
Q6: What are the dimensions and weight of the module?
A6: 130 × 124 × 32.8 mm, weighing approximately 0.28 kg.
Q7: What is the output response time?
A7: The maximum response time is 30 milliseconds.
Q8: Are dedicated cables necessary for operation?
A8: Yes, it is recommended to use AKB331 or AKB651 signal cables for reliable performance.
