Technical Specifications
| Item | Specification |
|---|---|

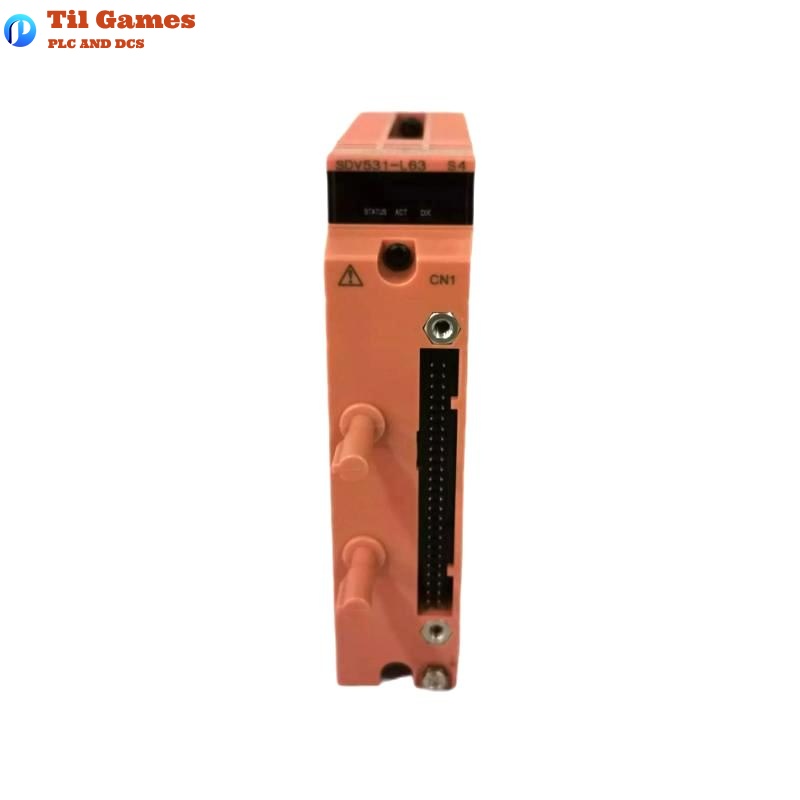

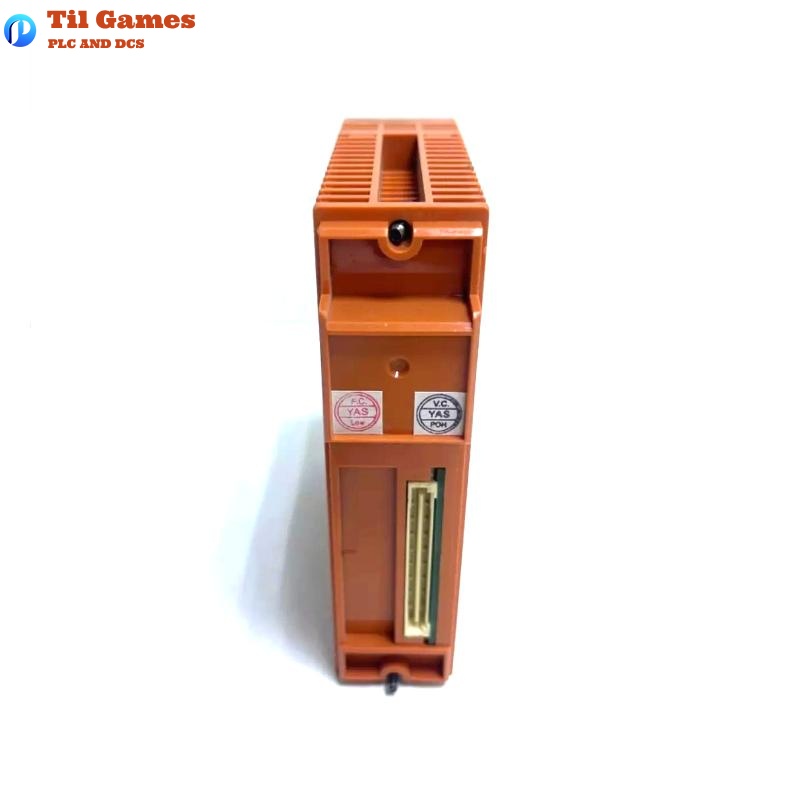

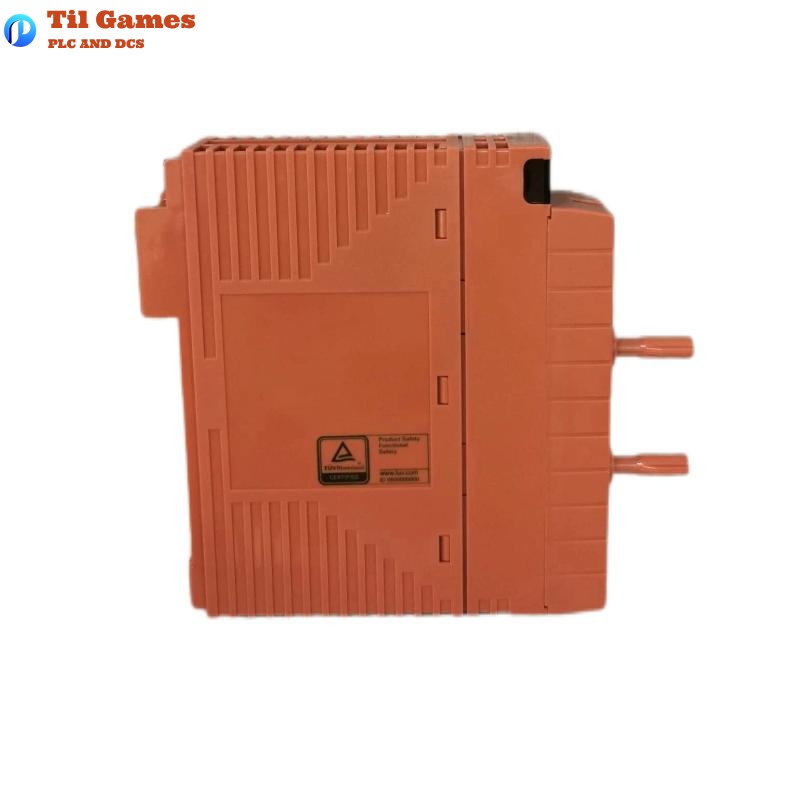

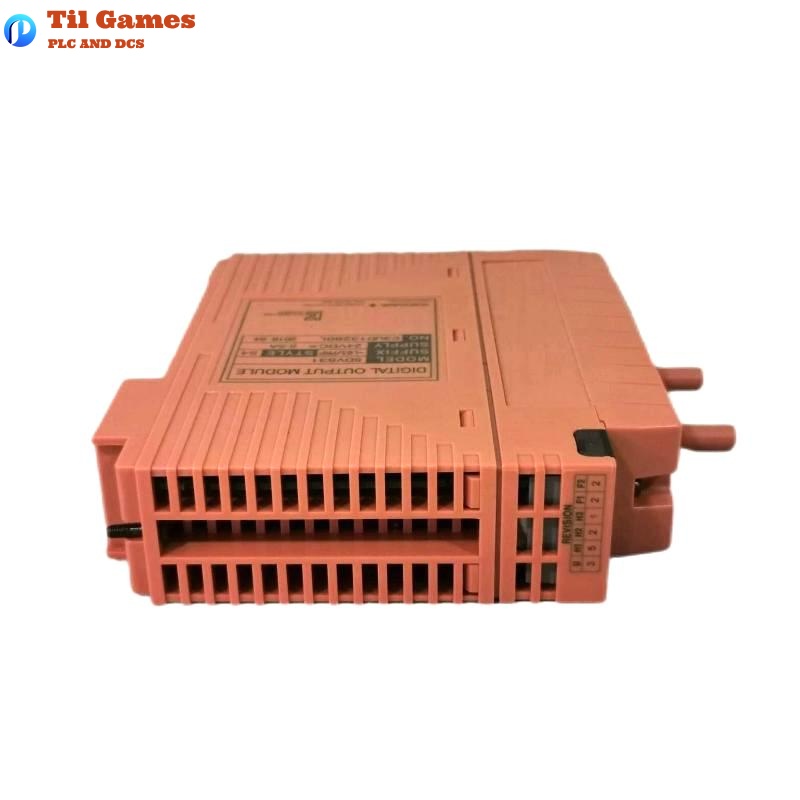

| Model | SDV531-L63 |
| Number of Output Channels | 8 channels, module isolated |
| Output Voltage | 24 V DC |
| Output Voltage Drop | Max. 1 V |
| External Power Supply | 24 V DC, +20% / -10% allowed |
| Power Supply Current Rating | Minimum 5 A |
| Output Format | Current source |
| Max Load Current | 0.6 A per channel, max total 4.8 A |
| Min Load Current | 35 mA |
| Load Resistance Range | 40 to 685 Ω |
| Output Response Time | Max. 30 ms |
| Leakage Current (Off State) | Max. 1.6 mA |
| Withstand Voltage | 2 kV AC (output to system), 1 minute |
| Power Consumption (5 V DC) | Max. 280 mA |
| Power Consumption (24 V DC) | Max. 140 mA |
| External Connections | Pressure clamp terminal, MIL cable, AKB331/AKB651 cables |
| Dimensions (W x H x D) | 130 x 107.5 x 32.8 mm |
| Weight | 0.34 kg (with signal cable interface adapter) |
FAQ
Frequently Asked Questions (FAQ)
Q1: How many output channels does the SDV531-L63 have?
A1: It has 8 isolated output channels.
Q2: What is the operating voltage of SDV531-L63?
A2: 24 V DC with a tolerance of +20% / -10%.
Q3: What is the maximum load current per channel?
A3: 0.6 A per output channel, with a maximum total of 4.8 A.
Q4: Is there leakage current when the output is off?
A4: Yes, maximum leakage current is 1.6 mA.
Q5: What are the module dimensions?
A5: The dimensions are 130 x 107.5 x 32.8 mm.
Q6: What external connection options are available?
A6: Pressure clamp terminal, MIL cable, and AKB331 or AKB651 signal cables.
Q7: What is the output response time?
A7: The response time is up to 30 milliseconds.
Q8: Does the module provide isolation?
A8: Yes, it features module-level isolation between output channels and the system.
