Technical Specifications
| Parameter | Description |
|---|---|

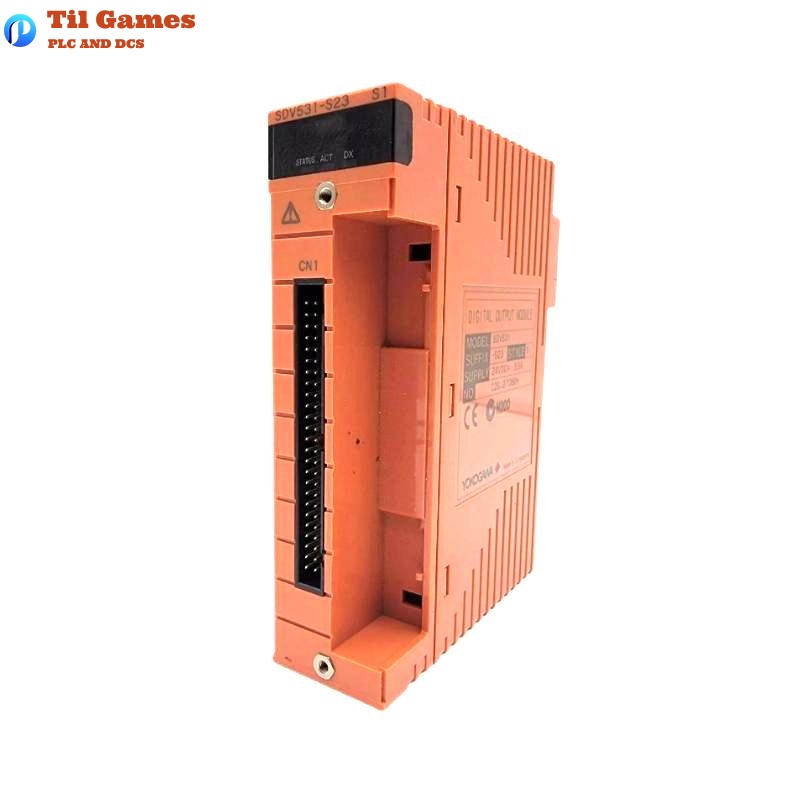

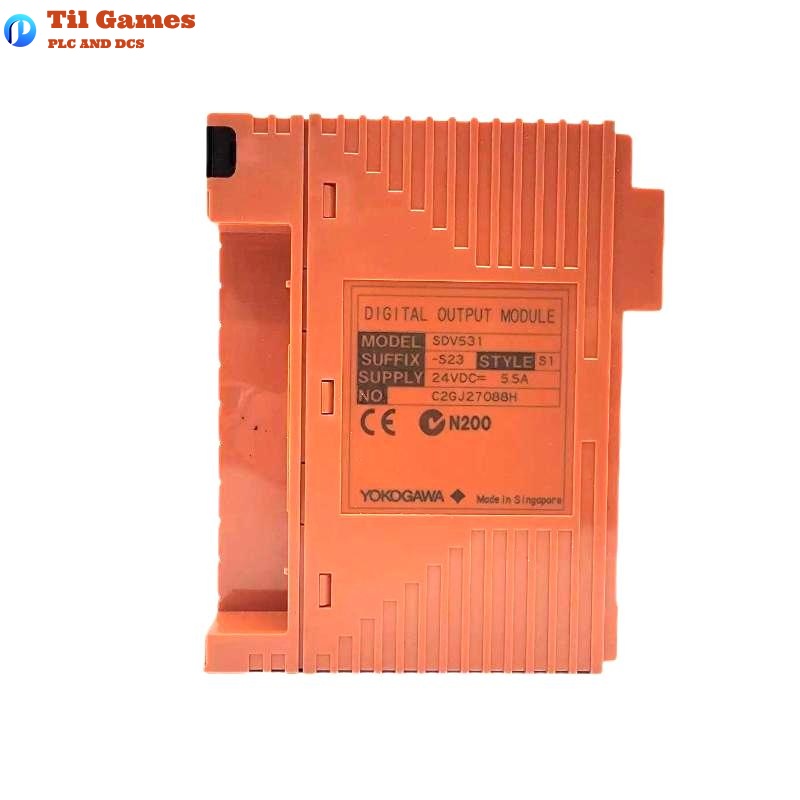

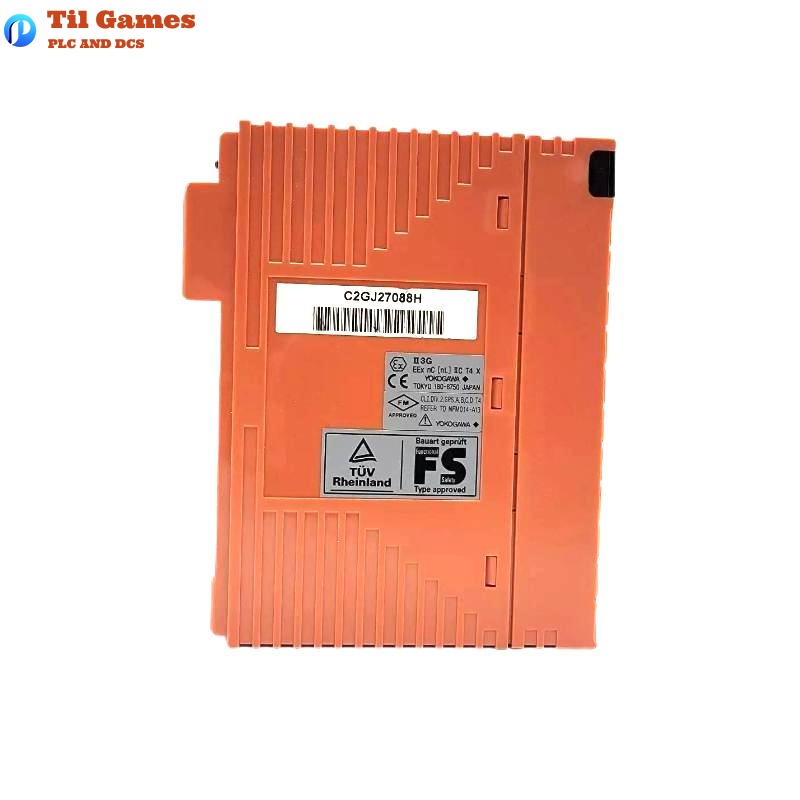

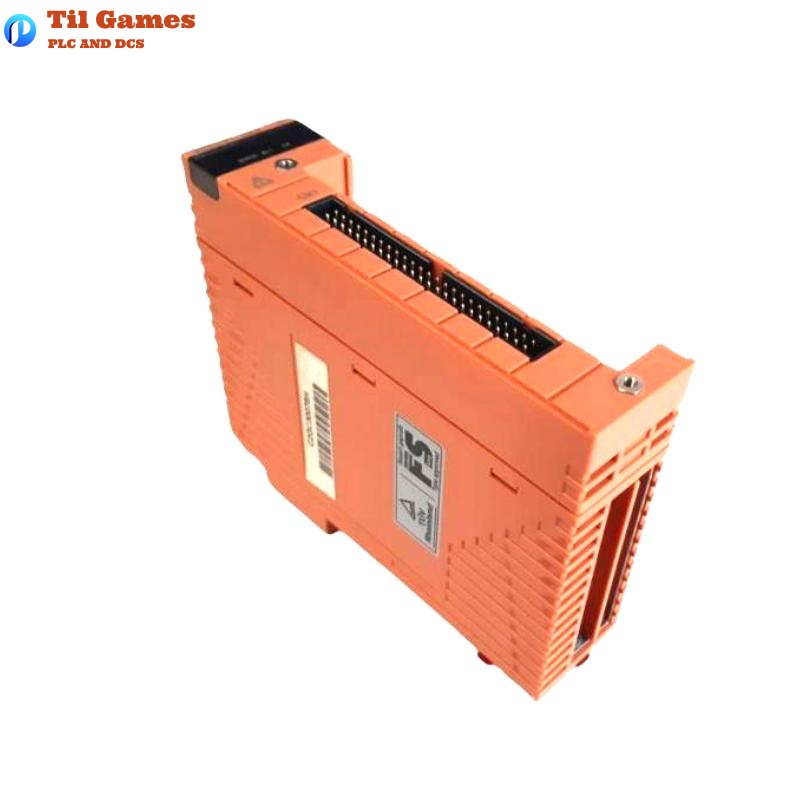

| Model | SDV531-S23 S1 |
| Number of Outputs | 8 channels, module isolation |
| Output Voltage | 24 V DC |
| Voltage Drop | Max 1 V |
| External Power Supply | 24 V DC, min. 5 A |
| Supply Voltage Range | 24 V DC +20% / –10% |
| Max Load Current/Channel | 0.6 A (4.8 A total) |
| Minimum Load Current | 35 mA |
| Load Resistance Range | 40 to 685 Ω |
| Output Format | Current source |
| Leak Current (OFF State) | Max 1.6 mA |
| Output Response Time | Max 30 ms |
| Withstand Voltage | 2 kV AC between output and system (1 min) |
| Power Consumption | Max 280 mA (5 V DC), Max 140 mA (24 V DC) |
| Dimensions | 130 x 107.5 x 32.8 mm |
| Weight | 0.28 kg |
| External Connection | Pressure clamp, MIL cable, AKB331 signal cable |
FAQ
Frequently Asked Questions (FAQ)
Q1: How many output channels does the SDV531-S23 S1 have?
A1: It has 8 isolated digital output channels.
Q2: What is the operating voltage of this module?
A2: The output voltage is 24 V DC, and the external power supply range is +20% / –10%.
Q3: What is the maximum current supported per channel?
A3: Each channel can handle up to 0.6 A, with a total of 4.8 A for the module.
Q4: What type of load is supported?
A4: Loads with resistance ranging from 40 to 685 Ω, including relays and indicator lamps.
Q5: What is the output response time?
A5: The maximum response time is 30 milliseconds.
Q6: What are the dimensions and weight of the module?
A6: It measures 130 x 107.5 x 32.8 mm and weighs approximately 0.28 kg.
Q7: Is the output voltage or current driven?
A7: The output is current source driven.
Q8: Is there any leakage current when the output is off?
A8: Yes, the maximum leakage current in the off state is 1.6 mA.
