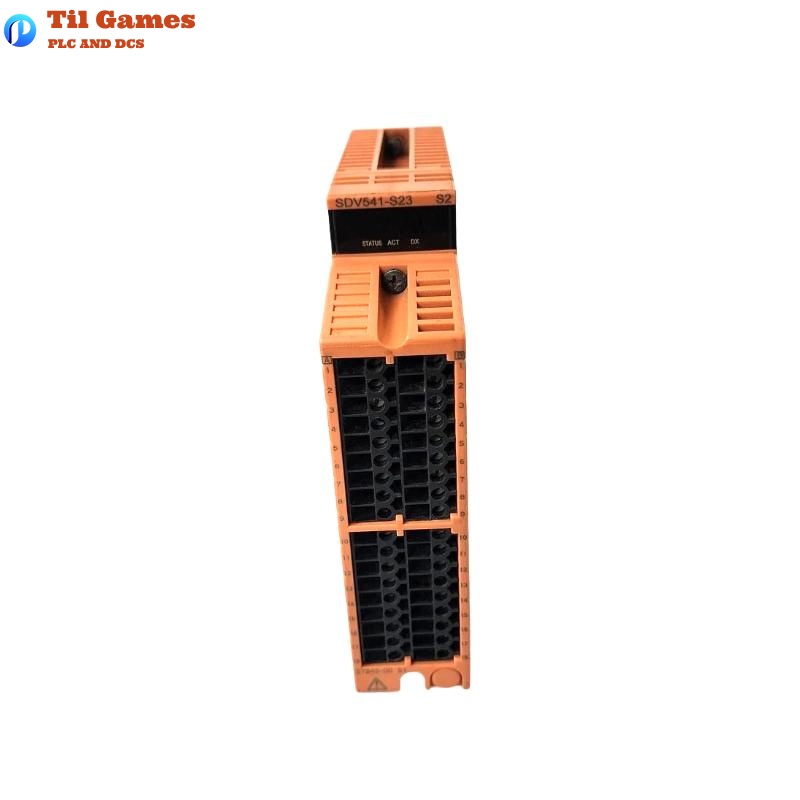

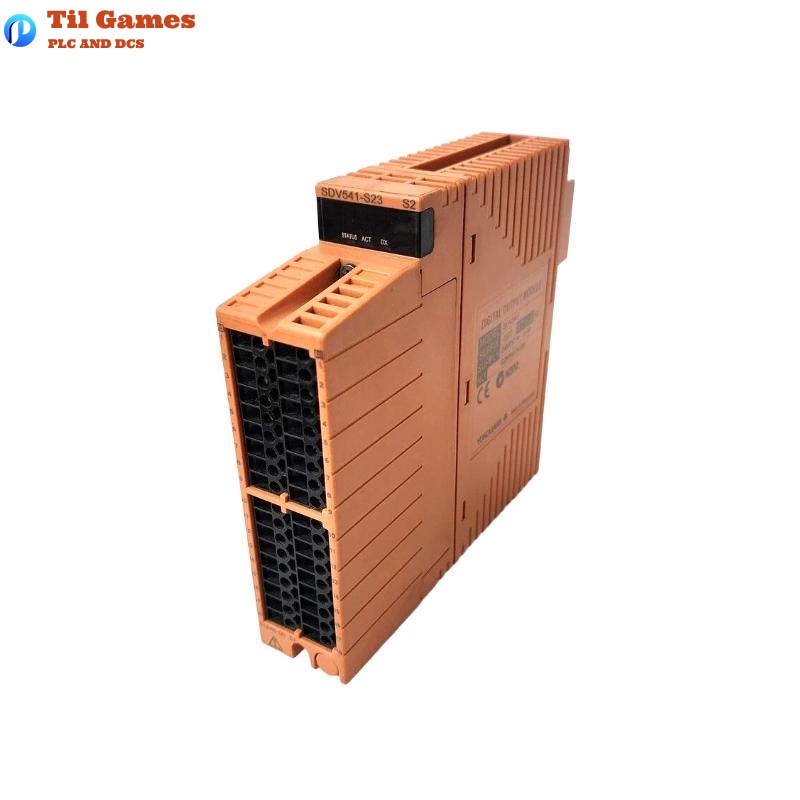

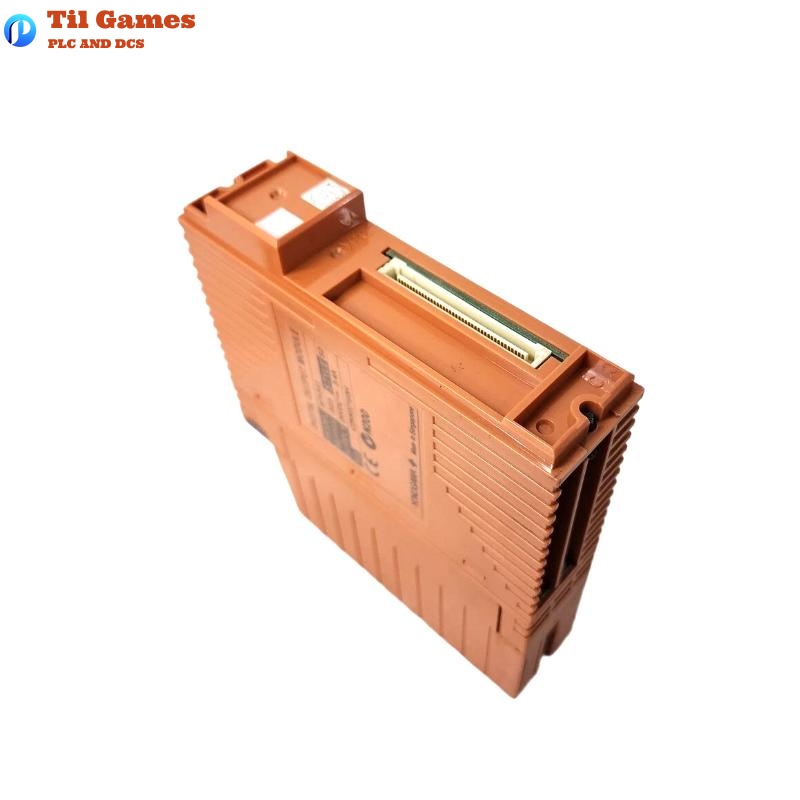

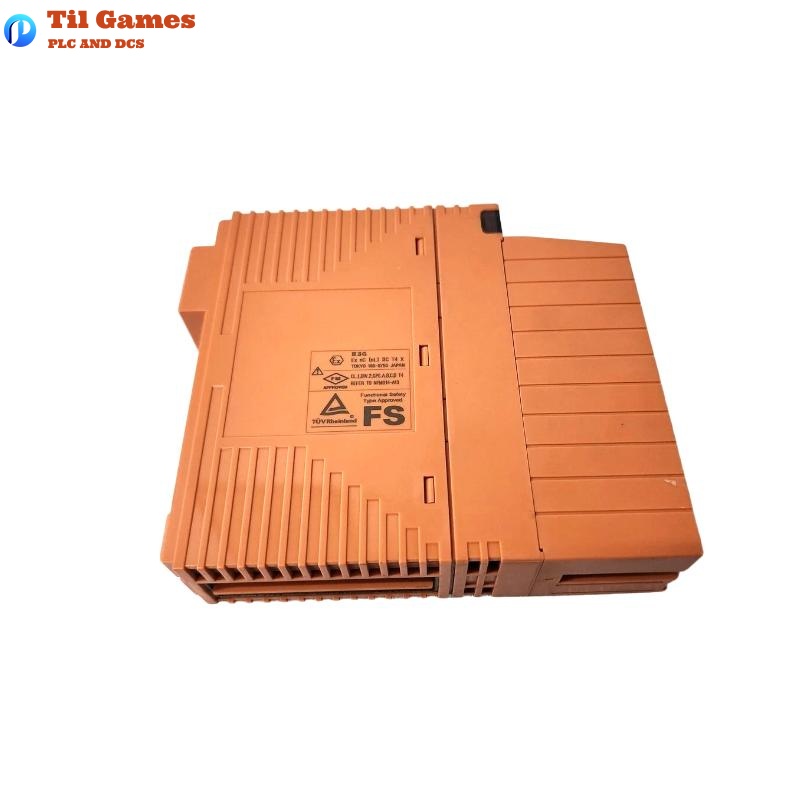

Technical Specifications
| Item | Description |
|---|---|
| Model | SDV541-S23 |
| Number of Outputs | 16 channels, module isolation |
| Output Voltage | 24 V DC |
| Voltage Drop | Max. 1 V |
| Maximum Leakage Current (OFF) | 1.6 mA |
| Output Format | Current source |
| Max Load Current | 0.2 A per channel (3.2 A total) |
| Min Load Current | 35 mA |
| Load Resistance Range | 120 to 685 Ω |
| Output Response Time | Max. 30 ms |
| External Power Supply Rating | 24 V DC, 3.4 A minimum |
| External Power Supply Range | 24 V DC +20% / -10% |
| Withstand Voltage | 2 kV AC between output signal lines and system (1 min) |
| Current Consumption (5 V) | Max. 300 mA |
| Current Consumption (24 V) | Max. 150 mA |
| External Connection | Pressure clamp terminal, MIL cable, signal cable (AKB331, AKB651) |
| Dimensions | 130 x 107.5 x 32.8 mm |
| Weight | 0.29 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: How many output channels does the SDV541-S23 module support?
A1: It supports 16 independent digital output channels with module-level isolation.
Q2: What is the maximum load current per channel?
A2: The maximum load current is 0.2 A per channel, with a total of 3.2 A across all outputs.
Q3: Does the module have leakage current when outputs are off?
A3: Yes, the maximum leakage current in the OFF state is 1.6 mA.
Q4: What is the required external power supply capacity?
A4: The minimum required capacity is 3.4 A at 24 V DC.
Q5: What is the output response time of this module?
A5: The maximum output response time is 30 milliseconds.
Q6: What types of external connections are supported?
A6: It supports pressure clamp terminals, MIL cable, and dedicated signal cables (AKB331, AKB651).
Q7: Does the module offer electrical isolation?
A7: Yes, it provides 2 kV AC isolation between output signals and the system.
Q8: In what environments is the module suitable for use?
A8: The SDV541-S23 is suitable for ISA G3 level and high-density installation environments from -20 to 70°C.
