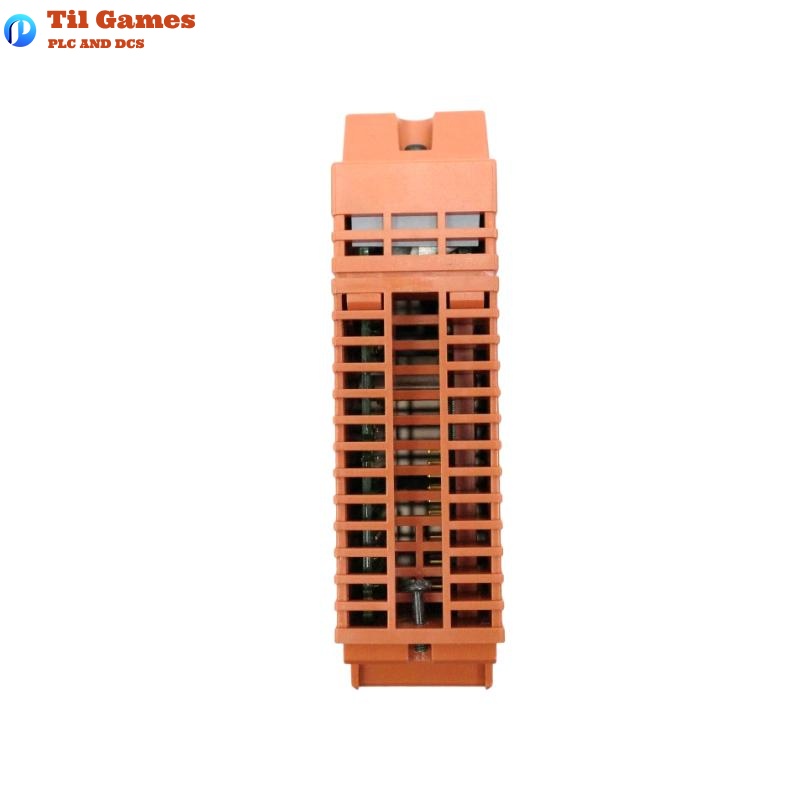

Technical Specifications
| Parameter | Specification |
|---|---|

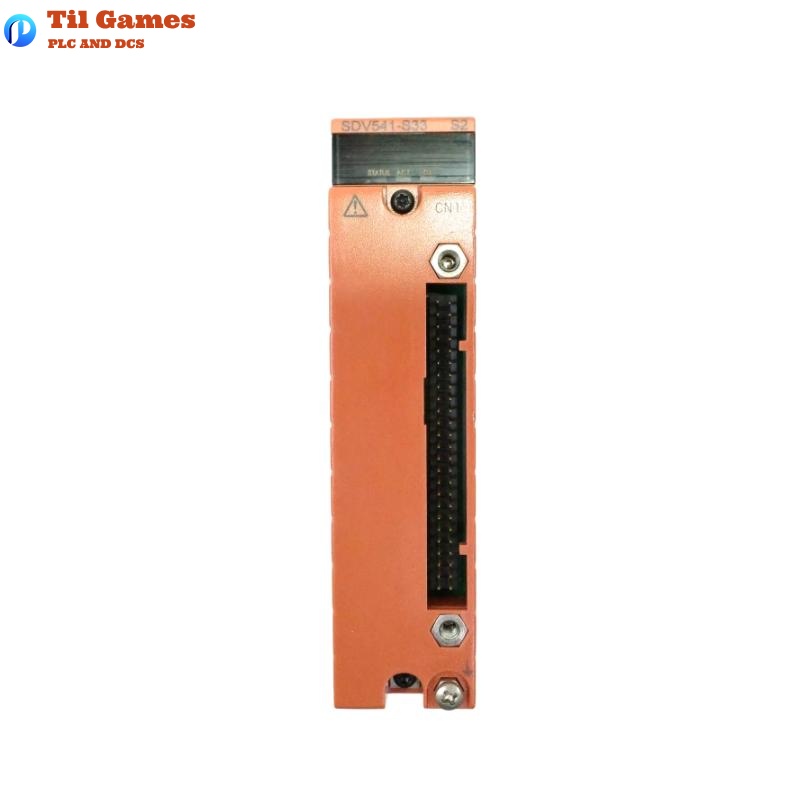

| Model | SDV541-S33 |
| Number of Outputs | 16 channels, module isolation |
| Output Voltage | 24 V DC |
| Output Voltage Drop | Max. 1 V |
| External Power Supply Rating | 24 V DC, 3.4 A minimum |
| External Power Supply Tolerance | 24 V DC +20% / -10% |
| Output Format | Current source |
| Maximum Load Current per Channel | 0.2 A (total 3.2 A) |
| Minimum Load Current per Channel | 35 mA |
| Load Resistance Range | 120 to 685 Ω |
| Output Response Time | Max. 30 ms |
| Leakage Current (Output OFF) | Max. 1.6 mA |
| Withstand Voltage | 2 kV AC between output and system (1 min) |
| Power Consumption | Max. 300 mA (5 V DC), Max. 150 mA (24 V DC) |
| External Connection | Pressure clamp terminal, MIL cable, or AKB331/AKB651 signal cable |
| Dimensions | 130 × 107.5 × 32.8 mm |
| Weight | 0.29 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the maximum output current per channel for the SDV541-S33?
A1: Each output channel can deliver up to 0.2 A, with a total maximum output current of 3.2 A.
Q2: What is the minimum load current requirement per channel?
A2: The minimum required load current for each channel is 35 mA to maintain proper operation.
Q3: Is the SDV541-S33 module electrically isolated?
A3: Yes, the module provides isolation at the channel level to prevent interference and ensure safety.
Q4: What are the power supply requirements for this module?
A4: The external power supply must be 24 V DC with a tolerance of +20% / -10% and a current capacity of at least 3.4 A.
Q5: What types of field devices can this module control?
A5: It can control devices such as relays, solenoid valves, indicator lamps, and other 24 V DC actuators.

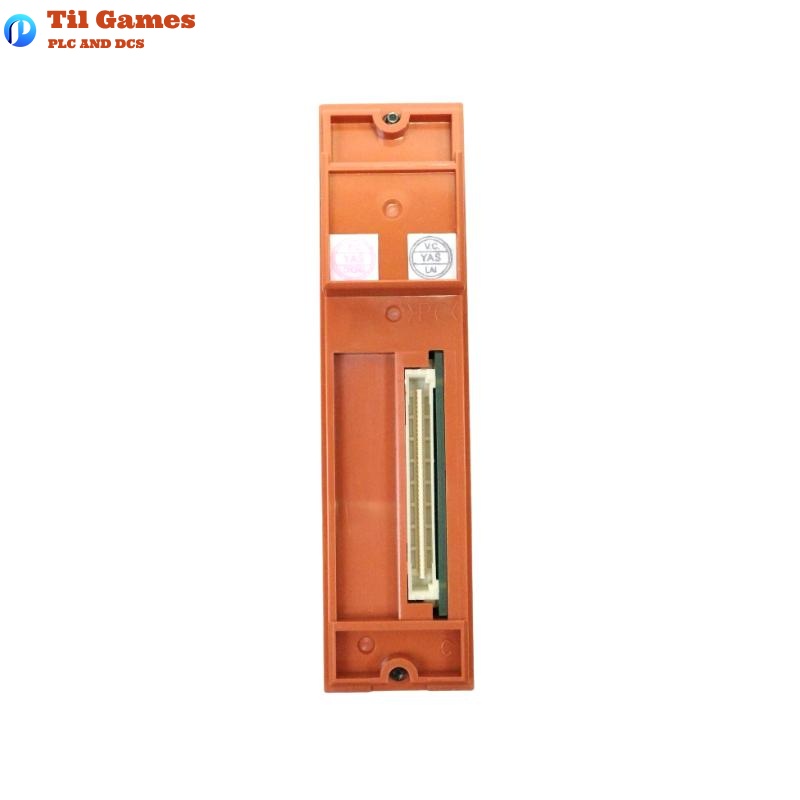

Q6: What wiring methods are supported?

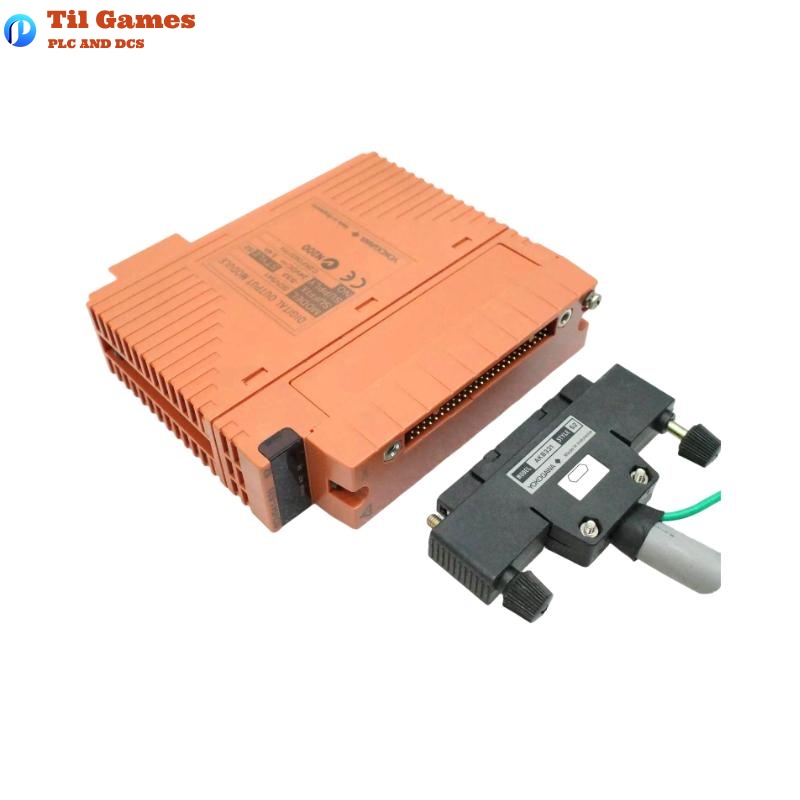

A6: The module supports pressure clamp terminal blocks, MIL connectors, and dedicated signal cables (AKB331 or AKB651).
Q7: Is there any leakage current when the output is turned off?
A7: Yes, the leakage current when the output is off is up to 1.6 mA.
Q8: Can the SDV541-S33 be used in redundant configurations?
A8: Yes, the module supports dual-redundant setups when paired with appropriate terminal blocks and cabling.
