Technical Specifications
| Item | Specification |
|---|---|

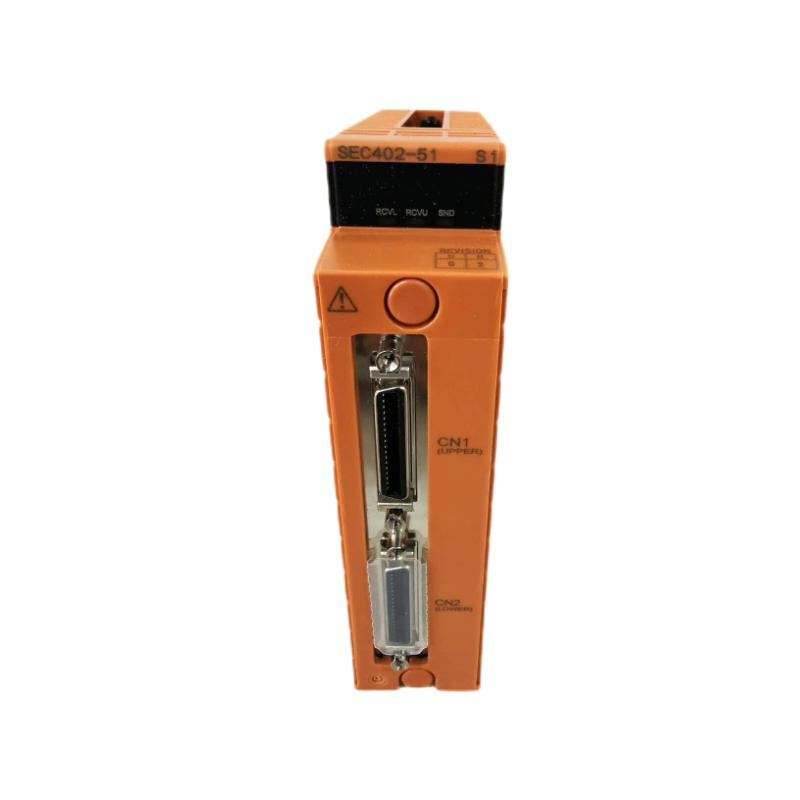

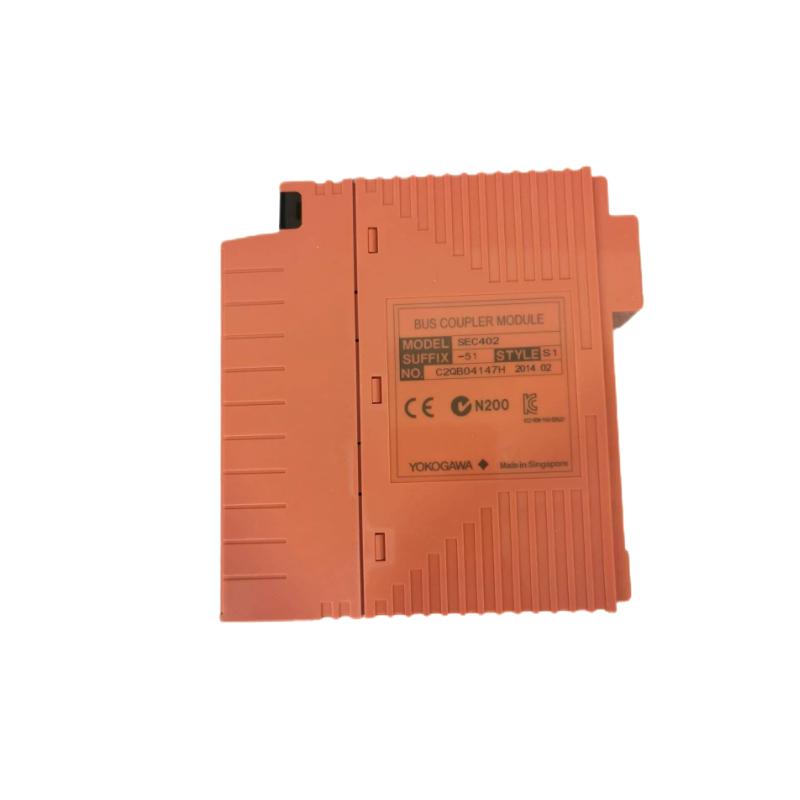

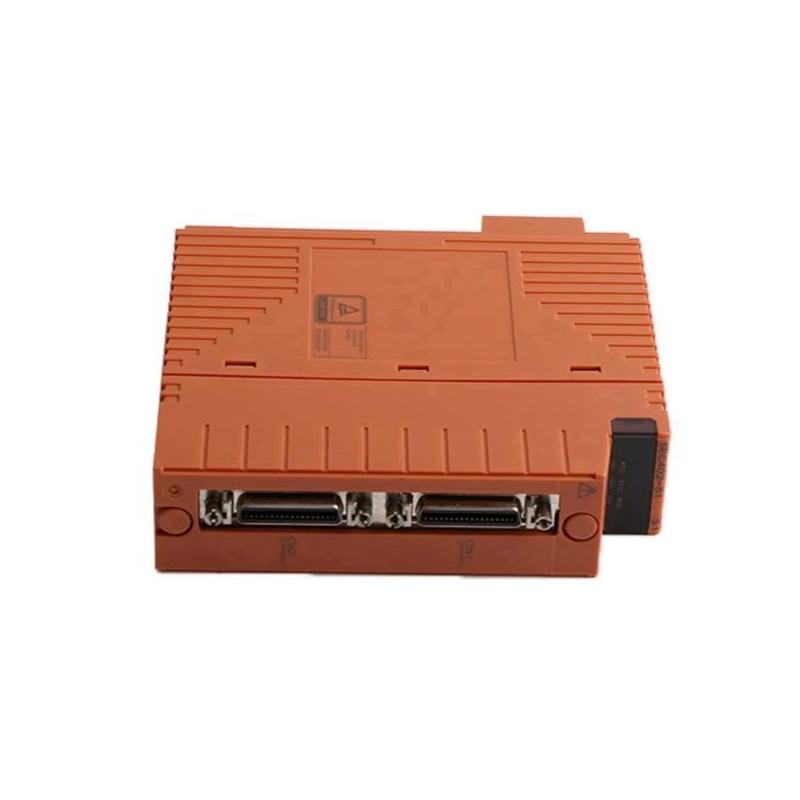

| Model | SEC402-51 S1 |
| Function | ESB bus master interface |
| Connectable Units | Up to 9 units on upper side, 9 on lower side (max 12*) |
| Transmission Speed | 128 Mbps (I/O module data transfer) |
| Transmission Range | Up to 10 m for both upper and lower ESB bus cables |
| Installation Slot | Mounted in slots 7 and 8 of the safety control unit |
| Current Consumption | 0.5 A |
| Dimensions (W x H x D) | 130 x 129.5 x 32.8 mm |
| Weight | Approx. 0.24 kg |
| Environment Class | ISA Standard G3 (with optional suffix “1”) |
| Explosion Protection | -5: Non-explosion proof, -E: Explosion-proof |
| Connection Type | Star connection supported with specific units (R4.04+) |
FAQ
Frequently Asked Questions (FAQ)
Q1: What type of bus does the SEC402-51 S1 support?
A1: It supports ESB bus, acting as a master interface between safety controllers and node units.
Q2: What is the maximum number of I/O units that can be connected?
A2: Up to 9 units per port under standard settings, and up to 12 with special configurations.
Q3: Does the module support explosion-proof environments?
A3: Yes, models with the “-E” suffix support explosion-proof specifications.
Q4: Where is the module installed in the system?
A4: It is installed in slots 7 and 8 of the safety control unit.
Q5: What is the maximum communication distance?
A5: Each ESB cable (upper and lower) supports up to 10 meters.
Q6: Is redundancy supported?
A6: Yes, redundancy can be achieved by installing multiple SEC402 modules.
Q7: Is the module compliant with industrial environmental standards?
A7: Yes, models with suffix “1” meet ISA G3 standard for harsh environments.
Q8: How to select an explosion-proof model?
A8: Specify the “-E” suffix when ordering to obtain the explosion-proof version.
