Technical Specifications
| Parameter | Description |
|---|---|

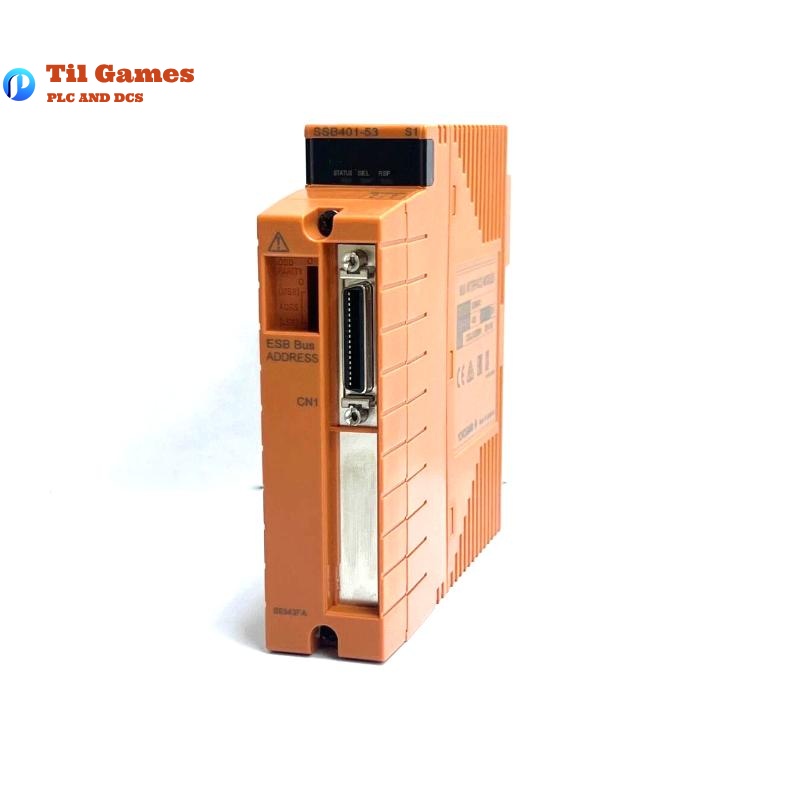

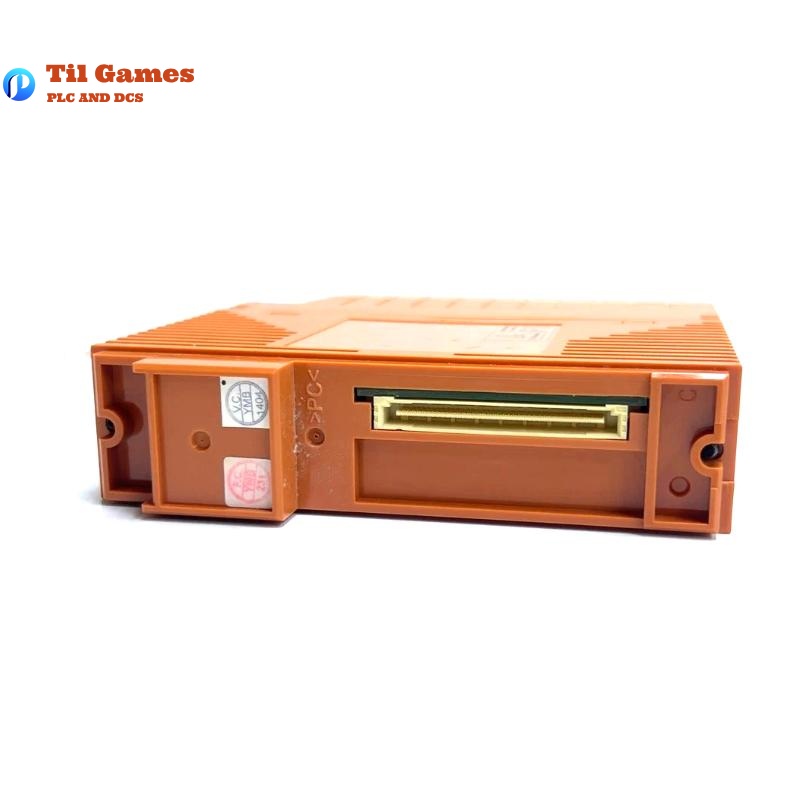

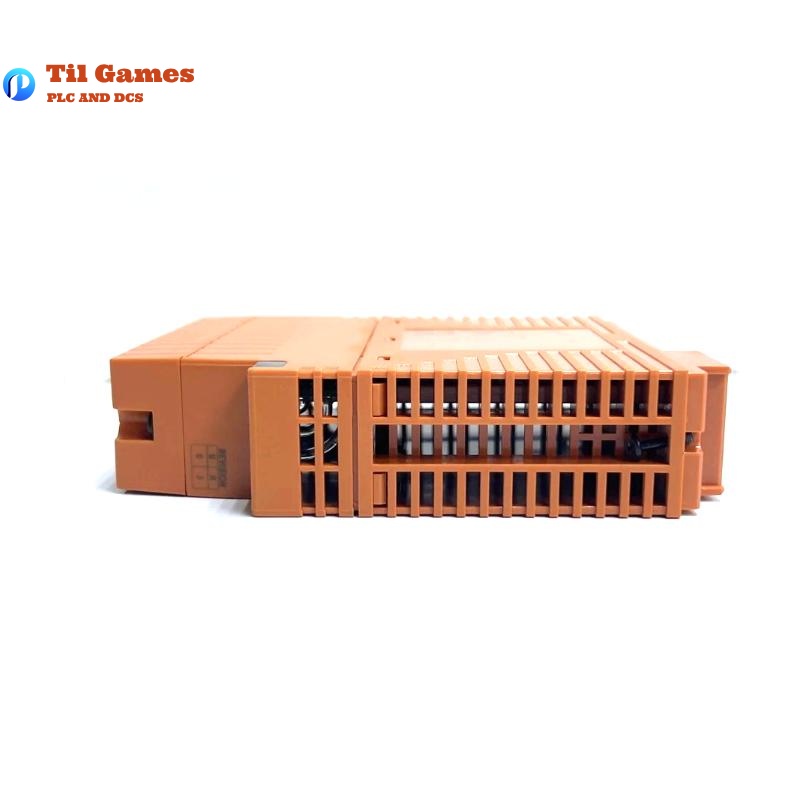

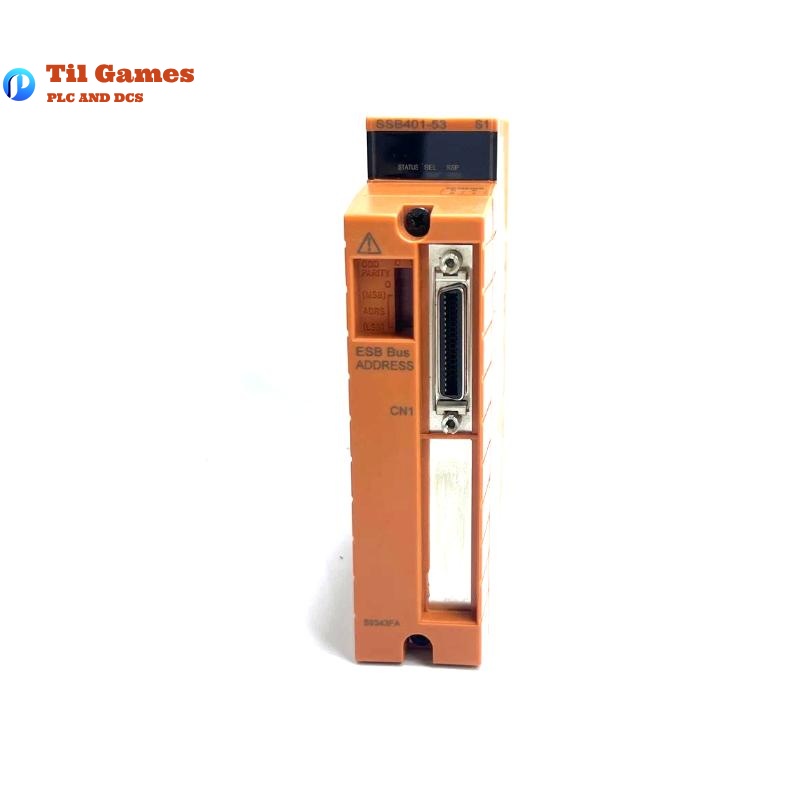

| Model | SSB401-S53 |
| Function | Connects Safety Node Unit (SNB10D) to ESB bus |
| Interface Type | ESB Bus |
| Supported Topology | Star and Chain Connections |
| Connection Stages | Maximum of two stages |
| Operating Mode | Used with Optical Repeater Modules SNT411/SNT511 |
| Current Consumption | Up to 0.5 A |
| Installation Requirements | Requires specific ambient temperature and ventilation |
| System Compatibility | Compatible with SCS R1.03 and later |
| Dimensions | 32 x 127 x 127 mm |
| Weight | 0.35 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the purpose of the SSB401-S53 module?
A1: It connects the Safety Node Unit (SNB10D) to the ESB bus for communication.
Q2: Can the SSB401-S53 operate independently?
A2: No, it must be used in conjunction with SNT411 or SNT511 optical repeater modules.
Q3: What types of network topologies are supported?
A3: Both star and chain connection types are supported.
Q4: How many stages of connection does it support?
A4: It supports a maximum of two stages to maintain signal quality.
Q5: Are there temperature restrictions for installation?
A5: Yes, it should be used within the range of –20°C to 70°C.
Q6: Is redundancy supported by this module?
A6: Yes, it supports redundant configuration in SCS systems.
Q7: Where is the module mounted?
A7: It is mounted on the SNB10D or on an optical repeater rack like SNT10D.
Q8: What precautions should be taken when using this module?
A8: Ensure spacing from the power supply module and follow the slot installation instructions in the manual.
